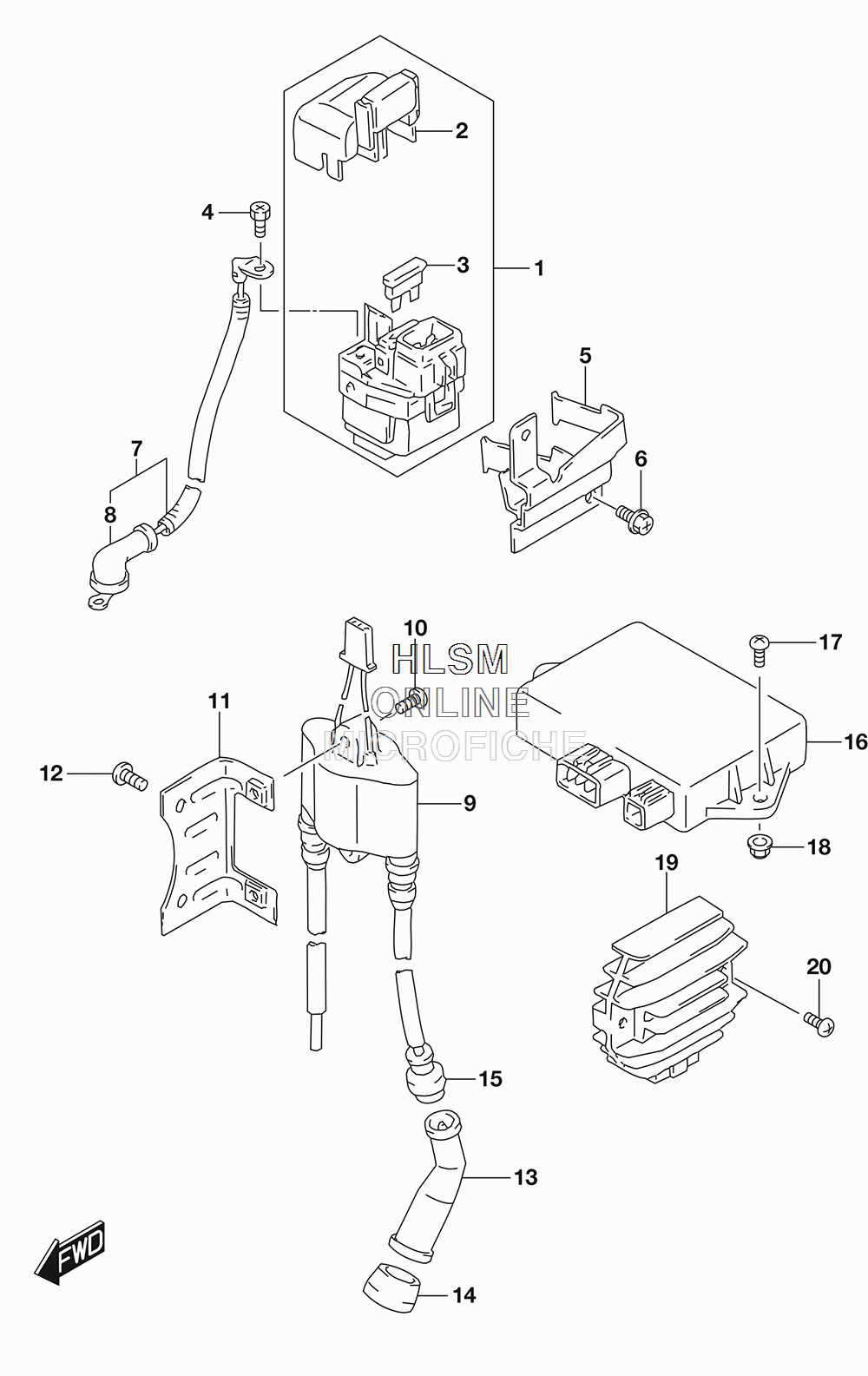

ELECTRICAL для Suzuki DR650S - 2017 года выпуска
-
№АртикулНазвание
-
131800-26E00 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
231861-26E00 ...COVER ASSY...COVER ASSY
-
309481-30101 ...FUSE (30A)...FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
531890-32E00 BRACKET, STARTING MOTOR RELAYBRACKET, STARTING MOTOR RELAY
-
602162-0608A SCREWSCREW
-
733810-32E00 LEAD WIRE, STARTING MOTORLEAD WIRE, STARTING MOTOR
-
831861-48B10 ...CAP, STARTER MOTOR...CAP, STARTER MOTOR
-
933410-32E00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1002142-0625A SCREWSCREW
-
1133416-32E00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
1202142-0610A SCREWSCREW
-
1333510-43010 CAP, SPARK PLUG OUTERCAP, SPARK PLUG OUTER
-
1433541-47D00 SEAL, PLUGSEAL, PLUG
-
1533542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1632900-32E10 CDI UNITCDI UNIT
-
1702162-0620B SCREWSCREW
-
1808319-3106B NUTNUT
-
1932800-32E00 RECTIFIER ASSYRECTIFIER ASSY
-
2002162-0620B SCREWSCREW
