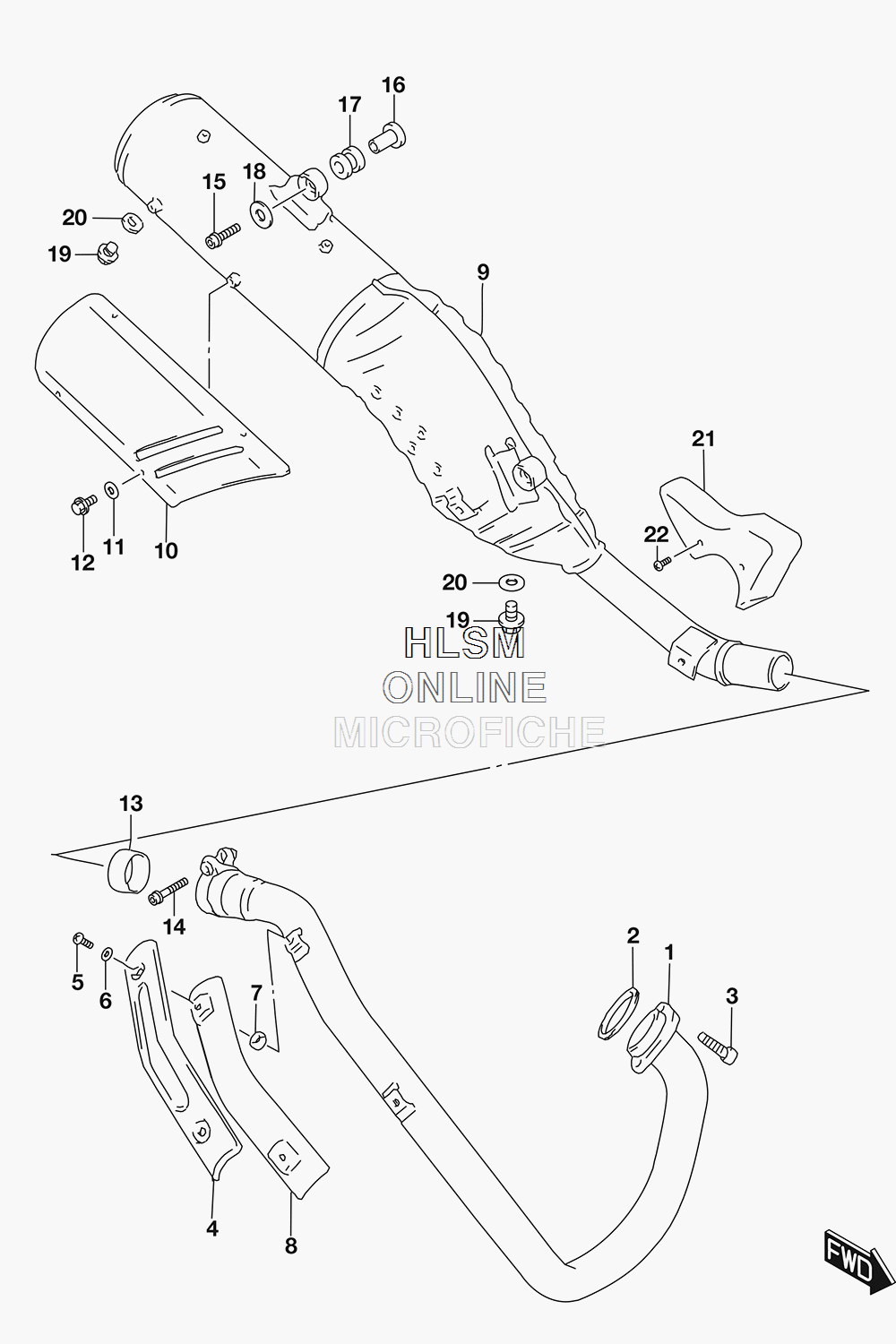

MUFFLER для Suzuki DR650S - 2017 года выпуска
-
№АртикулНазвание
-
114150-32E20 PIPE, EXHAUSTPIPE, EXHAUST
-
214181-22D01 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
307130-0825A BOLTBOLT
-
414180-32E00 COVER, EXHAUST PIPECOVER, EXHAUST PIPE
-
509139-06091 SCREW (6X12)SCREW (6X12)
-
609160-06082 WASHER (6.5X13X1.0)WASHER (6.5X13X1.0)
-
709168-06122 GASKET (6X16X1.4)GASKET (6X16X1.4)
-
814186-32E00 COVER, EXHAUST PIPE INNERCOVER, EXHAUST PIPE INNER
-
914310-32E31-H01 BODY, MUFFLERBODY, MUFFLER
-
1014781-32E00 COVER, MUFFLERCOVER, MUFFLER
-
1109160-06082 WASHER (6.5X13X1.0)WASHER (6.5X13X1.0)
-
1209139-06078 SCREW (6X10)SCREW (6X10)
-
1314771-32E00 CONNECTORCONNECTOR
-
1407120-0835A BOLTBOLT
-
1509106-08193 BOLT (8X30)BOLT (8X30)
-
1609180-08151 SPACER (8.6X12X17.5)SPACER (8.6X12X17.5)
-
1709320-12043 CUSHIONCUSHION
-
1809160-08135 WASHER (8.5X28X1.6)WASHER (8.5X28X1.6)
-
1909247-12104 PLUG (12X9)PLUG (12X9)
-
2009168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
2114782-32E00 COVER, CONNECTOR CLAMPCOVER, CONNECTOR CLAMP
-
2209139-06078 SCREW (6X10)SCREW (6X10)
