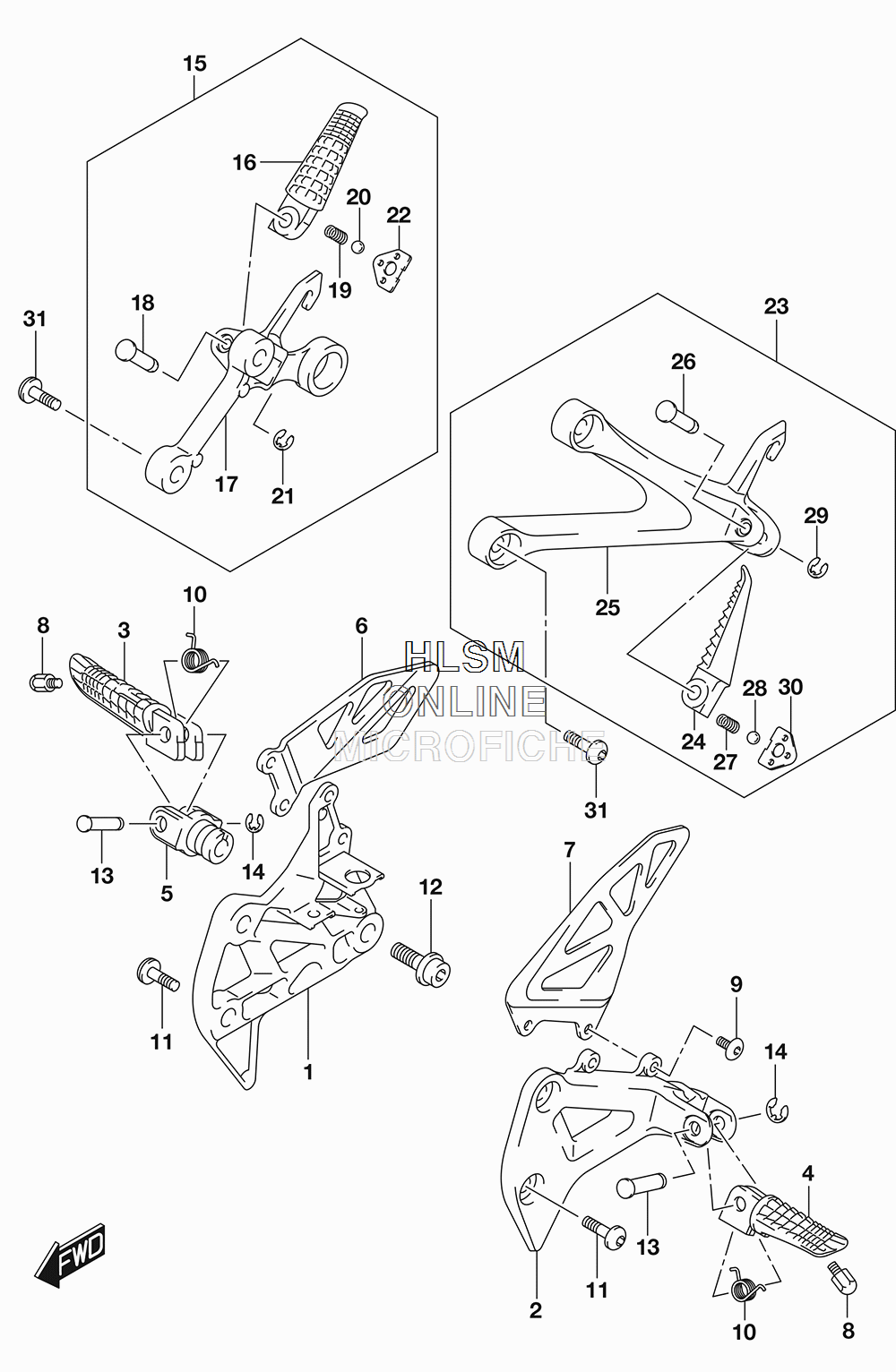

FOOTREST для Suzuki GSX-R1000RZ - 2017 года выпуска
-
№АртикулНазвание
-
143511-17K00 BRACKET, FRONT FOOTREST (RH)BRACKET, FRONT FOOTREST (RH)
-
243521-17K00 BRACKET, FRONT FOOTREST (LH)BRACKET, FRONT FOOTREST (LH)
-
343516-37H10 BAR, FOOTREST (RH)BAR, FOOTREST (RH)
-
443526-37H10 BAR, FOOTREST (LH)BAR, FOOTREST (LH)
-
543531-41G20 HOLDER, FOOTRESTHOLDER, FOOTREST
-
643571-17K00 GUARD, FOOTREST (RH)GUARD, FOOTREST (RH)
-
743576-17K00 GUARD, FOOTREST (LH)GUARD, FOOTREST (LH)
-
843576-48B40 BOLT, BANK SENSORBOLT, BANK SENSOR
-
943577-35F10 SCREW, FOOTREST GUARD (LH)SCREW, FOOTREST GUARD (LH)
-
1043581-47H00 SPRING, FRONT FOOTRESTSPRING, FRONT FOOTREST
-
1109106-08186 BOLT (8X23)BOLT (8X23)
-
1209106-10064 BOLT (10X28)BOLT (10X28)
-
1309208-08018 PINPIN
-
1408332-1106A E RINGE RING
-
1543600-17K00 FOOTREST ASSY, PILLION (RH)FOOTREST ASSY, PILLION (RH)
-
1643611-37H30 ...BAR, PILLION FOOTREST (RH)...BAR, PILLION FOOTREST (RH)
-
1743811-17K00 ...BRACKET, PILLION FOOTREST (RH)...BRACKET, PILLION FOOTREST (RH)
-
1809208-08020 ...PIN...PIN
-
1909440-05005 ...SPRING...SPRING
-
2006111-07004 ...BALL...BALL
-
2108332-1106A ...E RING...E RING
-
2243816-01H20 ...PLATE, PILLION FOOTREST...PLATE, PILLION FOOTREST
-
2343700-17K00 FOOTREST ASSY, PILLION (LH)FOOTREST ASSY, PILLION (LH)
-
2443621-37H30 ...BAR, PILLION FOOTREST (LH)...BAR, PILLION FOOTREST (LH)
-
2543821-17K00 ...BRACKET, PILLION FOOTREST (LH)...BRACKET, PILLION FOOTREST (LH)
-
2609208-08020 ...PIN...PIN
-
2709440-05005 ...SPRING...SPRING
-
2806111-07004 ...BALL...BALL
-
2908332-1106A ...E RING...E RING
-
3043816-01H20 ...PLATE, PILLION FOOTREST...PLATE, PILLION FOOTREST
-
3109106-08186 BOLT (8X23)BOLT (8X23)
