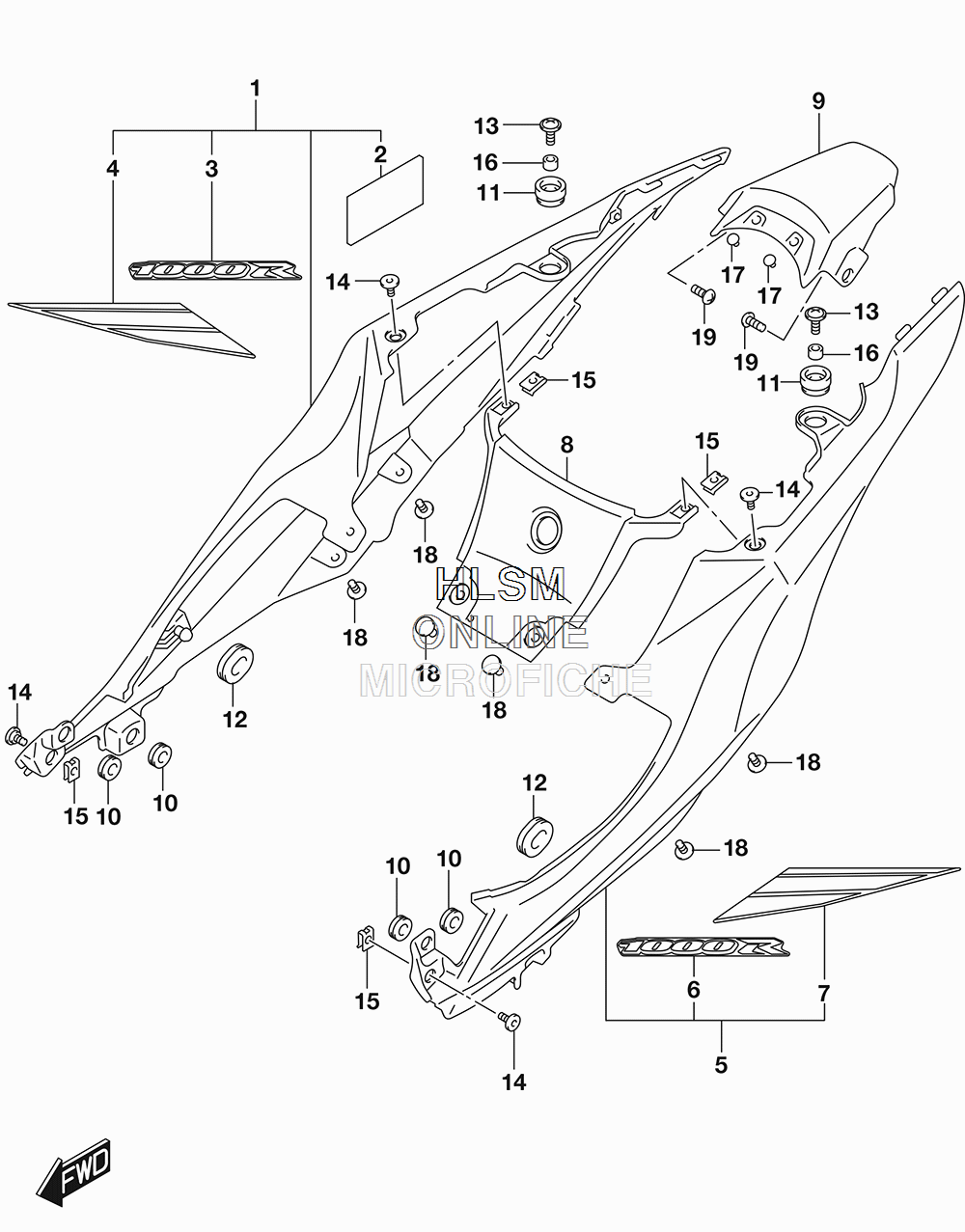

FRAME COVER (CALIF.) для Suzuki GSX-R1000RZ - 2017 года выпуска
-
№АртикулНазвание
-
147110-17K20-YVB COVER, FRAME (RH) (YVB - BLACK)COVER, FRAME (RH) (YVB - BLACK)
-
233652-17K10 ...CUSHION...CUSHION
-
368131-17K00-BKN ...EMBLEM, FRAME COVER (BKN - BLACK/ORANGE/SILVER/BLACK)...EMBLEM, FRAME COVER (BKN - BLACK/ORANGE/SILVER/BLACK)
-
468135-17K20-BKM ...TAPE, FRAME COVER (RH) (BKM - SILVER/BLUE/BLUE/BLACK)...TAPE, FRAME COVER (RH) (BKM - SILVER/BLUE/BLUE/BLACK)
-
547210-17K20-YVB COVER, FRAME (LH) (YVB - BLACK)COVER, FRAME (LH) (YVB - BLACK)
-
668131-17K00-BKN ...EMBLEM, FRAME COVER (BKN - BLACK/ORANGE/SILVER/BLACK)...EMBLEM, FRAME COVER (BKN - BLACK/ORANGE/SILVER/BLACK)
-
768145-17K20-BKM ...TAPE, FRAME COVER (LH) (BKM - SILVER/BLUE/BLUE/BLACK)...TAPE, FRAME COVER (LH) (BKM - SILVER/BLUE/BLUE/BLACK)
-
847311-17K00 COVER, FRAME CENTER FRONTCOVER, FRAME CENTER FRONT
-
947411-17K00-YVB COVER, FRAME CENTER REAR (YVB - BLACK)COVER, FRAME CENTER REAR (YVB - BLACK)
-
1044173-14J00 CUSHIONCUSHION
-
1147312-37H00 CUSHION, FRAME COVER RRCUSHION, FRAME COVER RR
-
1294478-14J00 CUSHION, FRAME COVERCUSHION, FRAME COVER
-
1309139-06139 SCREW (6X16)SCREW (6X16)
-
1409139-05092 SCREWSCREW
-
1509148-05052 NUTNUT
-
1609180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
1709250-06012 PLUG (OD:10)PLUG (OD:10)
-
1809409-06328 CLIPCLIP
-
1903541-0516A SCREWSCREW
