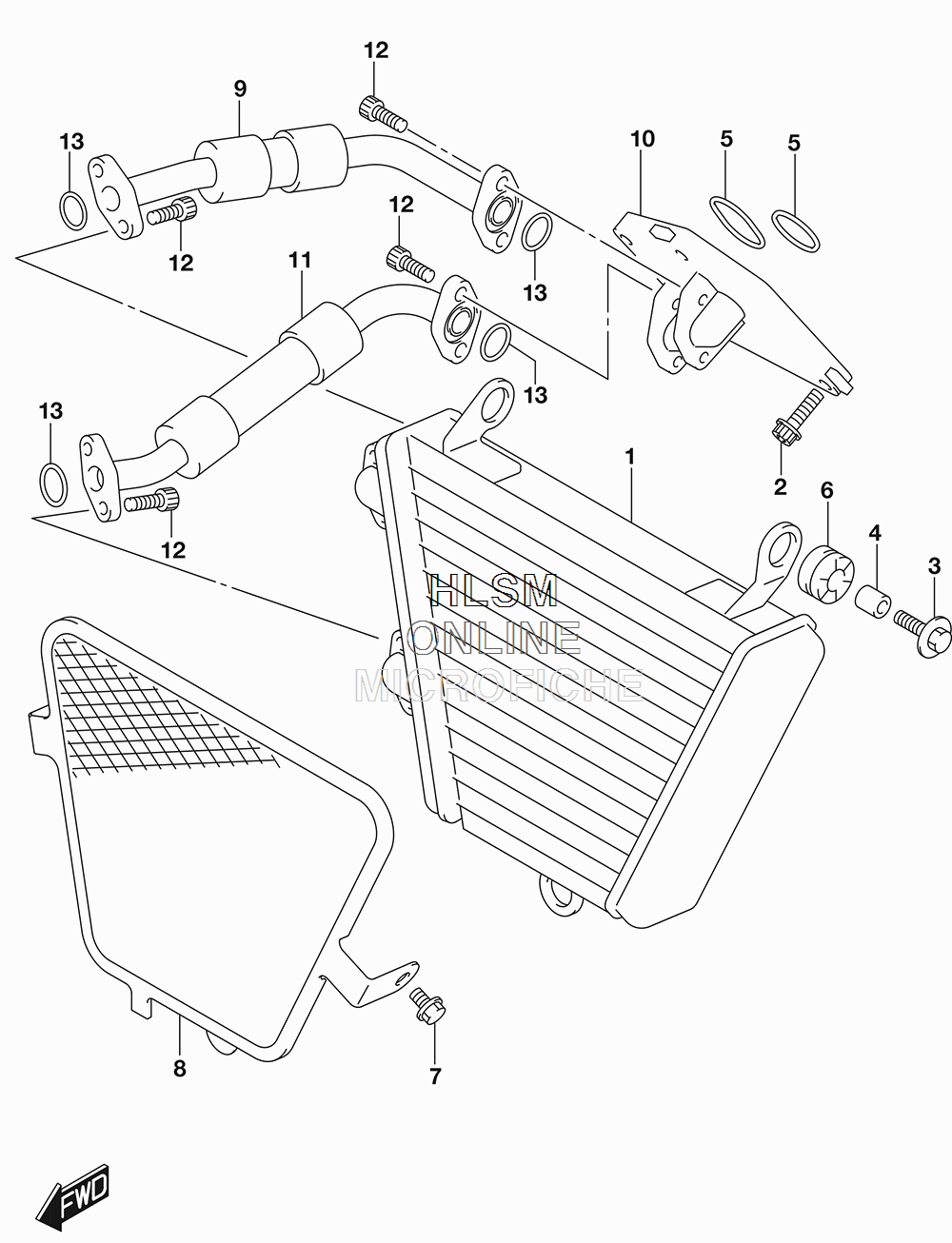

OIL COOLER для Suzuki GSX-R1000RZ - 2017 года выпуска
-
№АртикулНазвание
-
116600-47H20 COOLER ASSY, OILCOOLER ASSY, OIL
-
209116-06514 BOLTBOLT
-
309118-06122 BOLT (6X25)BOLT (6X25)
-
409180-06290 SPACER (6.5X10X12)SPACER (6.5X10X12)
-
509280-33006 O RINGO RING
-
609320-10051 CUSHIONCUSHION
-
701550-0610A BOLTBOLT
-
816650-47H20 GUARD, OIL COOLERGUARD, OIL COOLER
-
916460-17K00 HOSE, OIL COOLER INLETHOSE, OIL COOLER INLET
-
1016469-17K00 PLATE, OIL HOSEPLATE, OIL HOSE
-
1116470-17K00 HOSE, OIL COOLER OUTLETHOSE, OIL COOLER OUTLET
-
1209106-06073 BOLT (6X16)BOLT (6X16)
-
1309280-15015 O RING (D:2.4,ID:16)O RING (D:2.4,ID:16)
