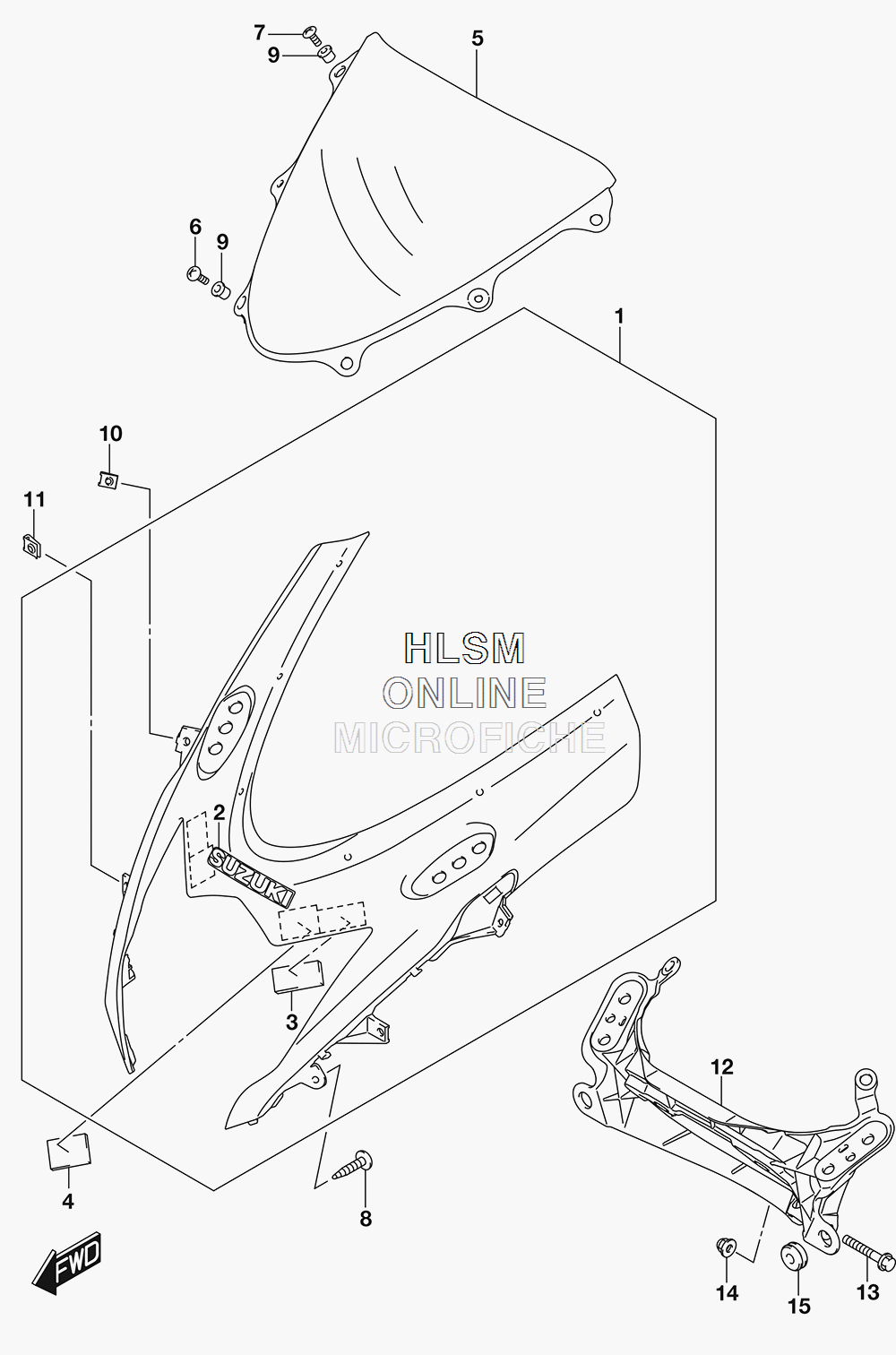

COWLING BODY для Suzuki GSX-R600 - 2017 года выпуска
-
№АртикулНазвание
-
1-194410-14J10-6CX BODY, COWLING (6CX - BLUE FOR YSF)BODY, COWLING (6CX - BLUE FOR YSF)
-
1-294410-14J10-4UX BODY, COWLING (4UX - BLACK FOR YKV)BODY, COWLING (4UX - BLACK FOR YKV)
-
1-394410-14J10-YVB BODY, COWLING (YVB - BLACK FOR KGK)BODY, COWLING (YVB - BLACK FOR KGK)
-
2-168641-19F00-YWW ...EMBLEM (YWW - WHITE FOR REF 1-1 6CX - BLUE FOR YSF))...EMBLEM (YWW - WHITE FOR REF 1-1 6CX - BLUE FOR YSF))
-
2-268641-19F00-BE4 ...EMBLEM (BE4 - RED/BLACK FOR 4UX - BLACK FOR YKV)...EMBLEM (BE4 - RED/BLACK FOR 4UX - BLACK FOR YKV)
-
2-368641-19F00-17U ...EMBLEM (17U - GRAY FOR YVB - BLACK FOR KGK)...EMBLEM (17U - GRAY FOR YVB - BLACK FOR KGK)
-
392146-14J00 ...CUSHION...CUSHION
-
444572-02F01 FASTENERFASTENER
-
594611-14J00 WINDSCREENWINDSCREEN
-
609125-05133 SCREW (5X18)SCREW (5X18)
-
709125-05134 SCREW (5X15)SCREW (5X15)
-
803541-0516A SCREWSCREW
-
909159-05019 NUTNUT
-
1009148-05052 NUTNUT
-
1109148-05047 NUTNUT
-
1294511-14J00 BRACE, COWLINGBRACE, COWLING
-
1309103-08207 BOLT (8X45)BOLT (8X45)
-
1408313-2008A NUTNUT
-
1509320-08047 CUSHIONCUSHION
