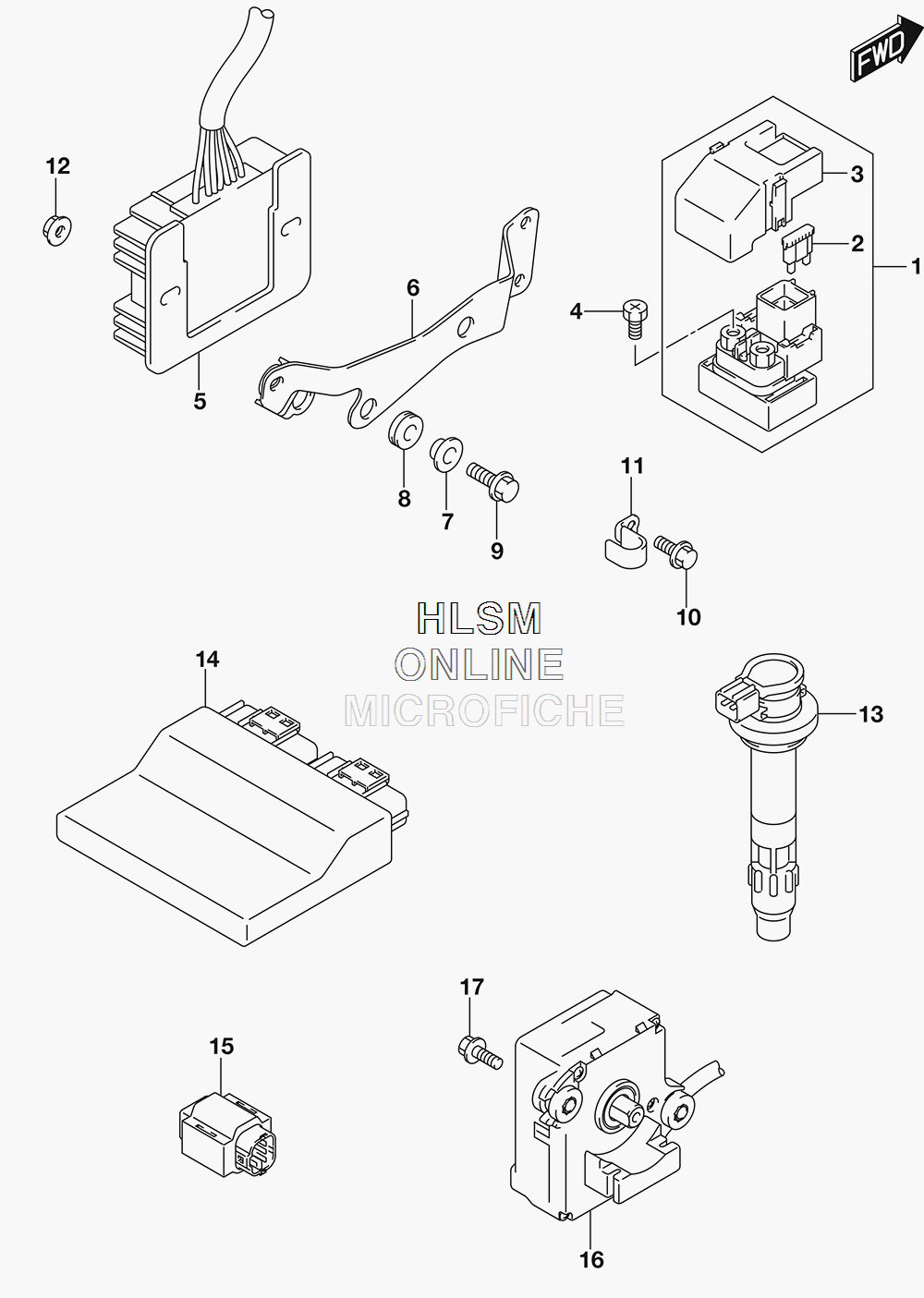

ELECTRICAL (CANADA) для Suzuki GSX-R600 - 2017 года выпуска
-
№АртикулНазвание
-
131800-06G00 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
209481-30101 ...FUSE (30A)...FUSE (30A)
-
331861-47E00 ...COVER, STARTER...COVER, STARTER
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-47H00 RECTIFIER ASSYRECTIFIER ASSY
-
632830-14J00 BRACKET, RECTIFIERBRACKET, RECTIFIER
-
709180-06325 SPACER (6.2X8.4X6.9)SPACER (6.2X8.4X6.9)
-
809320-08066 CUSHIONCUSHION
-
909116-06182 BOLT (6X20)BOLT (6X20)
-
1001550-0616A BOLTBOLT
-
1109404-06433 CLAMP (L:80)CLAMP (L:80)
-
1208316-1006A NUTNUT
-
1333410-37H00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1432920-14J80 CONTROL UNIT, FICONTROL UNIT, FI
-
1533960-27G00 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
1633970-47H01 ACTUATOR ASSY, EXHAUST CONTROACTUATOR ASSY, EXHAUST CONTRO
-
1709116-06148 BOLT (6X32.5)BOLT (6X32.5)
