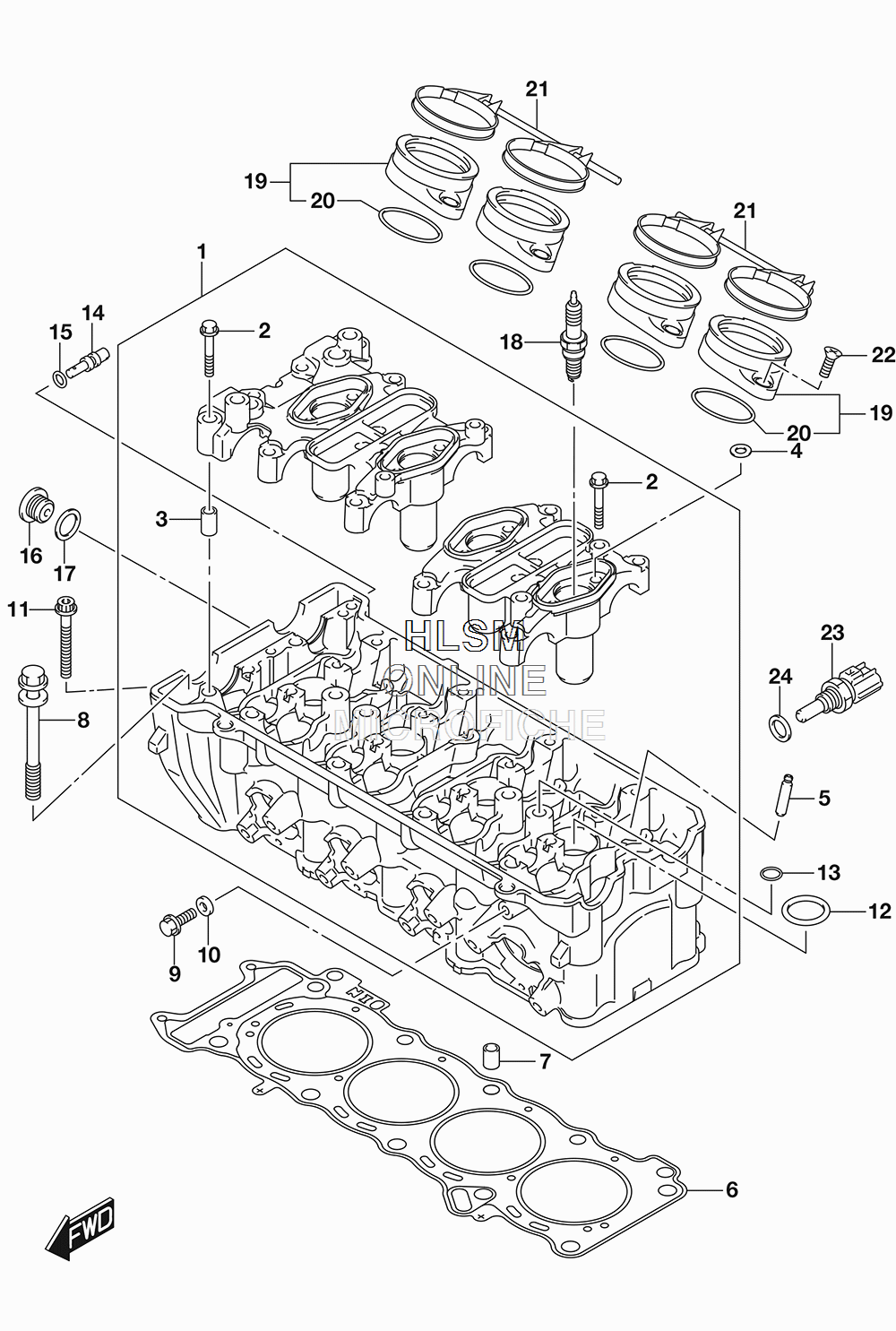

CYLINDER HEAD для Suzuki GSX-R600 - 2017 года выпуска
-
№АртикулНазвание
-
111100-37H00 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209103-06266 ...BOLT (6X40)...BOLT (6X40)
-
309206-08007 ...PIN (6.2X8X16)...PIN (6.2X8X16)
-
409168-06018 GASKET (6.2X13X1.2)GASKET (6.2X13X1.2)
-
511115-29G70 GUIDE, VALVE (OS 0.3) (OPT)GUIDE, VALVE (OS 0.3) (OPT)
-
611141-37H00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
704211-11169 PINPIN
-
811117-29G00 BOLT (10X95)BOLT (10X95)
-
901550-0612A BOLTBOLT
-
1009168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1107120-0650A BOLTBOLT
-
1211179-81402 O RING, SPARK PLUG PIPEO RING, SPARK PLUG PIPE
-
1309280-11001 O RING (D:2.4,ID:10.8)O RING (D:2.4,ID:10.8)
-
1409493-80005 JET, OIL GALLERY (8)JET, OIL GALLERY (8)
-
1509280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
1609248-16012 PLUG (16X8)PLUG (16X8)
-
1709168-16009 GASKET (16X22X0.8)GASKET (16X22X0.8)
-
18-109482-00558 SPARK PLUG (NGK,CR9EIA-9)SPARK PLUG (NGK,CR9EIA-9)
-
18-209482-00557 SPARK PLUG (DENSO,IU27D)SPARK PLUG (DENSO,IU27D)
-
18-309482-00556 SPARK PLUG (NGK,CR8EIA-9) (OPT)SPARK PLUG (NGK,CR8EIA-9) (OPT)
-
18-409482-00560 SPARK PLUG (NGK,CR10EIA-9) (OPT)SPARK PLUG (NGK,CR10EIA-9) (OPT)
-
18-509482-00555 SPARK PLUG (DENSO,IU24D) (OPT)SPARK PLUG (DENSO,IU24D) (OPT)
-
18-609482-00559 SPARK PLUG (DENSO,IU31D) (OPT)SPARK PLUG (DENSO,IU31D) (OPT)
-
1913101-14J00 PIPE, INTAKEPIPE, INTAKE
-
2009280-42003 ...O RING (D:2.4,ID:41.7)...O RING (D:2.4,ID:41.7)
-
2113826-02H12 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
-
2209120-06007 BOLT (6X18.4)BOLT (6X18.4)
-
2313650-49X00 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
2409168-12017 GASKET (12X17X1)GASKET (12X17X1)
