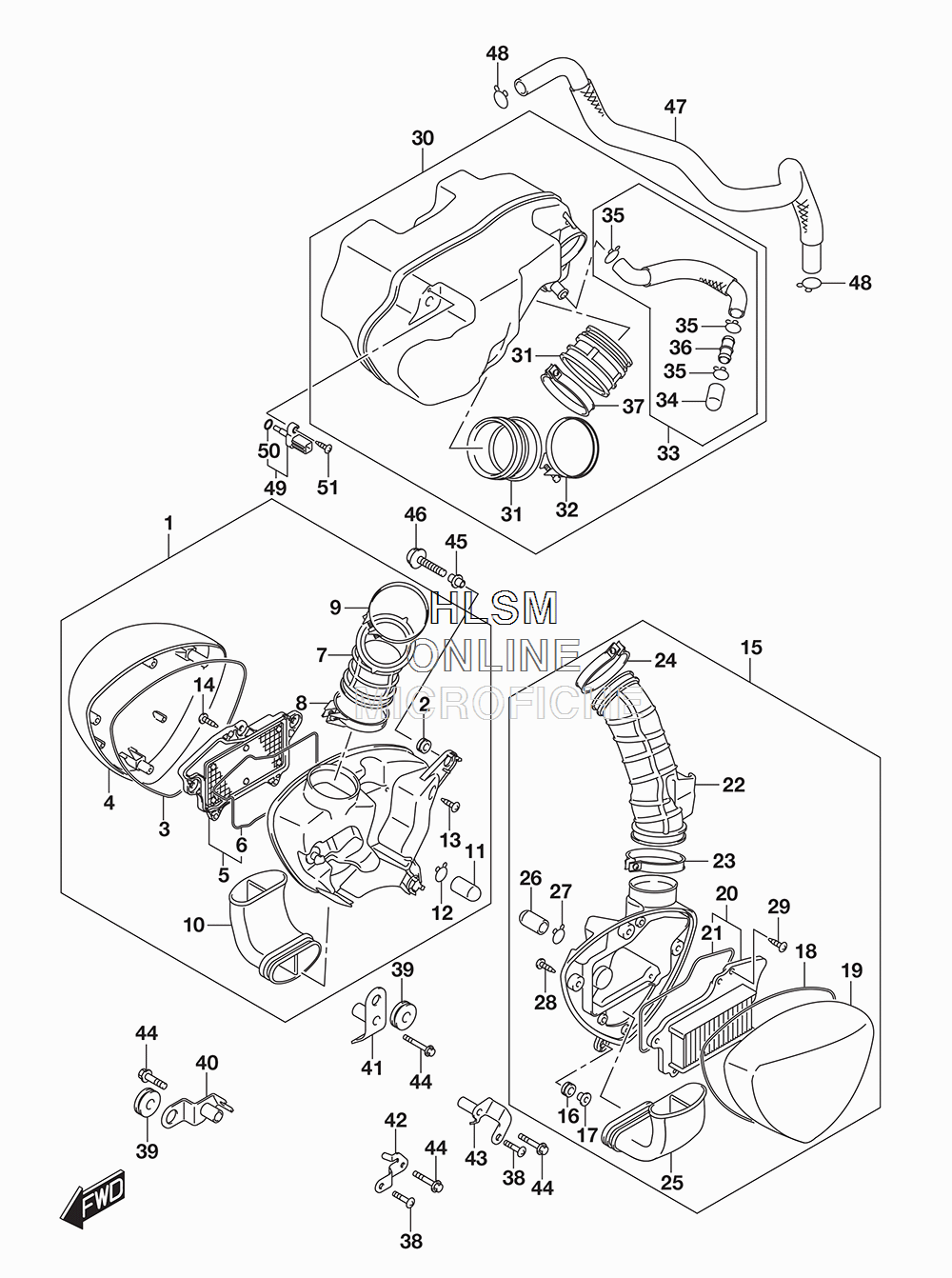

AIR CLEANER (EXCEPT CALIF.) для Suzuki VL1500B C90 B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
113701-40HB0 CLEANER, AIR (RH)CLEANER, AIR (RH)
-
209320-09016 ...CUSHION...CUSHION
-
313756-40H00 ...GASKET...GASKET
-
413741-40HB0 ...CAP, AIR CLEANER...CAP, AIR CLEANER
-
513780-40H00 ...FILTER ASSY...FILTER ASSY
-
613787-40H00 ......GASKET......GASKET
-
713738-40H00 ...TUBE, JOINT (RH)...TUBE, JOINT (RH)
-
813826-40HA0 ...CLAMP...CLAMP
-
913826-40H00 ...CLAMP...CLAMP
-
1013891-40H01 ...TUBE, INLET...TUBE, INLET
-
1113878-09F00 ...PLUG, DRAIN...PLUG, DRAIN
-
1209401-14101 ...CLIP...CLIP
-
1303211-0520A ...SCREW...SCREW
-
1403541-0516A ...SCREW...SCREW
-
1513702-40HB0 CLEANER, AIR (LH)CLEANER, AIR (LH)
-
1609320-09016 ...CUSHION...CUSHION
-
1713812-29C50 ...COLLAR...COLLAR
-
1813756-40H00 ...GASKET...GASKET
-
1913741-40HB0 ...CAP, AIR CLEANER...CAP, AIR CLEANER
-
2013780-40H00 ...FILTER ASSY...FILTER ASSY
-
2113787-40H00 ......GASKET......GASKET
-
2213739-40H00 ...TUBE, JOINT (LH)...TUBE, JOINT (LH)
-
2313826-40HA0 ...CLAMP...CLAMP
-
2413827-40H01 ...CLAMP...CLAMP
-
2513891-40H01 ...TUBE, INLET...TUBE, INLET
-
2613878-09F00 ...PLUG, DRAIN...PLUG, DRAIN
-
2709401-14101 ...CLIP...CLIP
-
2803211-0520A ...SCREW...SCREW
-
2903541-0516A ...SCREW...SCREW
-
3013710-40H01 CHAMBER, AIR CLEANERCHAMBER, AIR CLEANER
-
3113881-40H01 ...TUBE, OUTLET...TUBE, OUTLET
-
3213170-39H00 ...CLAMP...CLAMP
-
3313870-40H00 ...TUBE, DRAIN...TUBE, DRAIN
-
3413859-41B10 ......PLUG, DRAIN TUBE......PLUG, DRAIN TUBE
-
3509401-14101 ......CLIP......CLIP
-
3613888-19B00 ......JOINT......JOINT
-
3713826-40HB0 ...CLAMP...CLAMP
-
3809139-06056 SCREW (6X20)SCREW (6X20)
-
3909320-08028 CUSHIONCUSHION
-
4013760-40H00 BRACKET (RH) NO.1BRACKET (RH) NO.1
-
4113770-40H00 BRACKET (LH) NO.1BRACKET (LH) NO.1
-
4213770-40H11 BRACKET (LH) NO.2BRACKET (LH) NO.2
-
4313770-40H20 BRACKET (LH) NO.3BRACKET (LH) NO.3
-
4409103-06509 BOLT (6X30)BOLT (6X30)
-
4513838-40H00 SPACERSPACER
-
4609136-06167 SCREW (6X35)SCREW (6X35)
-
4713850-40H00 TUBE, BREATHERTUBE, BREATHER
-
4809401-20405 CLIPCLIP
-
4913650-41F10 SENSOR, AIR TEMPSENSOR, AIR TEMP
-
5013655-41F10 ...O RING...O RING
-
5103511-0516B SCREWSCREW
