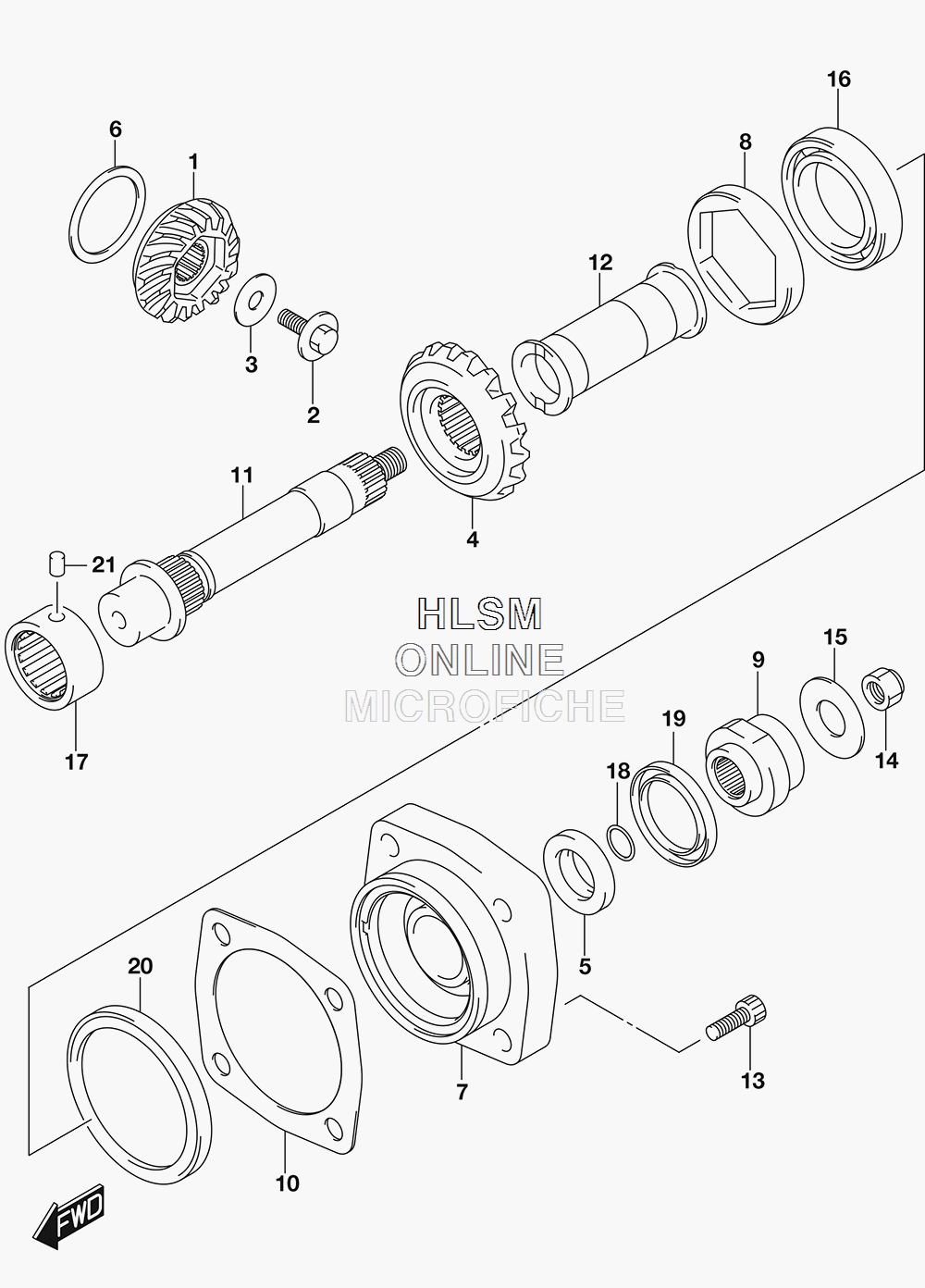

SECONDARY DRIVE GEAR для Suzuki VL1500B C90 B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
124911-40H00 GEAR, SECONDARY DRIVE (NT:17)GEAR, SECONDARY DRIVE (NT:17)
-
224912-06J00 BOLT, SECONDARY DRIVE GEARBOLT, SECONDARY DRIVE GEAR
-
308211-12343 WASHERWASHER
-
424921-40H00 GEAR, SECONDARY DRIVEN (NT:20GEAR, SECONDARY DRIVEN (NT:20
-
521102-31G00 SPACER, SECONDARY SHAFTSPACER, SECONDARY SHAFT
-
624935-40820 SHIM SET, SECONDARY DRIVE (T:0.80/0.85/0.90/0.95/1.00/ 1.05/1.10/1.15/1.20)SHIM SET, SECONDARY DRIVE (T:0.80/0.85/0.90/0.95/1.00/ 1.05/1.10/1.15/1.20)
-
724941-40H00 HOUSING, SEC DRIVEN BEARINGHOUSING, SEC DRIVEN BEARING
-
824942-26D00 STOPPER, SEC DRIVEN BEARINGSTOPPER, SEC DRIVEN BEARING
-
924943-40H00 COUPLING, SEC DRIVEN BEVELCOUPLING, SEC DRIVEN BEVEL
-
1024945-40810 SHIM SET, SECONDARY DRIVEN (T:0.30/0.35/0.40/0.50/0.60)SHIM SET, SECONDARY DRIVEN (T:0.30/0.35/0.40/0.50/0.60)
-
1124961-40H00 SHAFT, SECONDARY DRIVEN BEVELSHAFT, SECONDARY DRIVEN BEVEL
-
1224962-40H00 SPACER, SECONDARY DRIVEN BEVESPACER, SECONDARY DRIVEN BEVE
-
1309106-10087 BOLT (10X30)BOLT (10X30)
-
1409159-16003 NUTNUT
-
1509160-16040 WASHER (16.5X36X4)WASHER (16.5X36X4)
-
1609262-28014 BEARING (28X68X18) (REAR)BEARING (28X68X18) (REAR)
-
1709263-32021 BEARING (32X50X22) (FRONT)BEARING (32X50X22) (FRONT)
-
1809280-25004 O RING (D:2.4,ID:24.7)O RING (D:2.4,ID:24.7)
-
1909283-38011 OIL SEAL (38X54X6)OIL SEAL (38X54X6)
-
2009286-84001 OIL SEAL (76X84X7)OIL SEAL (76X84X7)
-
2109202-07005 PIN (7X12)PIN (7X12)
