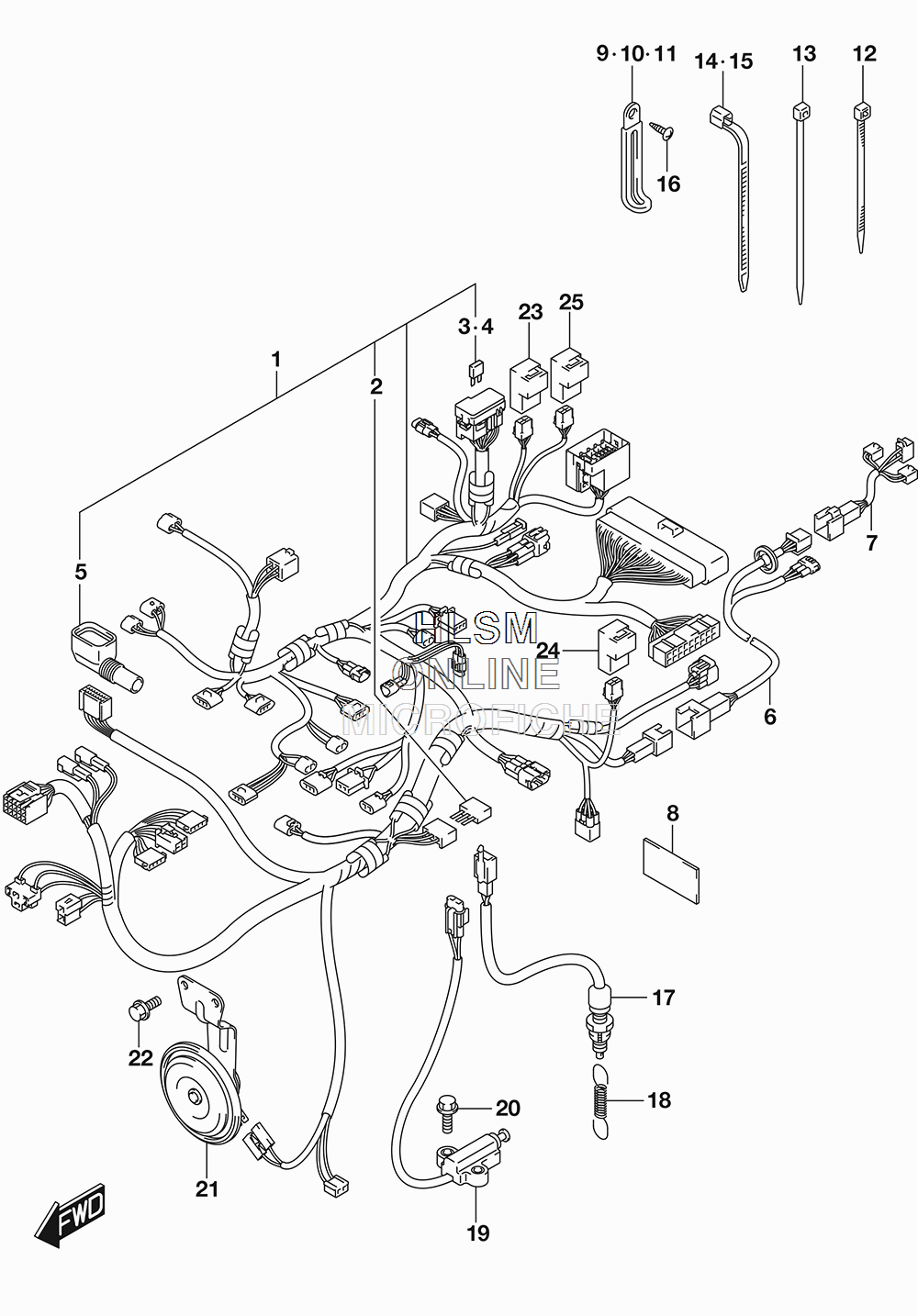

ELECTRICAL - WIRING HARNESS (CALIF ONLY) для Suzuki VL1500B C90 B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
136610-06J40 HARNESS, WIRINGHARNESS, WIRING
-
236611-38A10 ...DIODE...DIODE
-
309481-10501 ...FUSE (10A)...FUSE (10A)
-
409481-15501 ...FUSE (15A)...FUSE (15A)
-
536618-41G00 ...COVER, CONNECTOR...COVER, CONNECTOR
-
636858-06J00 WIRE, REAR COMBINATIONWIRE, REAR COMBINATION
-
736856-41F00 WIRE, REAR COMBINATION NO.2WIRE, REAR COMBINATION NO.2
-
836611-16G00 TAPE (28X50X0.13)TAPE (28X50X0.13)
-
909404-06429 CLAMP (L:45)CLAMP (L:45)
-
1009404-06433 CLAMP (L:80)CLAMP (L:80)
-
1109404-06435 CLAMP (L:135)CLAMP (L:135)
-
1209407-10403 CLAMP (L:95)CLAMP (L:95)
-
1309407-14407 CLAMP (L:145)CLAMP (L:145)
-
1409407-19401 CLAMP (L:190)CLAMP (L:190)
-
1509407-25401 CLAMP (L:235)CLAMP (L:235)
-
1603541-0512A SCREWSCREW
-
1737740-19F00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1809443-06077 SPRINGSPRING
-
1937840-22H00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2001547-0620A BOLTBOLT
-
2138500-40H00 HORN ASSYHORN ASSY
-
2201550-0612A BOLTBOLT
-
2338740-24X50 RELAY ASSY (FOR FUEL PUMP)RELAY ASSY (FOR FUEL PUMP)
-
2438740-24X50 RELAY ASSY (FOR FAN MOTOR)RELAY ASSY (FOR FAN MOTOR)
-
2538740-24A00 RELAY ASSY, HEADLAMPRELAY ASSY, HEADLAMP
