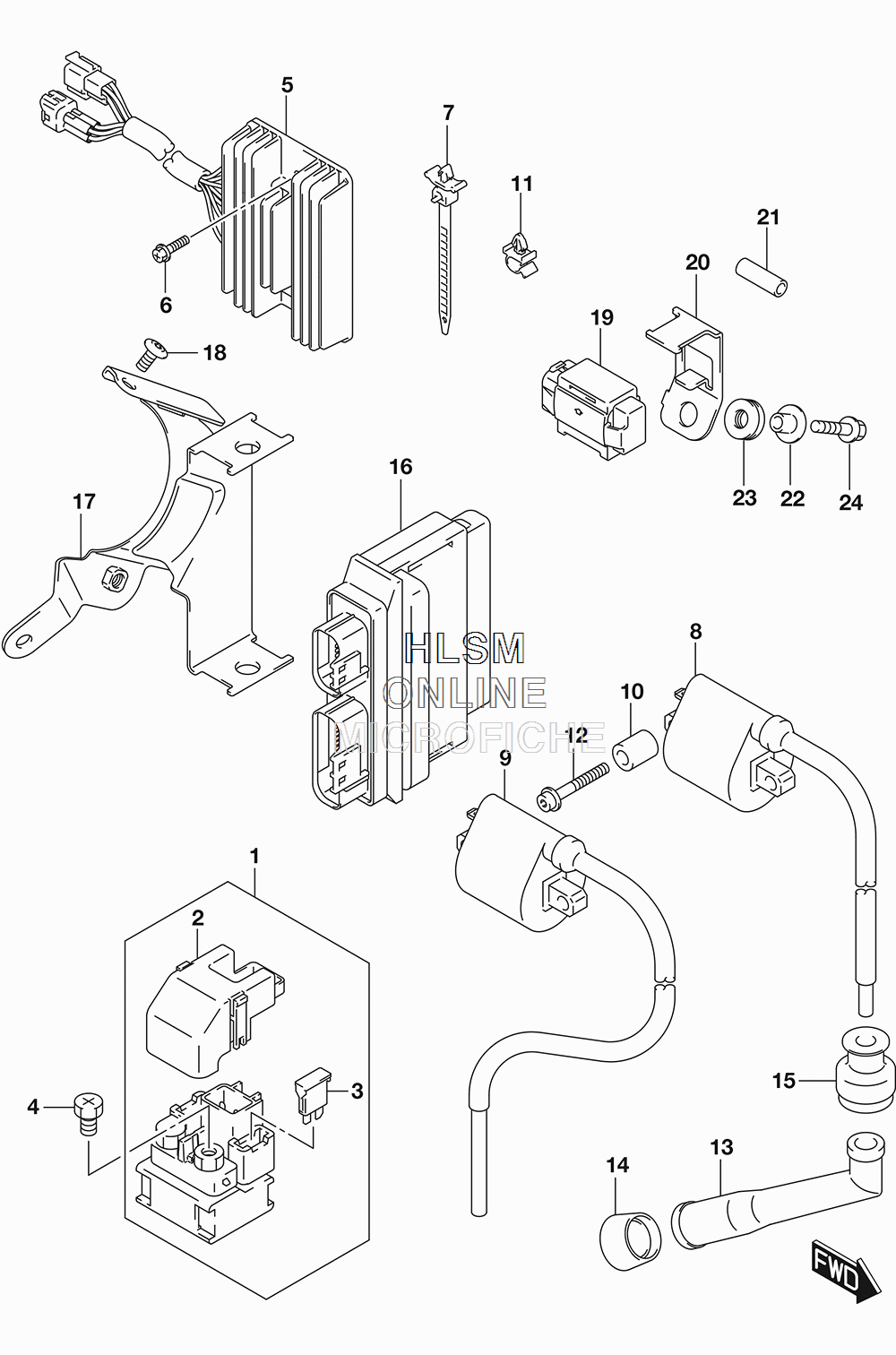

ELECTRICAL - STARTER (EXCEPT CALIF.) для Suzuki VL800 C50T - 2017 года выпуска
-
№АртикулНазвание
-
131800-21E20 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
231861-47E00 ...COVER...COVER
-
309481-30101 ...FUSE (30A)...FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-47H00 RECTIFIER ASSYRECTIFIER ASSY
-
602162-0620B BOLTBOLT
-
709407-11402 CLAMP (L:90)CLAMP (L:90)
-
833410-17G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
933420-41F10 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1009180-06195 SPACER (6.4X10X18)SPACER (6.4X10X18)
-
1109403-07308 CLAMPCLAMP
-
1209106-05033 BOLT (5X35)BOLT (5X35)
-
1333510-11410 CAP, SPARK PLUGCAP, SPARK PLUG
-
1433541-47D00 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
1533542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1632920-39GH0 CONTROL UNIT, FICONTROL UNIT, FI
-
1744880-43H00 BRACKETBRACKET
-
1809139-06108 SCREW (6X12)SCREW (6X12)
-
1933960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
2033961-41F00 BRACKET, FUEL CUTBRACKET, FUEL CUT
-
2109352-50823-600 HOSE (5X8.2X600) (L:600->10)HOSE (5X8.2X600) (L:600->10)
-
2209180-06325 SPACER (6.2X8.4X6.9)SPACER (6.2X8.4X6.9)
-
2309320-06017 CUSHIONCUSHION
-
2401547-0616A BOLTBOLT
