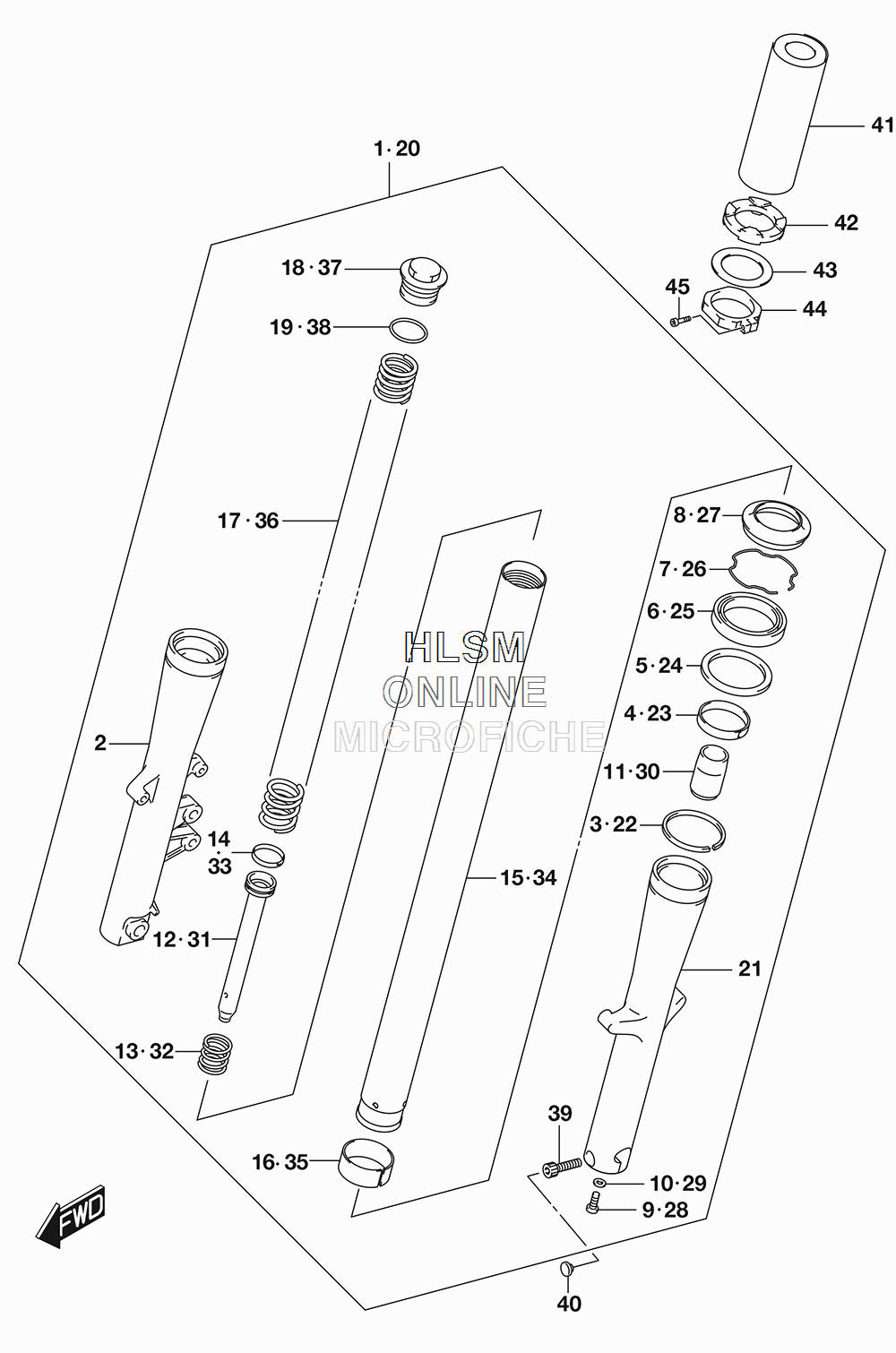

SUSPENSION - FRONT FORK DAMPER для Suzuki VL800 C50T - 2017 года выпуска
-
№АртикулНазвание
-
151103-41F40 DAMPER ASSY, FRONT FORK (RH)DAMPER ASSY, FRONT FORK (RH)
-
251131-41F20 ...TUBE, OUTER (RH)...TUBE, OUTER (RH)
-
351469-41F21 ...GUIDE, CASE...GUIDE, CASE
-
451152-11D60 ...BUSH, GUIDE...BUSH, GUIDE
-
551168-38B00 ...SPACER, SEAL...SPACER, SEAL
-
651153-08D00 ...SEAL, OIL...SEAL, OIL
-
751556-38B00 ...RING...RING
-
851571-47D50 ...SEAL, DUST...SEAL, DUST
-
951147-06F10 ...BOLT...BOLT
-
1051148-36011 ...GASKET...GASKET
-
1151195-10F00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
1251146-10F00 ...SEAT, PIPE...SEAT, PIPE
-
1351177-10F00 ...SPRING, REBOUND...SPRING, REBOUND
-
1451196-47D00 ...RING...RING
-
1551110-41F40 ...TUBE, INNER...TUBE, INNER
-
1651121-42E00 ...BUSH, SLIDE...BUSH, SLIDE
-
1751171-41F40 ...SPRING, FRONT...SPRING, FRONT
-
1851189-47D50 ...BOLT, FORK...BOLT, FORK
-
1951117-12C00 ...O RING...O RING
-
2051104-41F40 DAMPER ASSY, FRONT FORK (LH)DAMPER ASSY, FRONT FORK (LH)
-
2151141-41F20 ...TUBE, OUTER (LH)...TUBE, OUTER (LH)
-
2251469-41F21 ...GUIDE, CASE...GUIDE, CASE
-
2351152-11D60 ...BUSH, GUIDE...BUSH, GUIDE
-
2451168-38B00 ...SPACER, SEAL...SPACER, SEAL
-
2551153-08D00 ...SEAL, OIL...SEAL, OIL
-
2651556-38B00 ...RING...RING
-
2751571-47D50 ...SEAL, DUST...SEAL, DUST
-
2851147-06F10 ...BOLT...BOLT
-
2951148-36011 ...GASKET...GASKET
-
3051195-10F00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
3151146-10F00 ...SEAT, PIPE...SEAT, PIPE
-
3251177-10F00 ...SPRING, REBOUND...SPRING, REBOUND
-
3351196-47D00 ...RING...RING
-
3451110-41F40 ...TUBE, INNER...TUBE, INNER
-
3551121-42E00 ...BUSH, SLIDE...BUSH, SLIDE
-
3651171-41F40 ...SPRING, FRONT...SPRING, FRONT
-
3751189-47D50 ...BOLT, FORK...BOLT, FORK
-
3851117-12C00 ...O RING...O RING
-
3907130-10357 ...BOLT...BOLT
-
4009250-08014 CAP (OD:12)CAP (OD:12)
-
4151464-41F21 CASE, UNDERCASE, UNDER
-
4251468-10F00 SEAT, RUBBERSEAT, RUBBER
-
4351467-10F70 WASHERWASHER
-
4451465-41F20 SPACERSPACER
-
4551466-10F00 BOLTBOLT
