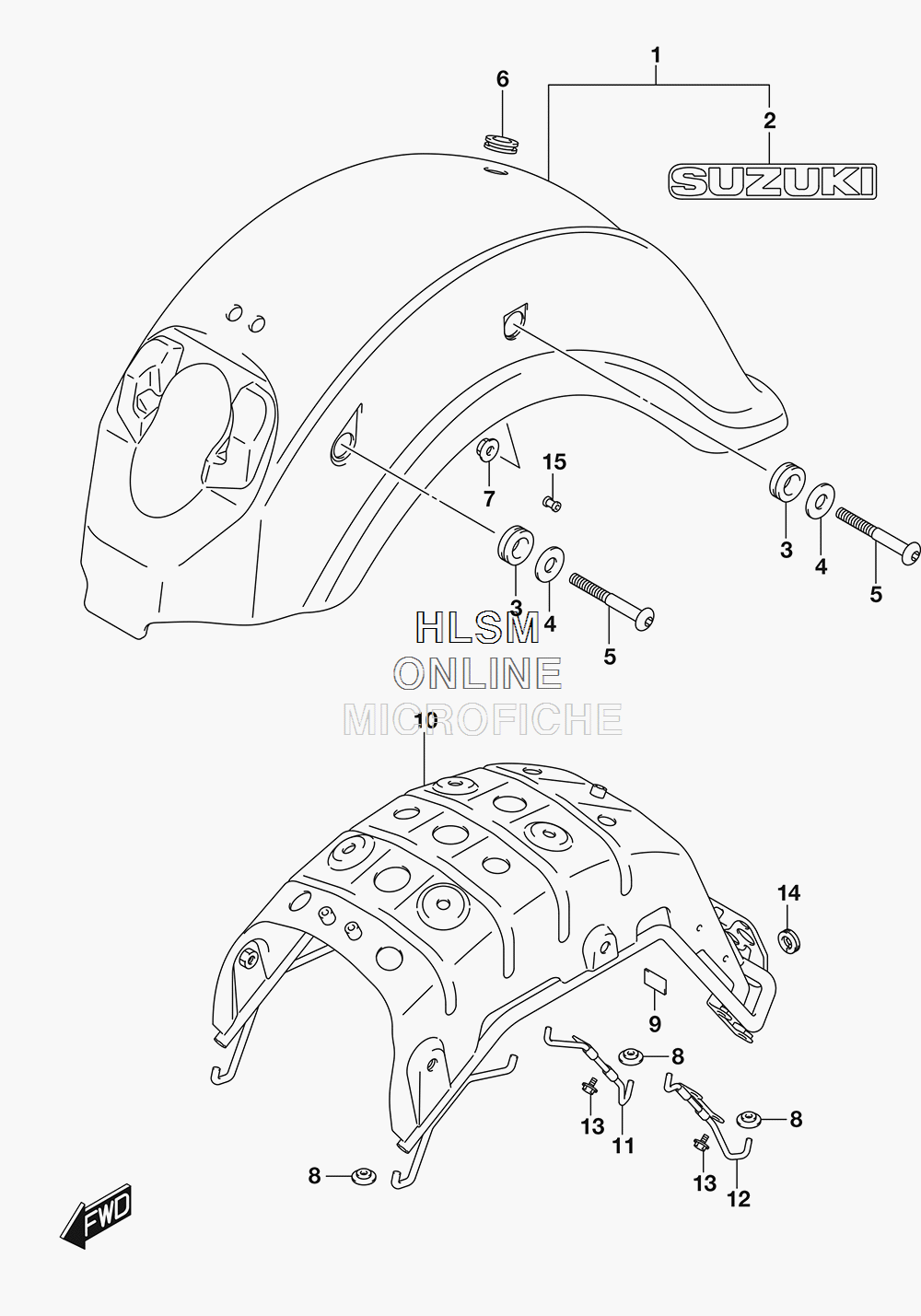

FENDER - REAR (CALIF.) для Suzuki VL800 C50T - 2017 года выпуска
-
№АртикулНазвание
-
163110-43H00-YVB FENDER, REAR (YVB - BLACK)FENDER, REAR (YVB - BLACK)
-
268271-34A00-YES ...EMBLEM (YES - SILVER)...EMBLEM (YES - SILVER)
-
347191-24F00 CUSHIONCUSHION
-
409160-15002 WASHER (15.5X26X2.3)WASHER (15.5X26X2.3)
-
563161-41F00 BOLTBOLT
-
609320-15008 CUSHIONCUSHION
-
708316-1008B NUTNUT
-
809320-06026 CUSHIONCUSHION
-
953145-17C11 CUSHION, FENDER SIDECUSHION, FENDER SIDE
-
1063130-43H00 PLATE, REAR FENDERPLATE, REAR FENDER
-
1163150-43H00 BRACKET, LOWER (RH)BRACKET, LOWER (RH)
-
1263160-43H00 BRACKET, LOWER (LH)BRACKET, LOWER (LH)
-
1301550-0610B BOLTBOLT
-
1409308-10017 GROMMETGROMMET
-
1509250-07004 PLUG (OD:9)PLUG (OD:9)
