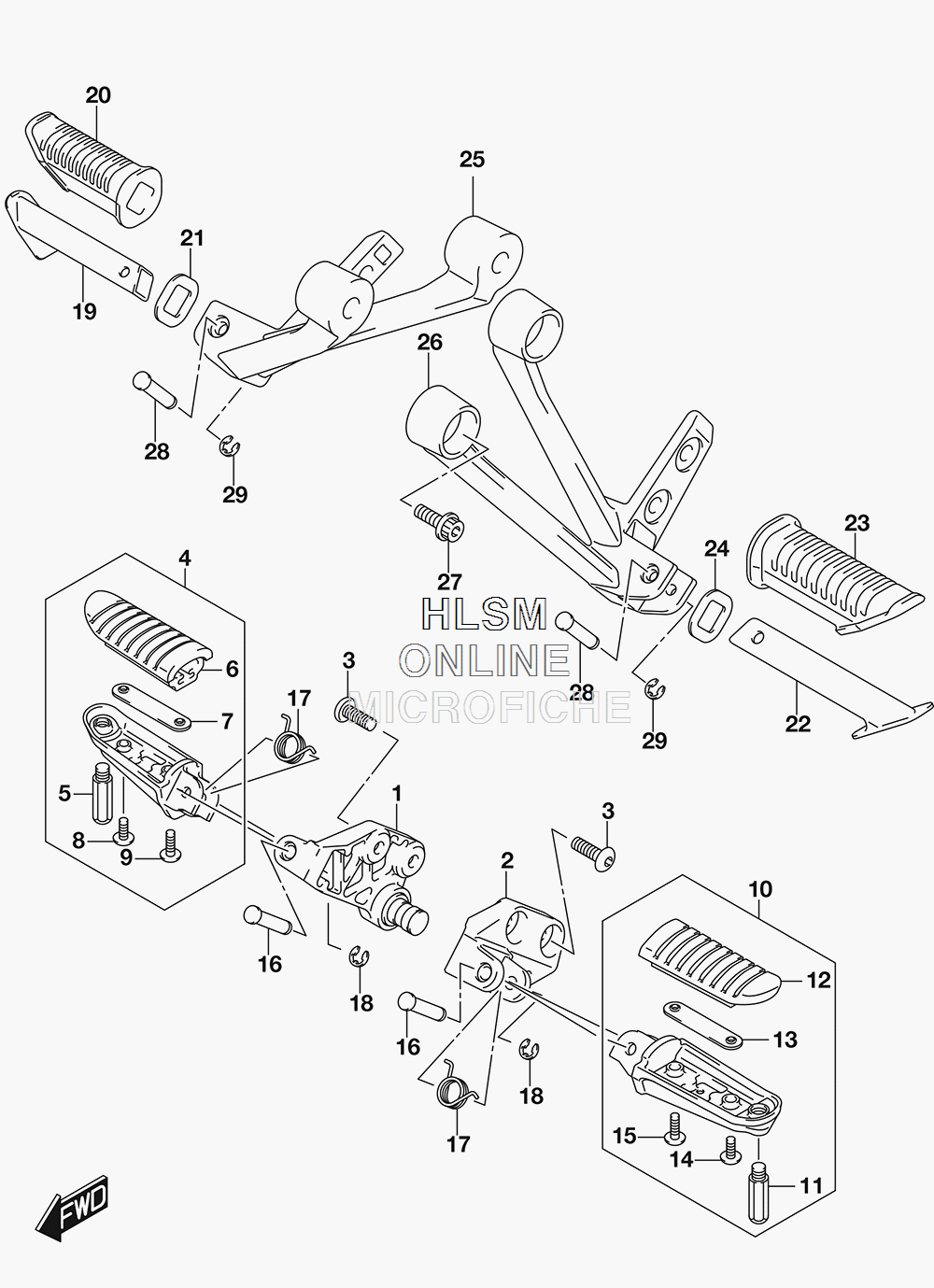

FOOTREST для Suzuki DL1000A V-STORM 1000 - 2018 года выпуска
-
№АртикулНазвание
-
143510-06G01-YAP BRACKET, FRONT (RH) (YAP - BLACK)BRACKET, FRONT (RH) (YAP - BLACK)
-
243521-06G01-YAP BRACKET, FRONT (LH) (YAP - BLACK)BRACKET, FRONT (LH) (YAP - BLACK)
-
309106-08150 BOLT (8X23)BOLT (8X23)
-
443501-31J00 FOOTREST ASSY, FRONT (RH)FOOTREST ASSY, FRONT (RH)
-
543576-31J00 ...SENSOR, FOOTREST...SENSOR, FOOTREST
-
643551-06G00 ...RUBBER...RUBBER
-
743552-06G00 ...PLATE...PLATE
-
802142-0516A ...SCREW (OUTER)...SCREW (OUTER)
-
902142-0520A ...SCREW (INNER)...SCREW (INNER)
-
1043502-31J00 FOOTREST ASSY, FRONT (LH)FOOTREST ASSY, FRONT (LH)
-
1143576-31J00 ...SENSOR, FOOTREST...SENSOR, FOOTREST
-
1243551-06G00 ...RUBBER...RUBBER
-
1343552-06G00 ...PLATE...PLATE
-
1402142-0516A ...SCREW (OUTER)...SCREW (OUTER)
-
1502142-0520A ...SCREW (INNER)...SCREW (INNER)
-
1609208-08019 PINPIN
-
1709448-18022 SPRINGSPRING
-
1808332-1106A E RINGE RING
-
1943610-34A30 BAR, PILLION FOOTREST, (RH)BAR, PILLION FOOTREST, (RH)
-
2043612-33G01 RUBBERRUBBER
-
2143631-31J00 WASHER, FOOTREST RUBBERWASHER, FOOTREST RUBBER
-
2243710-34A30 BAR, PILLION FOOTREST, (LH)BAR, PILLION FOOTREST, (LH)
-
2343612-33G01 RUBBERRUBBER
-
2443631-31J00 WASHER, FOOTREST RUBBERWASHER, FOOTREST RUBBER
-
2543811-31J00-YAP BRACKET, PILLION (RH) (YAP - BLACK)BRACKET, PILLION (RH) (YAP - BLACK)
-
2643821-31J00-YAP BRACKET, PILLION (LH) (YAP - BLACK)BRACKET, PILLION (LH) (YAP - BLACK)
-
2709106-08131 BOLT (8X30)BOLT (8X30)
-
2809208-06007 PINPIN
-
2908332-1104A E RINGE RING
