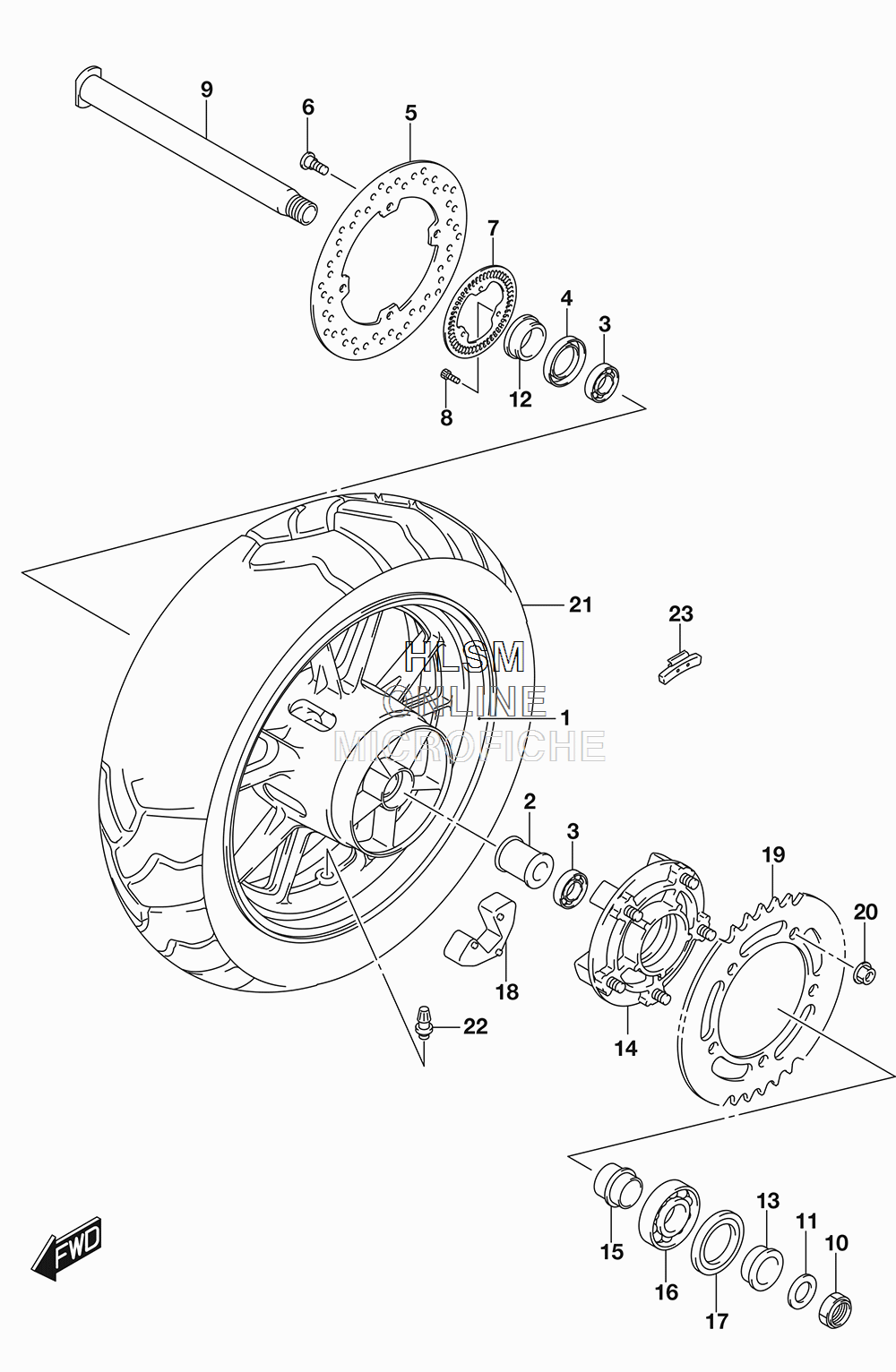

WHEEL - REAR (CALIF.) для Suzuki DL1000A V-STORM 1000 - 2018 года выпуска
-
№АртикулНазвание
-
164111-31J00-019 WHEEL, REAR (17M/CXMT4.00) (019 - BLACK)WHEEL, REAR (17M/CXMT4.00) (019 - BLACK)
-
264731-49G00 SPACER, REAR WHEEL BEARINGSPACER, REAR WHEEL BEARING
-
309262-28052 BEARING (28X52X12)BEARING (28X52X12)
-
409284-37001 OIL SEAL (37X52X8)OIL SEAL (37X52X8)
-
569211-06G00 DISC, REAR BRAKEDISC, REAR BRAKE
-
609106-08160 BOLT (8X21)BOLT (8X21)
-
764162-17G00 RING, SPEED SENSOR REARRING, SPEED SENSOR REAR
-
807130-0512A BOLTBOLT
-
964711-31J00 AXLE, REARAXLE, REAR
-
1064721-17K00 NUTNUT
-
1109160-25070 WASHER (25.2X42X3.2)WASHER (25.2X42X3.2)
-
1264741-35F00 SPACER, REAR AXLE (RH)SPACER, REAR AXLE (RH)
-
1364751-47H00 SPACER, REAR AXLE (LH)SPACER, REAR AXLE (LH)
-
1464610-35F40 DRUM, REAR SPROCKETDRUM, REAR SPROCKET
-
1564733-35F00 RETAINER, REAR SPROCKET DRUMRETAINER, REAR SPROCKET DRUM
-
1609262-32022 BEARING (32X65X17)BEARING (32X65X17)
-
1709285-39001 OIL SEAL (39X65X7)OIL SEAL (39X65X7)
-
1864651-35F30 ABSORBER, REAR HUB SHOCKABSORBER, REAR HUB SHOCK
-
1964511-35F20 SPROCKET, REAR (NT:41)SPROCKET, REAR (NT:41)
-
2008319-3110A NUTNUT
-
2165110-31J00 TIRE, REAR (150/70R17M/C 69V) (BW-502 RADIAL J BRIDGESTONE)TIRE, REAR (150/70R17M/C 69V) (BW-502 RADIAL J BRIDGESTONE)
-
2243130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
23-155411-22H00 BALANCER, WHEEL NO.1 (10G)BALANCER, WHEEL NO.1 (10G)
-
23-255412-22H00 BALANCER, WHEEL NO.2 (20G)BALANCER, WHEEL NO.2 (20G)
-
23-355413-22H00 BALANCER, WHEEL NO.3 (30G)BALANCER, WHEEL NO.3 (30G)
