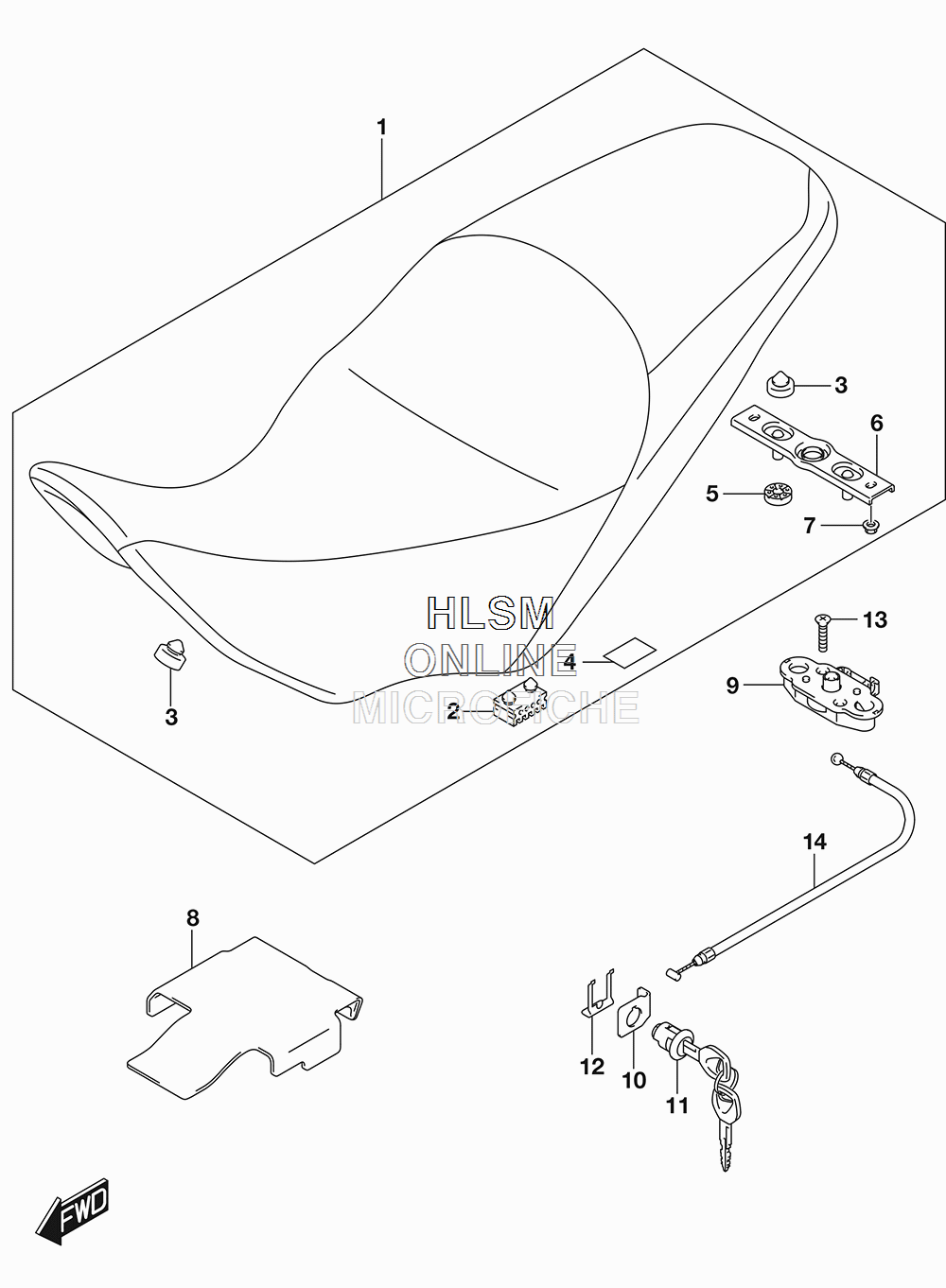

SEAT для Suzuki DL1000A V-STORM 1000 - 2018 года выпуска
-
№АртикулНазвание
-
1-145100-31J10-BGQ SEAT ASSY (BGQ - GRAY/BLACK/SILVER/GRAY FOR YVB - BLACK)SEAT ASSY (BGQ - GRAY/BLACK/SILVER/GRAY FOR YVB - BLACK)
-
1-245100-31J10-BGQ SEAT ASSY (BGQ - GRAY/BLACK/SILVER/GRAY FOR YWW - WHITE)SEAT ASSY (BGQ - GRAY/BLACK/SILVER/GRAY FOR YWW - WHITE)
-
1-345100-31J10-BGR SEAT ASSY (BGR - YELLOW/BLACK/SILVER/GRAY FOR YU1 - YELLOW)SEAT ASSY (BGR - YELLOW/BLACK/SILVER/GRAY FOR YU1 - YELLOW)
-
245149-31300 ...CUSHION...CUSHION
-
309321-10012 ...CUSHION...CUSHION
-
494474-17H00 ...TAPE, SEAT BOTTOM...TAPE, SEAT BOTTOM
-
545213-13601 ...CUSHION, SEAT LOCK...CUSHION, SEAT LOCK
-
645215-26F00 ...STRIKER, SEAT LOCK...STRIKER, SEAT LOCK
-
708316-1006A ...NUT...NUT
-
845256-31J00 SHEET, HEAT SHIELD RUBBERSHEET, HEAT SHIELD RUBBER
-
945220-47H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
1045288-14F00 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
-
1195700-14F00 LOCK SET, SEATLOCK SET, SEAT
-
1245289-11F00 PLATE, SEAT LOCK ASSYPLATE, SEAT LOCK ASSY
-
1302122-0630A SCREWSCREW
-
1445280-18G01 CABLE, SEAT LOCKCABLE, SEAT LOCK
