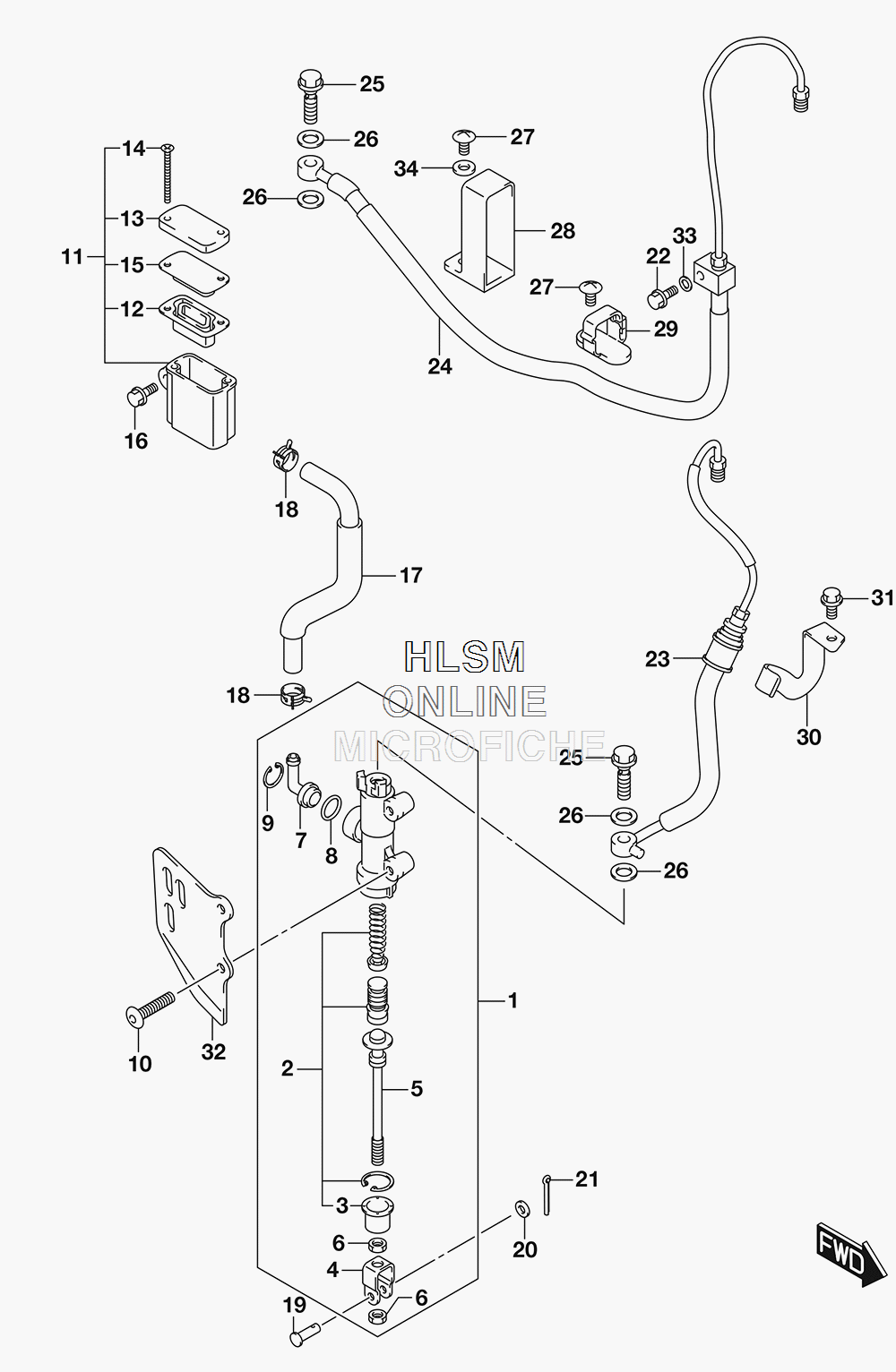

BRAKE - REAR MASTER CYLINDER для Suzuki DL1000XA V-STORM 1000XT - 2018 года выпуска
-
№АртикулНазвание
-
169600-31J00 CYLINDER ASSY, REAR MASTERCYLINDER ASSY, REAR MASTER
-
269600-34830 ...PISTON / CAP SET...PISTON / CAP SET
-
369691-00A00 ......BOOT......BOOT
-
469692-44H00 ...YOKE...YOKE
-
569670-31J00 ...ROD, PUSH...ROD, PUSH
-
669693-05A00 ...NUT...NUT
-
769672-00B20 ...CONNECTOR...CONNECTOR
-
869686-34200 ...O RING...O RING
-
969674-00B20 ...CIRCLIP...CIRCLIP
-
1009139-06029 SCREW (6X25)SCREW (6X25)
-
1169740-18K00 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
1269667-01H00 ...DIAPHRAGM...DIAPHRAGM
-
1369669-18K00 ...CAP...CAP
-
1469689-01H00 ...SCREW...SCREW
-
1569668-01H00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
1609111-06116 BOLT (6X16.5)BOLT (6X16.5)
-
1769730-31J00 HOSE, RR RESERVOIR TANKHOSE, RR RESERVOIR TANK
-
1809401-12404 CLIPCLIP
-
1909200-06068 PIN (6X18.2)PIN (6X18.2)
-
2008322-0106A WASHERWASHER
-
2104111-2015A PINPIN
-
2201547-0612A BOLTBOLT
-
2369200-31J20 HOSE ASSY, REAR BRAKE NO.1HOSE ASSY, REAR BRAKE NO.1
-
2469400-31J20 HOSE ASSY, REAR BRAKE NO.2HOSE ASSY, REAR BRAKE NO.2
-
2509360-10062 UNIONUNION
-
2609161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
2702142-0616A SCREWSCREW
-
2869243-16G00 GUIDE, REAR BRAKE HOSEGUIDE, REAR BRAKE HOSE
-
2961196-44H00 GUIDE, REAR BRAKE HOSEGUIDE, REAR BRAKE HOSE
-
3069261-31J00 CLAMP, RR BRAKE HOSECLAMP, RR BRAKE HOSE
-
3101547-0612A BOLTBOLT
-
3269641-31J01 COVER, REAR MASTER CYLINDERCOVER, REAR MASTER CYLINDER
-
3369273-31J00 CUSHION, REAR BRAKE HOSECUSHION, REAR BRAKE HOSE
-
3469486-31J00 WASHER, REAR BRAKE HOSE GUIDEWASHER, REAR BRAKE HOSE GUIDE
