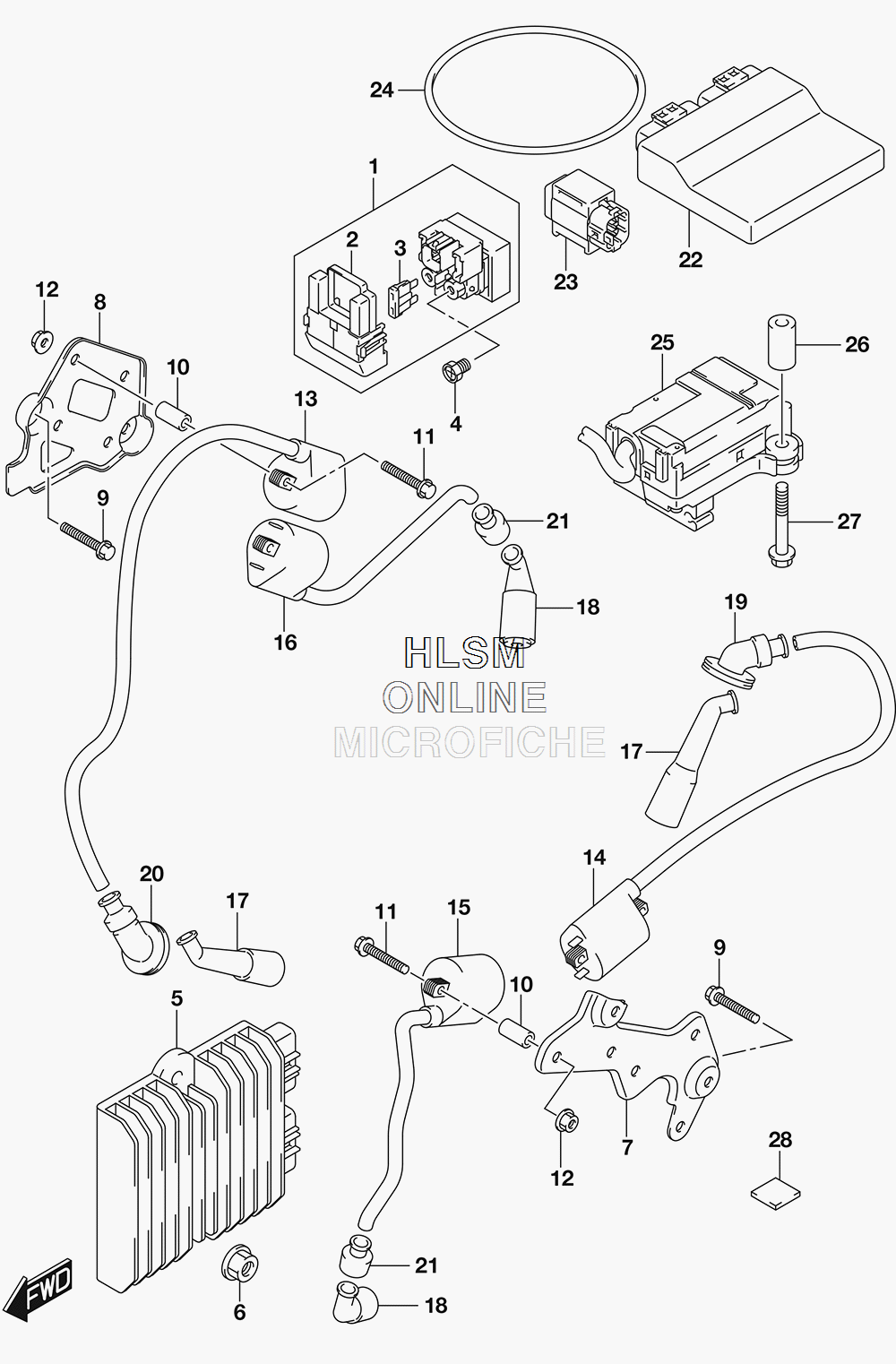

ELECTRICAL (CALIF.) для Suzuki DL1000XA V-STORM 1000XT - 2018 года выпуска
-
№АртикулНазвание
-
131800-06G00 RELAY ASSY, STARTING MOTERRELAY ASSY, STARTING MOTER
-
231861-47E00 ...COVER, RELAY ASSY...COVER, RELAY ASSY
-
309481-30101 ...FUSE (30A)...FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-31J00 RECTIFIER ASSYRECTIFIER ASSY
-
608316-1006A NUTNUT
-
733414-31J00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
833424-31J00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
901550-0620A BOLTBOLT
-
1009180-06195 SPACER (6.4X10X18)SPACER (6.4X10X18)
-
1109103-06231 BOLT (6X35)BOLT (6X35)
-
1209159-06096 NUTNUT
-
1333410-06G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1433410-17G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1533410-20H00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1633410-26G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1733510-31G00 CAP ASSY, SPARK PLUGCAP ASSY, SPARK PLUG
-
1833510-31G10 CAP ASSY, SPARK PLUGCAP ASSY, SPARK PLUG
-
1933542-06G00 SEAL, HIGH TENSION CORD, RRSEAL, HIGH TENSION CORD, RR
-
2033542-06G10 SEAL, HIGH TENSION CORD, FRSEAL, HIGH TENSION CORD, FR
-
2133542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
2232920-31J22 CONTROL UNIT, FICONTROL UNIT, FI
-
2333960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
2409280-85001 O RING (D:3.5,ID:85)O RING (D:3.5,ID:85)
-
2533970-47H01 ACTUATOR ASSY, EXHAUST CONTROACTUATOR ASSY, EXHAUST CONTRO
-
2609180-06345 SPACER (6.2X14.5X26)SPACER (6.2X14.5X26)
-
2709116-06183 BOLT (6X55)BOLT (6X55)
-
2844534-24F00 CUSHIONCUSHION
