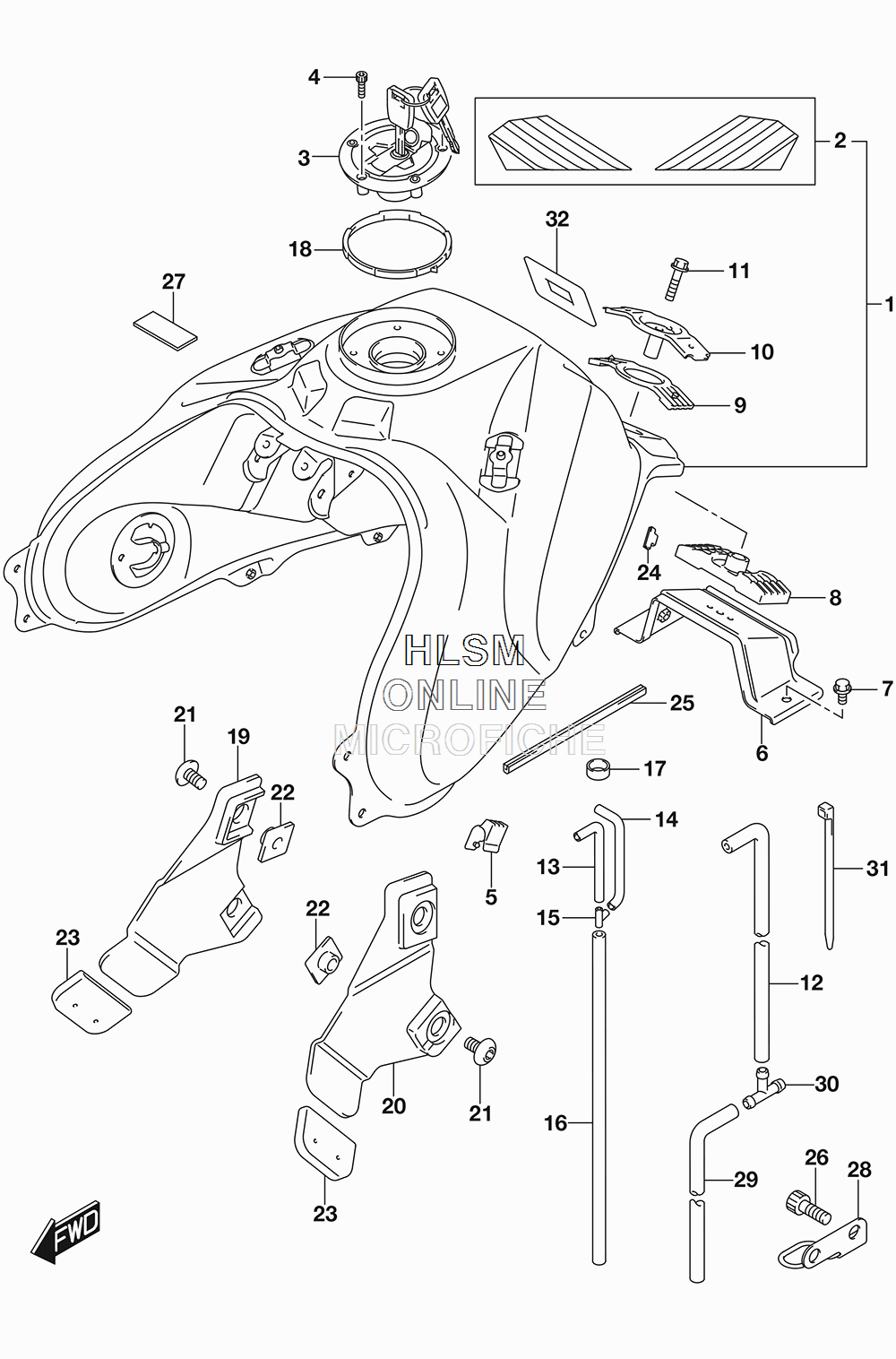

FUEL TANK (CANADA) для Suzuki DL1000XA V-STORM 1000XT - 2018 года выпуска
-
№АртикулНазвание
-
1-144100-31JA0-YU1 TANK, FUEL (YU1 - YELLOW)TANK, FUEL (YU1 - YELLOW)
-
1-244100-31JA0-YVB TANK, FUEL (YVB - BLACK)TANK, FUEL (YVB - BLACK)
-
1-344100-31JA0-YWW TANK, FUEL (YWW - WHITE)TANK, FUEL (YWW - WHITE)
-
2-168110-31J00-GY8 ...TAPE SET, FUEL TANK (GY8 - YELLOW/BLACK FOR YU1)...TAPE SET, FUEL TANK (GY8 - YELLOW/BLACK FOR YU1)
-
2-268110-31J00-AA3 ...TAPE SET, FUEL TANK (AA3 - GRAY/BLACK FOR YVB)...TAPE SET, FUEL TANK (AA3 - GRAY/BLACK FOR YVB)
-
2-368110-31J00-BGZ ...TAPE SET, FUEL TANK (BGZ - GRAY/WHITE FOR YWW)...TAPE SET, FUEL TANK (BGZ - GRAY/WHITE FOR YWW)
-
344200-17820 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
444244-11J00 BOLTBOLT
-
544541-31J00 CUSHION, SIDECUSHION, SIDE
-
644550-31J00 BRACKET, REAR LOWERBRACKET, REAR LOWER
-
701550-0816A BOLTBOLT
-
844545-06G00 CUSHION, LOWERCUSHION, LOWER
-
944542-06G00 CUSHION, UPPERCUSHION, UPPER
-
1044530-06G00 BRACKET, UPPERBRACKET, UPPER
-
1101550-0835A BOLTBOLT
-
1244423-31J20 HOSE, WATER DRAINHOSE, WATER DRAIN
-
1344424-31J20 HOSE, FUEL TANK BRTHR NO.1HOSE, FUEL TANK BRTHR NO.1
-
1444424-15H10 HOSE, TANK BREATHER NO.2HOSE, TANK BREATHER NO.2
-
1509367-06007 3 WAY3 WAY
-
1644424-31J10 HOSE, FUEL TANK BRTHR NO.2HOSE, FUEL TANK BRTHR NO.2
-
1709352-13162-010 HOSE (13.5X16.5X10)HOSE (13.5X16.5X10)
-
1868241-31J00 MOLDING, FUEL TANK COVERMOLDING, FUEL TANK COVER
-
1944179-31J00 BRACKET, FUEL TANK COVER SIDE (RH)BRACKET, FUEL TANK COVER SIDE (RH)
-
2044189-31J00 BRACKET, FUEL TANK COVER SIDE (LH)BRACKET, FUEL TANK COVER SIDE (LH)
-
2109139-06181 SCREW (6X10)SCREW (6X10)
-
2244523-47H00 NUT (M6)NUT (M6)
-
2344542-31J00 CUSHION, FUEL TANK COVER BRKTCUSHION, FUEL TANK COVER BRKT
-
2444276-21H00 CUSHION, FUEL TANK COVERCUSHION, FUEL TANK COVER
-
2544552-24B00 MOLDING, FUEL TANK REARMOLDING, FUEL TANK REAR
-
2607130-1016B BOLTBOLT
-
2744544-31J00 CUSHION, FUEL TANKCUSHION, FUEL TANK
-
2844480-31J00 GUIDE, DRAIN HOSEGUIDE, DRAIN HOSE
-
2944423-31J11 HOSE, FUEL TANK DRAIN NO.2HOSE, FUEL TANK DRAIN NO.2
-
3009367-08005 3 WAY3 WAY
-
3109407-14407 CLAMP (L:145)CLAMP (L:145)
-
3244545-31J00 CUSHIONCUSHION
