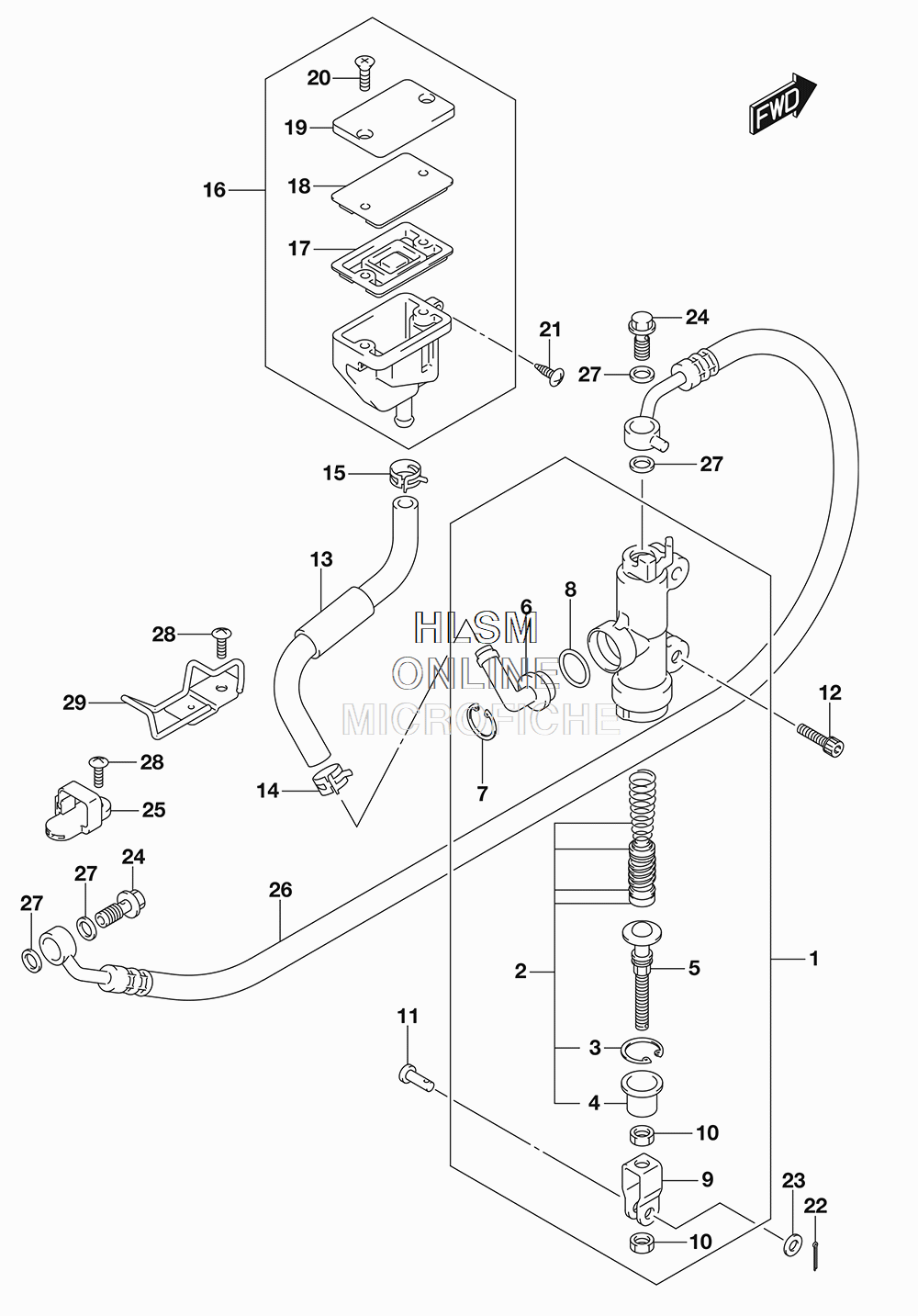

BRAKE - REAR MASTER CYLINDER для Suzuki GSX-250R - 2018 года выпуска
-
№АртикулНазвание
-
169600-20K00 CYLINDER ASSY, REAR MASTERCYLINDER ASSY, REAR MASTER
-
269600-40820 ...PISTON/CUP SET...PISTON/CUP SET
-
369665-47H00 ......CIRCLIP......CIRCLIP
-
469691-00A00 ......BOOT......BOOT
-
569670-48H10 ...ROD, PUSH...ROD, PUSH
-
669672-00B20 ...CONNECTOR...CONNECTOR
-
769674-00B20 ...CIRCLIP...CIRCLIP
-
869686-34200 ...O RING...O RING
-
969692-44H00 ...YOKE...YOKE
-
1069693-05A00 ...NUT...NUT
-
1169697-48H00 PIN, REAR MASTER CYLINDERPIN, REAR MASTER CYLINDER
-
1269698-48H00 BOLT, REAR MASTER CYLINDERBOLT, REAR MASTER CYLINDER
-
1369730-20K00 HOSE, REAR RESERVOIR TANKHOSE, REAR RESERVOIR TANK
-
1469735-48H00 CLIP, HOSE LOWERCLIP, HOSE LOWER
-
1569735-48H10 CLIP, HOSE UPPERCLIP, HOSE UPPER
-
1669740-48H50 TANK ASSY, REAR RESERVOIRTANK ASSY, REAR RESERVOIR
-
1769667-48H00 ...DIAPHRAGM...DIAPHRAGM
-
1869668-48H00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
1969669-48H50 ...CAP...CAP
-
2069689-48H10 ...SCREW...SCREW
-
2101547-0616A BOLTBOLT
-
2204111-2015A COTTER PINCOTTER PIN
-
2308322-0106A WASHERWASHER
-
2459492-48H00 BOLT, BRAKE FLUIDBOLT, BRAKE FLUID
-
2561196-48H00 GUIDE, REAR BRAKE HOSEGUIDE, REAR BRAKE HOSE
-
2669480-20K00 HOSE, REAR BRAKEHOSE, REAR BRAKE
-
2759464-48H00 WASHER, BRAKE FLUIDWASHER, BRAKE FLUID
-
2802142-0616A SCREWSCREW
-
2969260-20K00 GUIDE, REAR BRAKE HOSEGUIDE, REAR BRAKE HOSE
