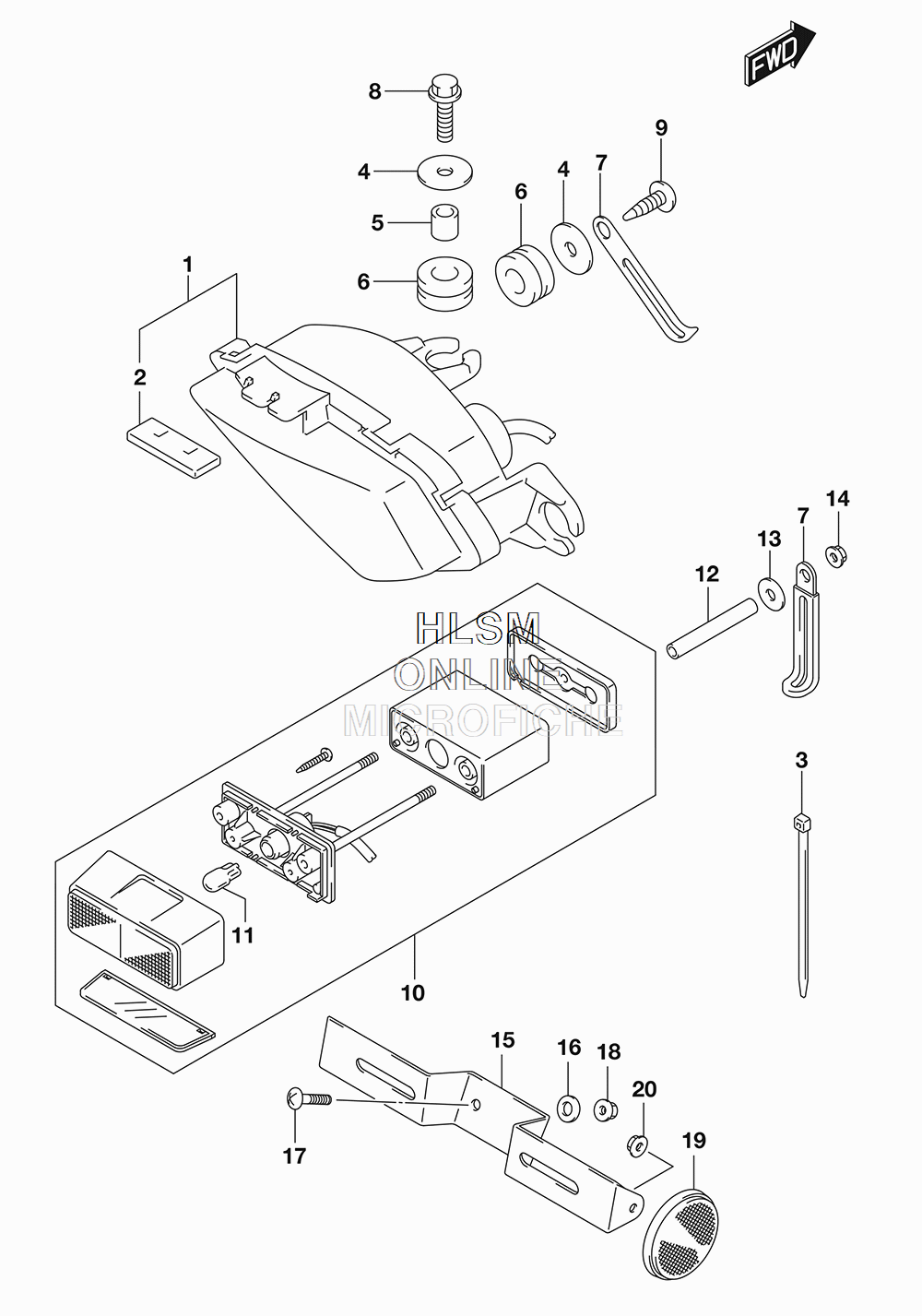

TAILLIGHT/TURN SIGNAL ASSY. для Suzuki GSX-250R - 2018 года выпуска
-
№АртикулНазвание
-
135710-20K00 LAMP ASSY, REAR COMBLAMP ASSY, REAR COMB
-
235781-20K00 ...COVER...COVER
-
336990-48H20 CLAMP (L:50)CLAMP (L:50)
-
409160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
509180-06310 SPACER (6.5X10X10)SPACER (6.5X10X10)
-
609320-10054 CUSHIONCUSHION
-
709404-06429 CLAMP (L:45)CLAMP (L:45)
-
801550-0520A BOLTBOLT
-
903541-0516A SCREWSCREW
-
1035910-48H40 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
1109471-12216 ...BULB (12V5W)...BULB (12V5W)
-
1235996-48H30 SPACER, LICENSE LAMPSPACER, LICENSE LAMP
-
1309160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1408316-1006A NUTNUT
-
1535927-48H30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1609160-06019 WASHER (6.5X16X1.2)WASHER (6.5X16X1.2)
-
1702142-0616A SCREWSCREW
-
1808316-1006A NUTNUT
-
1935950-04HA0 REFLECTOR ASSY, RR SIDEREFLECTOR ASSY, RR SIDE
-
2008316-1005A NUTNUT
