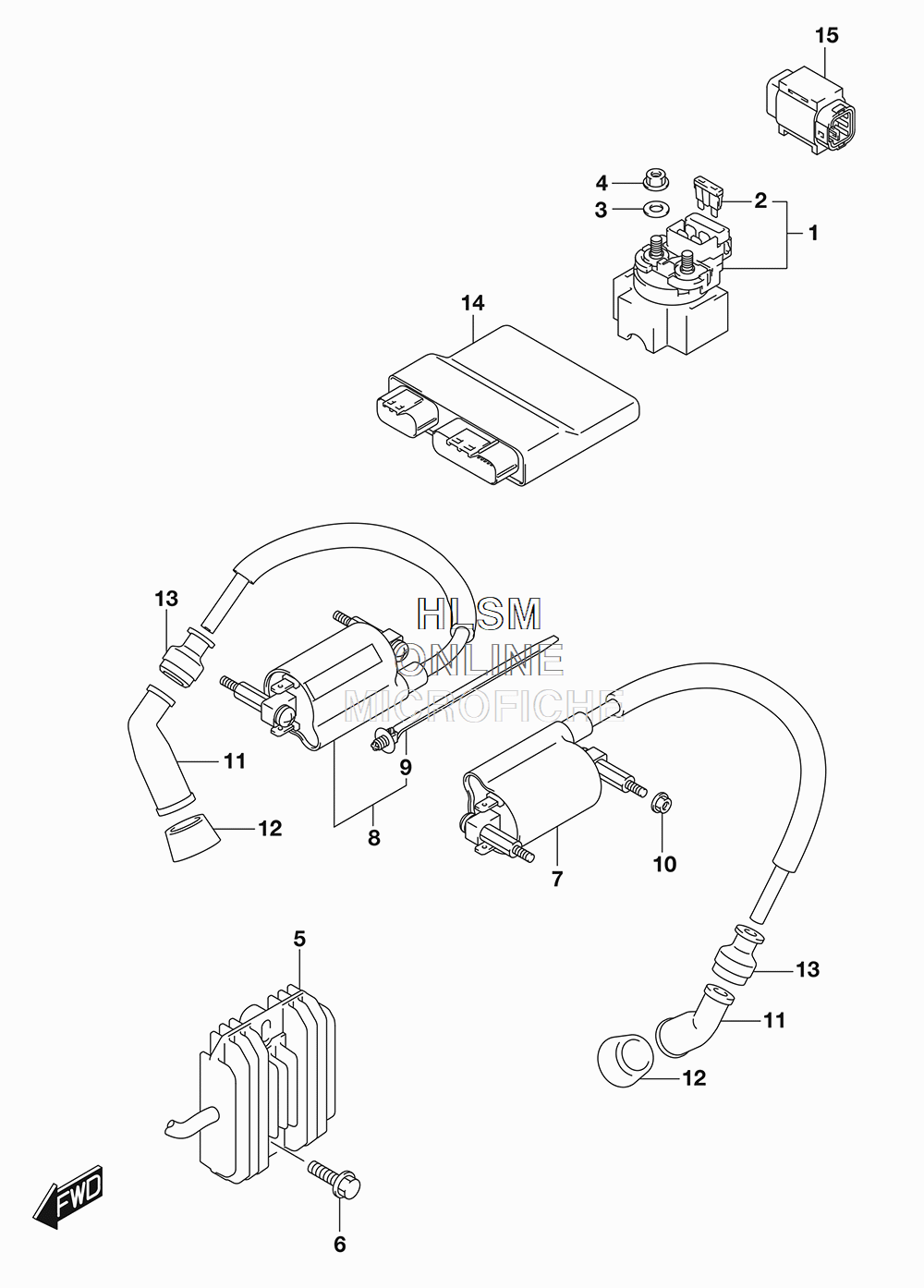

ELECTRICAL для Suzuki GSX-250R - 2018 года выпуска
-
№АртикулНазвание
-
131800-48H00 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
209481-30101 ...FUSE (30A)...FUSE (30A)
-
309160-07003 WASHER (7.5X13X1)WASHER (7.5X13X1)
-
408361-3506A NUTNUT
-
532800-20K00 RECTIFIER ASSYRECTIFIER ASSY
-
602162-0625A SCREWSCREW
-
733410-20K00 COIL ASSY, IGNITION NO.1COIL ASSY, IGNITION NO.1
-
833420-20K00 COIL ASSY, IGNITION NO.2COIL ASSY, IGNITION NO.2
-
909407-17403 ...CLAMP (L:154)...CLAMP (L:154)
-
1008316-1005B NUTNUT
-
1133510-48H00 CAP, SPARK PLUGCAP, SPARK PLUG
-
1233541-48H00 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
1333542-48H00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1432920-20K30 CONTROL UNIT, FICONTROL UNIT, FI
-
1533960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
