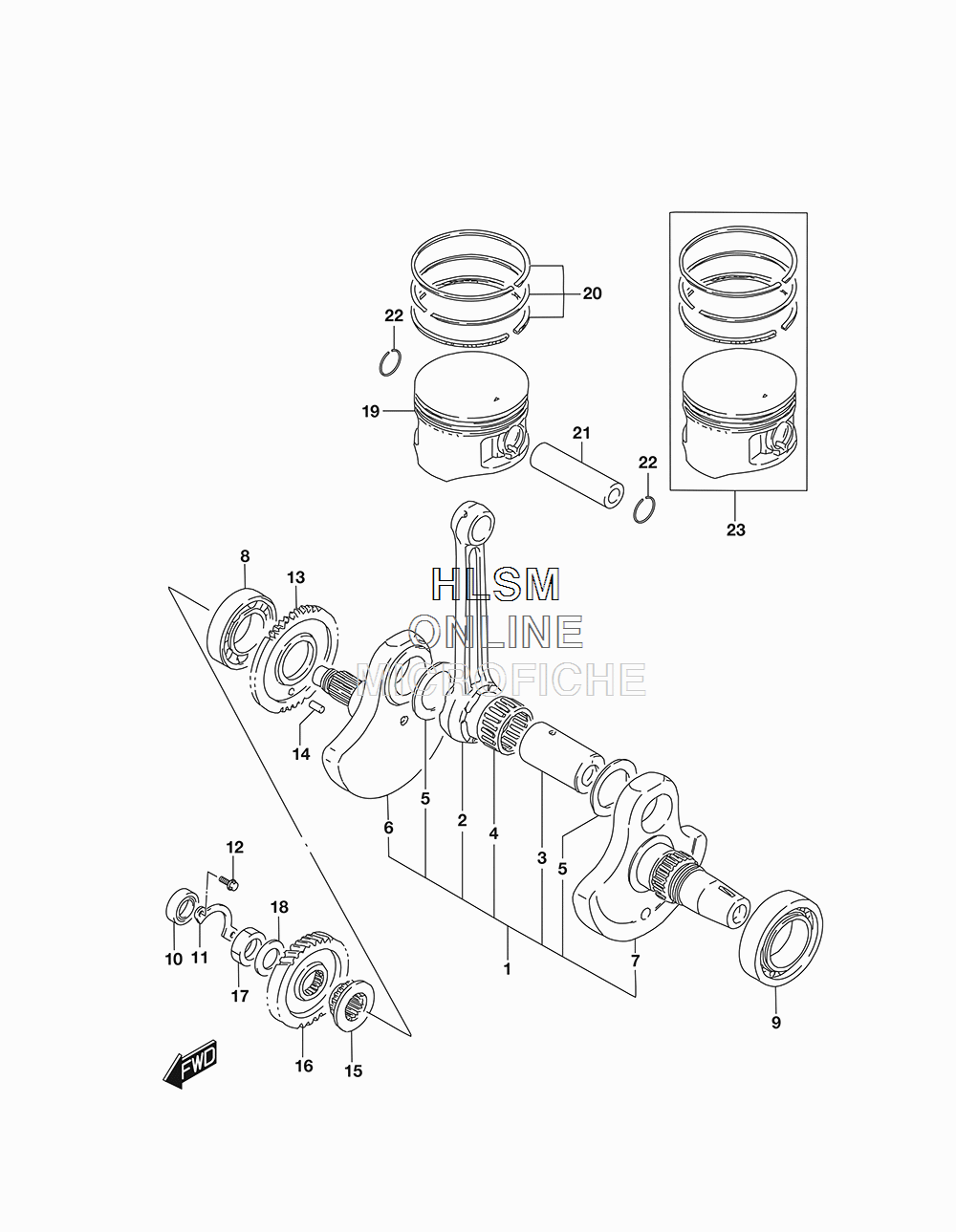

CRANKSHAFT W/ PISTON для Suzuki LS650B S40 - 2018 года выпуска
-
№АртикулНазвание
-
112200-24B05 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
212161-24B01-0C0 ...CONNROD...CONNROD
-
312210-24B01-0A0 ...PIN, CRANK...PIN, CRANK
-
4-109263-37004-0B0 ...BEARING (37X47X25) (BLUE)...BEARING (37X47X25) (BLUE)
-
4-209263-37004-0C0 ...BEARING (37X47X25) (RED)...BEARING (37X47X25) (RED)
-
509160-37006 ...WASHER (37X55X1)...WASHER (37X55X1)
-
612221-24B02 ...CRANKSHAFT, (RH)...CRANKSHAFT, (RH)
-
712261-24B02 ...CRANKSHAFT, (LH)...CRANKSHAFT, (LH)
-
809262-35038 BEARING (35X72X17) (RH)BEARING (35X72X17) (RH)
-
909264-40002 BEARING (40X80X18) (LH)BEARING (40X80X18) (LH)
-
1009282-16002 OIL SEAL (16X30X6) (RH)OIL SEAL (16X30X6) (RH)
-
1112548-24B00 RETAINER, CRANKSHAFT OIL SEALRETAINER, CRANKSHAFT OIL SEAL
-
1201547-0508A BOLTBOLT
-
1312661-24B00 GEAR, CRANK BALANCER DRIVE (NT:47)GEAR, CRANK BALANCER DRIVE (NT:47)
-
1404221-08149 PINPIN
-
1512731-24B00 SPROCKET, CAM CHAIN DRIVE (NT:19)SPROCKET, CAM CHAIN DRIVE (NT:19)
-
1621111-24B10 GEAR, PRIMARY DRIVE (NT:37)GEAR, PRIMARY DRIVE (NT:37)
-
1709140-20013 NUTNUT
-
1809164-20003 WASHERWASHER
-
1912111-24B01-0F0 PISTONPISTON
-
2012140-14A32 RING SET, PISTONRING SET, PISTON
-
2112151-14A01 PIN, PISTONPIN, PISTON
-
2209381-23003 CIRCLIPCIRCLIP
-
2312100-24B00-050 PISTON SET (OS:0.5) (OPT)PISTON SET (OS:0.5) (OPT)
