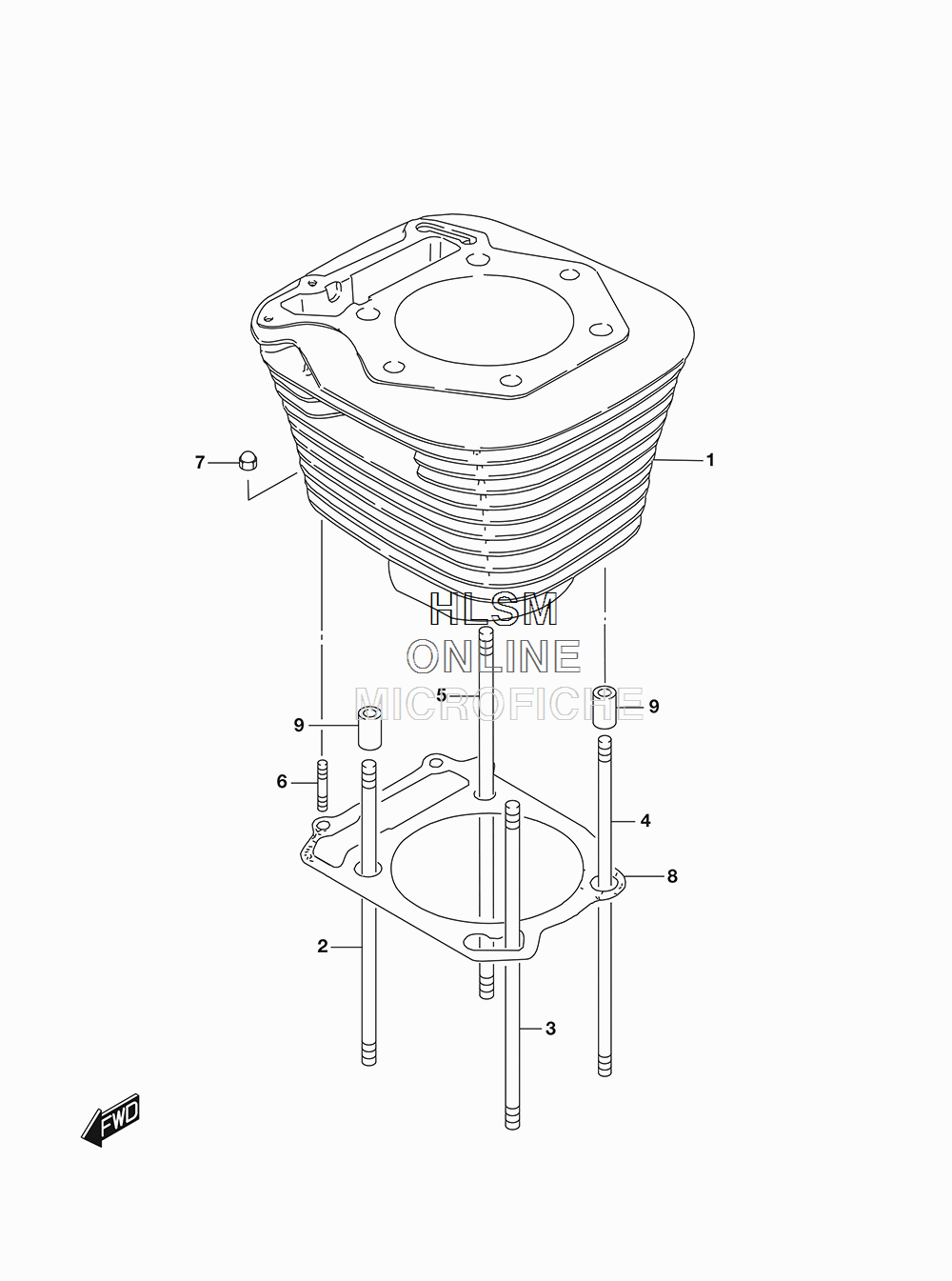

CYLINDER для Suzuki LS650B S40 - 2018 года выпуска
-
№АртикулНазвание
-
111210-24B11-0F0 CYLINDERCYLINDER
-
209108-09001 STUD BOLT (NO.1)STUD BOLT (NO.1)
-
309108-09002 STUD BOLT (NO.2)STUD BOLT (NO.2)
-
409108-09003 STUD BOLT (NO.3)STUD BOLT (NO.3)
-
509108-09004 STUD BOLT (NO.4)STUD BOLT (NO.4)
-
601421-0620A STUD BOLTSTUD BOLT
-
708313-20067 NUTNUT
-
811241-24B01-H17 GASKET, CYLINDERGASKET, CYLINDER
-
904211-13189 PINPIN
