GASKET SET для Suzuki LS650B S40 - 2018 года выпуска
-
№АртикулНазвание
-

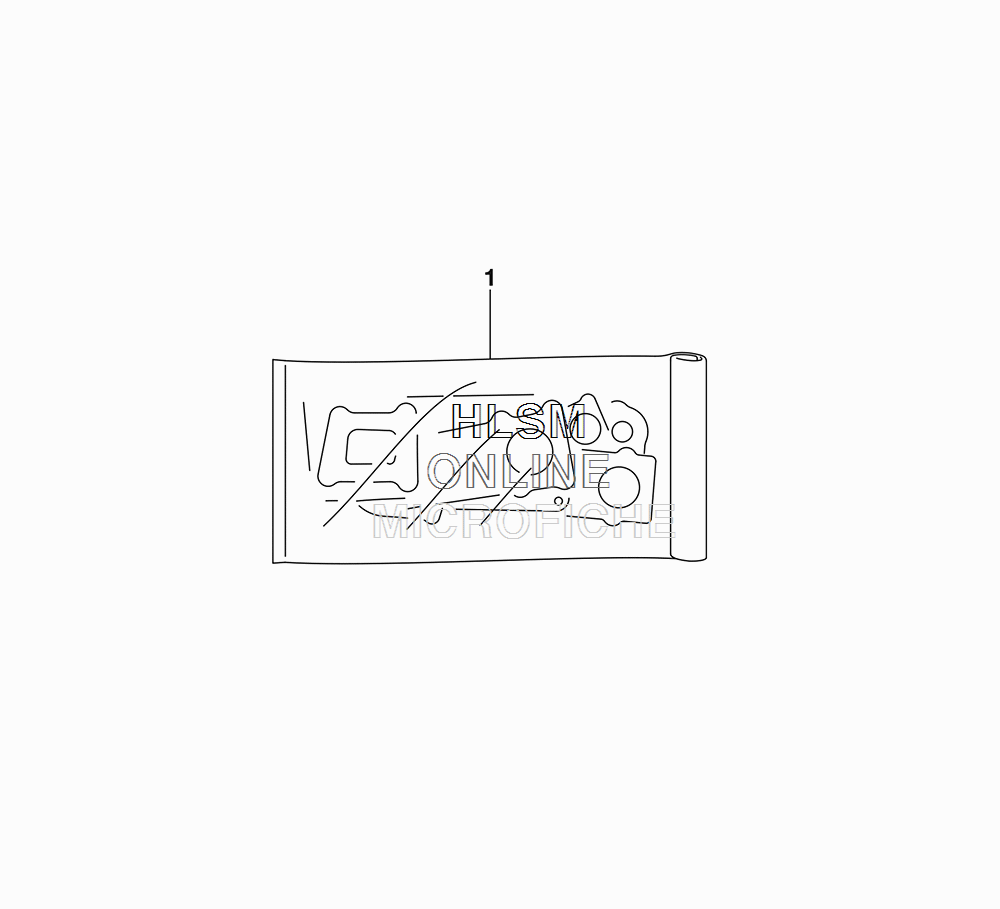

111400-24880 GASKET SET (OPT)GASKET SET (OPT)
-
211141-24B03 ...GASKET, CYLINDER HEAD (NOT ILLUSTRATED)...GASKET, CYLINDER HEAD (NOT ILLUSTRATED)
-
311178-24B00 ...O RING, HEAD COVER (NOT ILLUSTRATED)...O RING, HEAD COVER (NOT ILLUSTRATED)
-
411241-24B01-H17 ...GASKET, CYLINDER (NOT ILLUSTRATED)...GASKET, CYLINDER (NOT ILLUSTRATED)
-
511482-24B20 ...GASKET, CLUTCH COVER (NOT ILLUSTRATED)...GASKET, CLUTCH COVER (NOT ILLUSTRATED)
-
611483-24B01-H17 ...GASKET, GENERATOR COVER (NOT ILLUSTRATED)...GASKET, GENERATOR COVER (NOT ILLUSTRATED)
-
711485-24B20 ...GASKET, GEAR SHIFT COVER (NOT ILLUSTRATED)...GASKET, GEAR SHIFT COVER (NOT ILLUSTRATED)
-
814181-45C00 ...GASKET, EXHAUST PIPE (NOT ILLUSTRATED)...GASKET, EXHAUST PIPE (NOT ILLUSTRATED)
-
909168-06023 ...GASKET (5.8X13X1.2) (NOT ILLUSTRATED)...GASKET (5.8X13X1.2) (NOT ILLUSTRATED)
-
1009168-10031 ...GASKET (10.2X20X2.3) (NOT ILLUSTRATED)...GASKET (10.2X20X2.3) (NOT ILLUSTRATED)
-
1109280-07004 ...O RING (D:1.9,ID:6.8) (NOT ILLUSTRATED)...O RING (D:1.9,ID:6.8) (NOT ILLUSTRATED)
-
1209280-09005 ...O RING (D:1.9,ID:8.6) (NOT ILLUSTRATED)...O RING (D:1.9,ID:8.6) (NOT ILLUSTRATED)
-
1309280-10013 ...O RING (D:2.4,ID:9.6) (NOT ILLUSTRATED)...O RING (D:2.4,ID:9.6) (NOT ILLUSTRATED)
-
1409280-15007 ...O RING (D:2.4,ID:15.8) (NOT ILLUSTRATED)...O RING (D:2.4,ID:15.8) (NOT ILLUSTRATED)
-
1509280-17003 ...O RING (D:3.1,ID:16.8) (NOT ILLUSTRATED)...O RING (D:3.1,ID:16.8) (NOT ILLUSTRATED)
-
1609280-24010 ...O RING (D:2.4,ID:23.7) (NOT ILLUSTRATED)...O RING (D:2.4,ID:23.7) (NOT ILLUSTRATED)
-
1709280-33004 ...O RING (D:3.1,ID:32.7) (NOT ILLUSTRATED)...O RING (D:3.1,ID:32.7) (NOT ILLUSTRATED)
-
1809280-46002 ...O RING (D:2.4,ID:46.0) (NOT ILLUSTRATED)...O RING (D:2.4,ID:46.0) (NOT ILLUSTRATED)
-
1909280-60004 ...O RING (D:2.4,ID:23) (NOT ILLUSTRATED)...O RING (D:2.4,ID:23) (NOT ILLUSTRATED)
-
2009280-72001 ...O RING (D:2.4,ID:73) (NOT ILLUSTRATED)...O RING (D:2.4,ID:73) (NOT ILLUSTRATED)
