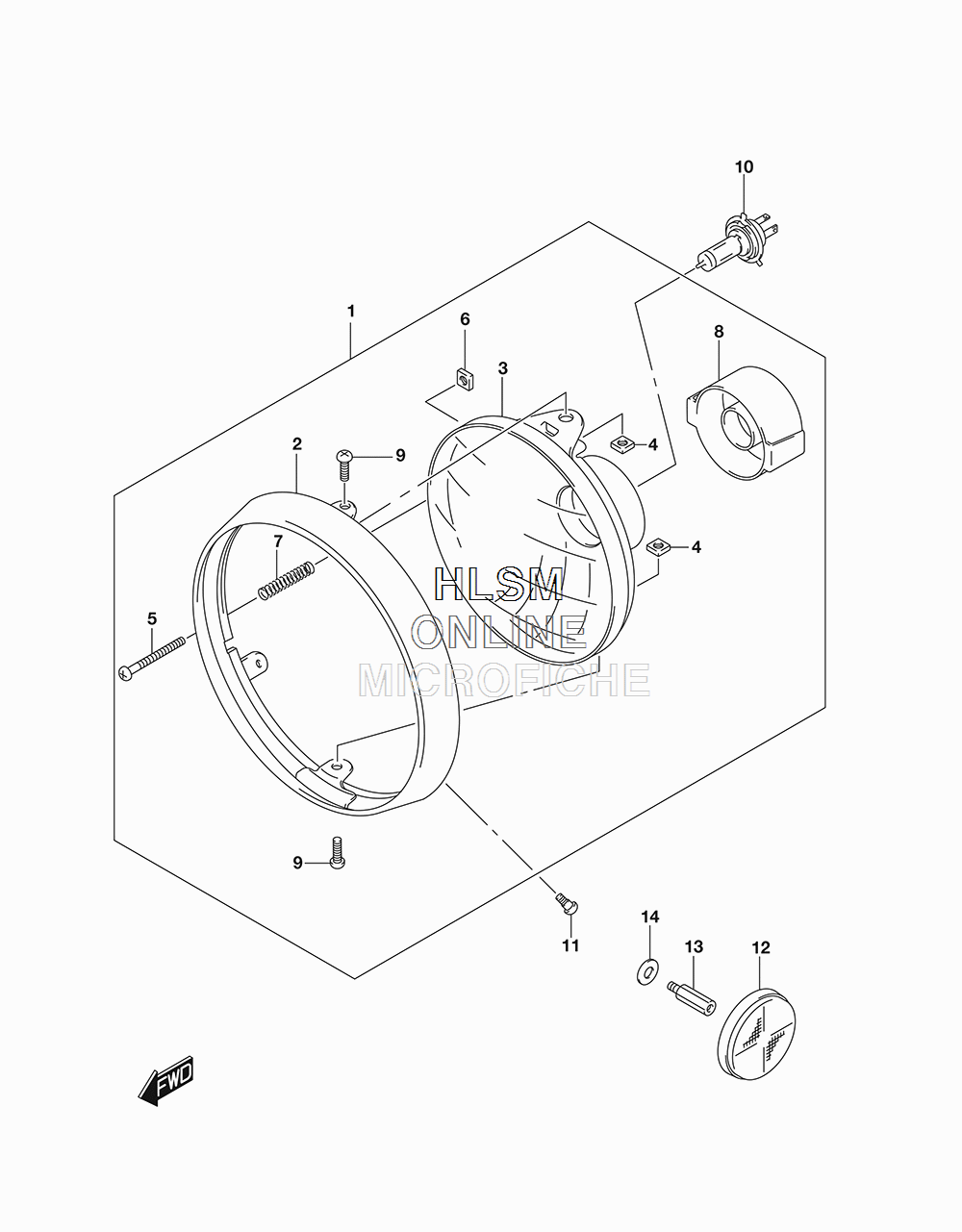

HEADLAMP для Suzuki SV650 ABS - 2018 года выпуска
-
№АртикулНазвание
-
135100-19F00-999 HEADLAMP ASSYHEADLAMP ASSY
-
235111-19F00 ...RIM...RIM
-
335121-19F00 ...LAMP UNIT...LAMP UNIT
-
435135-45900 ...NUT...NUT
-
535151-19F00 ...SCREW, ADJUSTING...SCREW, ADJUSTING
-
635152-45600 ...NUT...NUT
-
735154-13F00 ...SPRING...SPRING
-
835174-19F00 ...COVER, SOCKET...COVER, SOCKET
-
935181-19F00 ...SCREW (5X16)...SCREW (5X16)
-
1009471-12185 BULB (12V,60/55W)BULB (12V,60/55W)
-
1109139-05038 SCREW (5X15.3)SCREW (5X15.3)
-
1235950-14A11 REFLEX REFLECTOR ASSY, FR SIDEREFLEX REFLECTOR ASSY, FR SIDE
-
1309119-05023 BOLT (5X10)BOLT (5X10)
-
1408322-0105B WASHERWASHER
