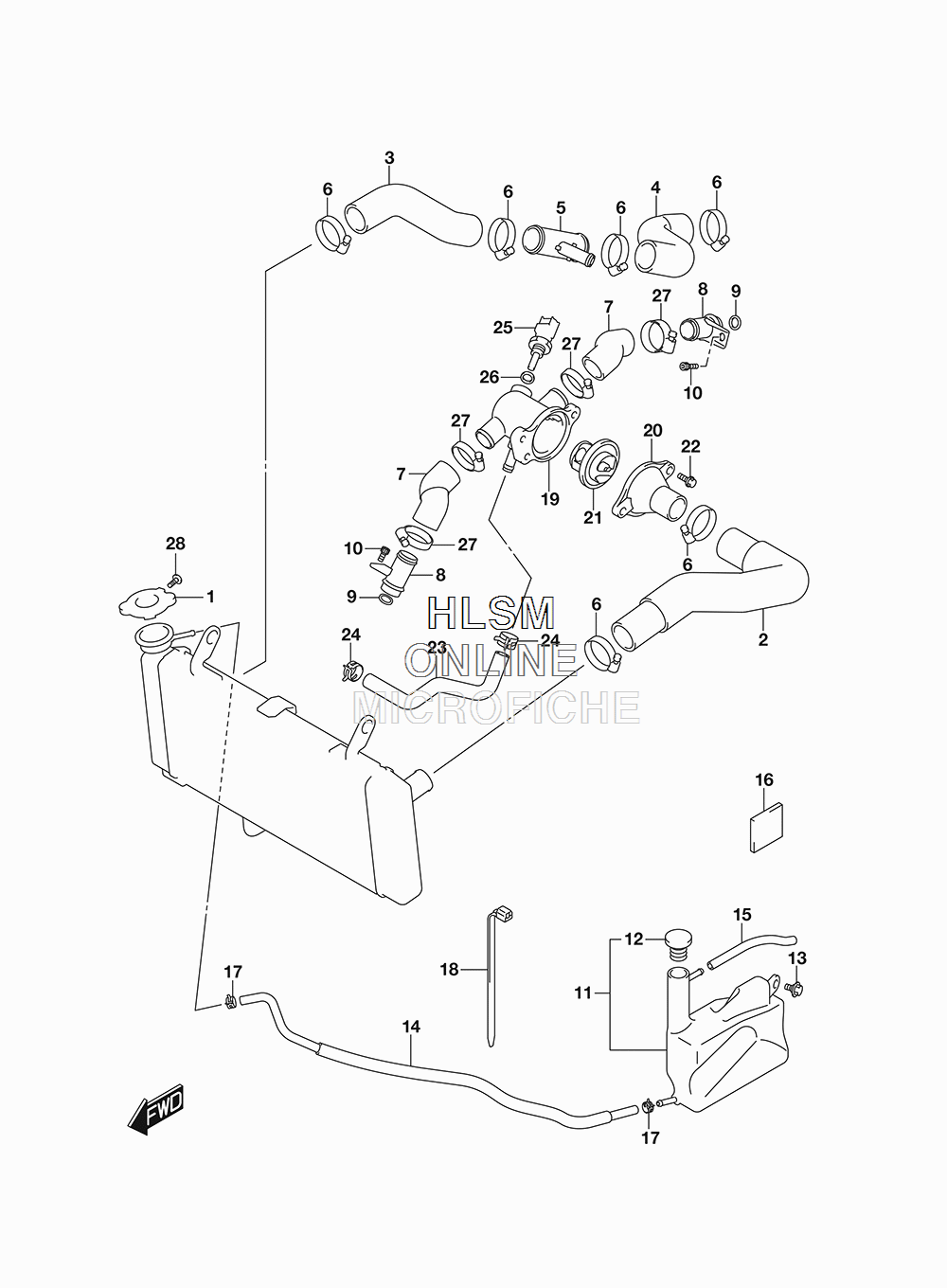

RADIATOR HOSE W/ RESERVOIR для Suzuki SV650 ABS - 2018 года выпуска
-
№АртикулНазвание
-
117730-08D10 CAP, RADIATOR (1.1)CAP, RADIATOR (1.1)
-
217851-44H00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
317852-44H00 HOSE, RADIATOR OUTLET NO.1HOSE, RADIATOR OUTLET NO.1
-
417854-18K00 HOSE, RADIATOR OUTLET NO.2HOSE, RADIATOR OUTLET NO.2
-
517881-18K00 PIPE, WATER HOSE THREE WAYPIPE, WATER HOSE THREE WAY
-
609402-35501 CLAMPCLAMP
-
717853-19F00 HOSE, CONNECTOR INLETHOSE, CONNECTOR INLET
-
817890-06G20 UNION, CONNECTOR HOSEUNION, CONNECTOR HOSE
-
909280-18008 O RING (D:3.2,ID:17.8)O RING (D:3.2,ID:17.8)
-
1007130-0612A BOLTBOLT
-
1117910-18K00 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
1217931-02FA0 ...CAP, RESERVOIR TANK...CAP, RESERVOIR TANK
-
1309111-06083 BOLT (6X12)BOLT (6X12)
-
1417981-44H00 HOSE, RESERVOIR TANK INLETHOSE, RESERVOIR TANK INLET
-
1509352-50901-600 HOSE (5X9X600) (L:600->180)HOSE (5X9X600) (L:600->180)
-
1663191-25C00 CUSHION, RESERVOIR TANK (CUT AS REQUIRED)CUSHION, RESERVOIR TANK (CUT AS REQUIRED)
-
1709401-08411 CLIPCLIP
-
1809407-18402 CLAMP (L:165)CLAMP (L:165)
-
1917662-02F11 CONNECTOR, THERMOSTAT INLETCONNECTOR, THERMOSTAT INLET
-
2017663-17G00 CAP, THERMOSTAT CONNECTORCAP, THERMOSTAT CONNECTOR
-
2117670-06G60 THERMOSTAT, WATERTHERMOSTAT, WATER
-
2201547-0616A BOLTBOLT
-
2317856-44H00 HOSE, CONNECTOR TO WATER PUMPHOSE, CONNECTOR TO WATER PUMP
-
2409401-12414 CLIPCLIP
-
2513650-49X00 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
2609168-12017 GASKET (12X17X1)GASKET (12X17X1)
-
2709402-28513 CLAMPCLAMP
-
2817733-03D10 SCREWSCREW
