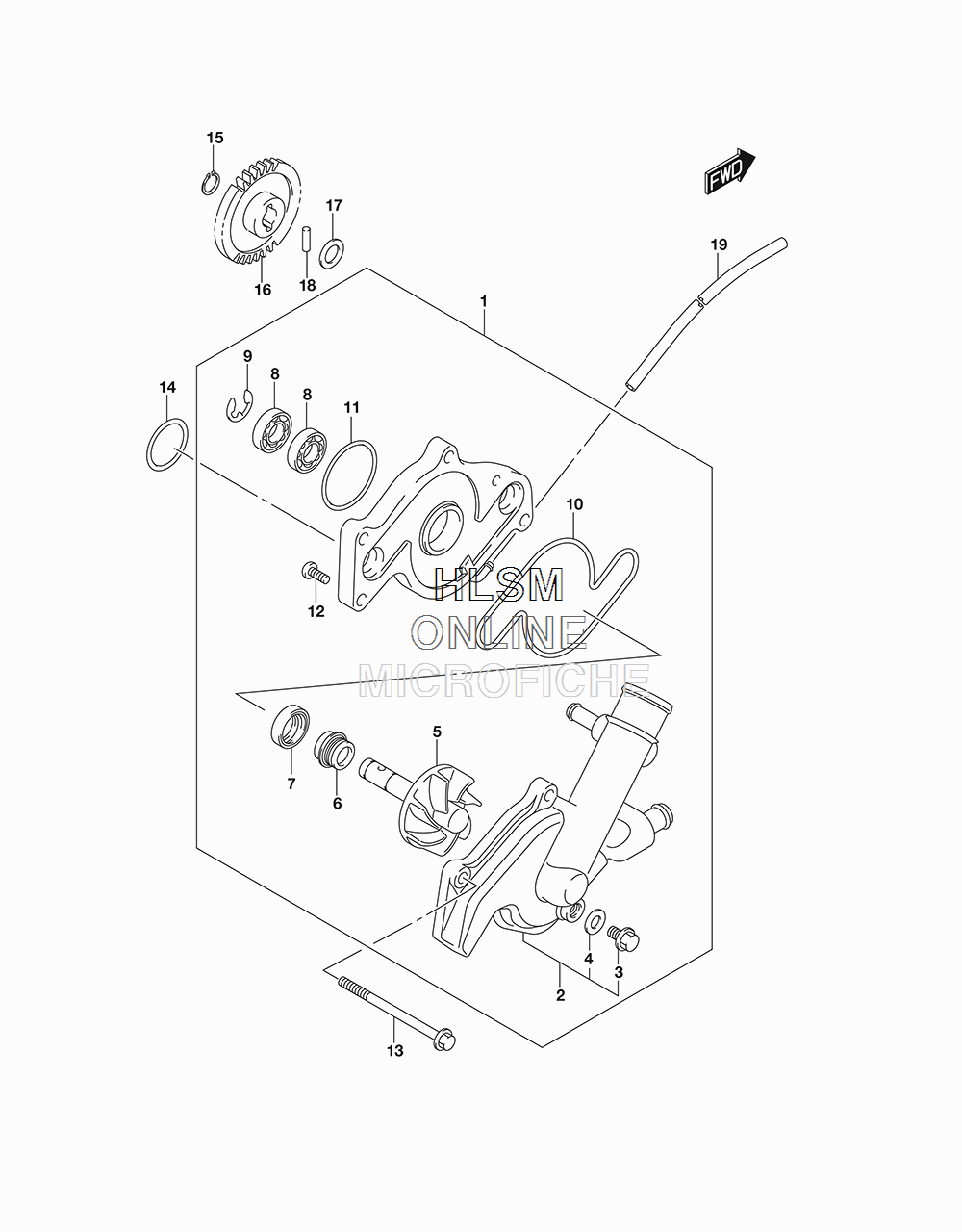

WATER PUMP для Suzuki SV650 ABS - 2018 года выпуска
-
№АртикулНазвание
-
117400-18K00 PUMP ASSY, WATERPUMP ASSY, WATER
-
217411-18K00 ...CASE, WATER PUMP...CASE, WATER PUMP
-
317415-20920 ......BOLT......BOLT
-
409168-08008 ......GASKET (8.2X14X1)......GASKET (8.2X14X1)
-
517491-19F40 ...IMPELLER/SHAFT...IMPELLER/SHAFT
-
617470-02F10 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
717461-48G00 ...OIL SEAL (10X21X5)...OIL SEAL (10X21X5)
-
809262-10014 ...BEARING (10X26X8)...BEARING (10X26X8)
-
908332-1108A ...E RING...E RING
-
1017418-19F00 ...O RING...O RING
-
1117435-33400 ...O RING...O RING
-
1202112-0510A ...SCREW...SCREW
-
1309103-06225 BOLT (6X70)BOLT (6X70)
-
1409280-22001 O RING (D:2.4,ID:21.8)O RING (D:2.4,ID:21.8)
-
1508331-31109 CIRCLIPCIRCLIP
-
1617461-44H00 GEAR, WATER PUMP DRIVEN (NT:34)GEAR, WATER PUMP DRIVEN (NT:34)
-
1709181-10158 SHIM (10X18X0.5)SHIM (10X18X0.5)
-
1809261-04002 ROLLER (4X13.8)ROLLER (4X13.8)
-
1909352-35653-600 HOSE (3.5X6.5X600) (L:600->320)HOSE (3.5X6.5X600) (L:600->320)
