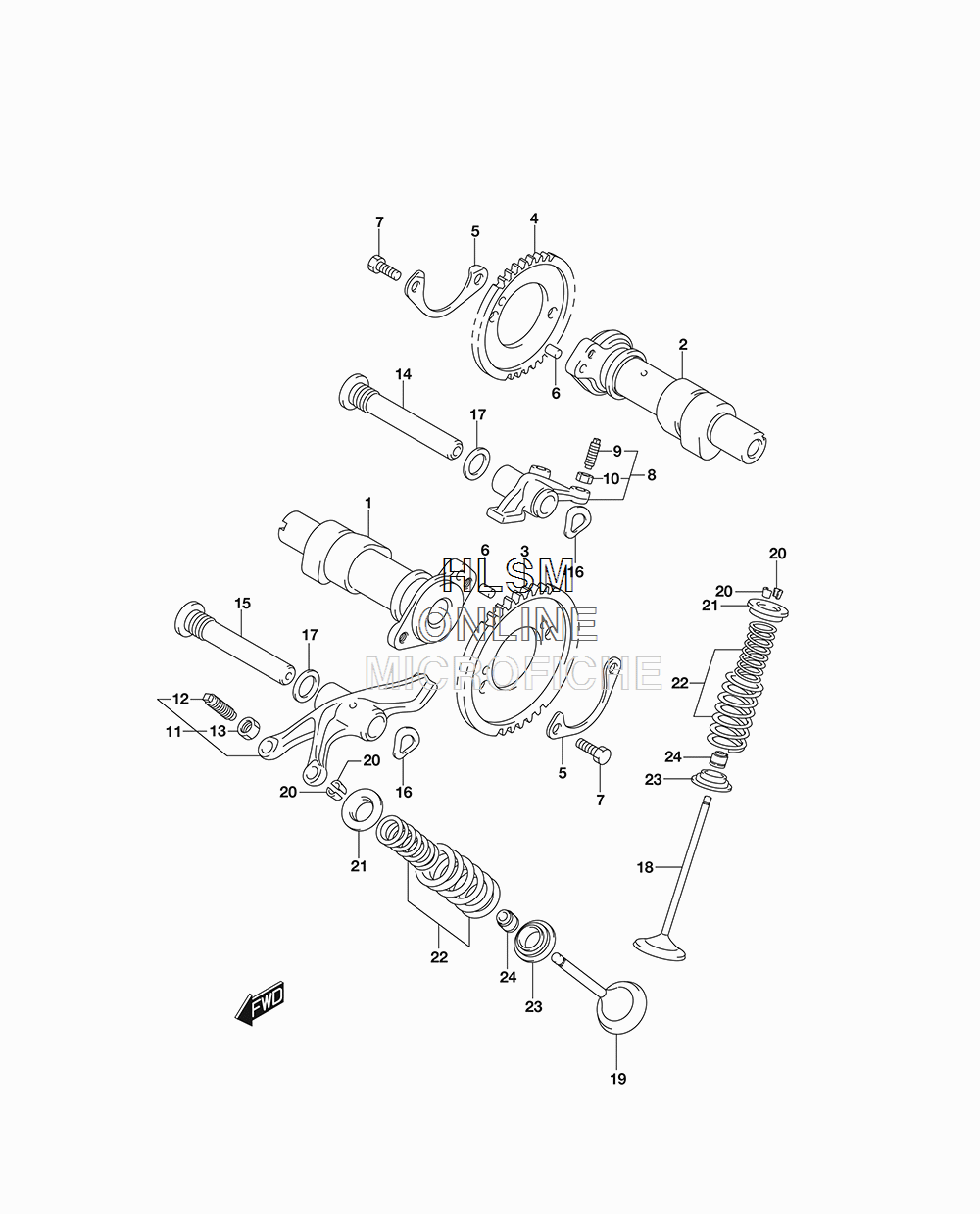

CAMSHAFT W/ VALVES для Suzuki VL800T C50T - 2018 года выпуска
-
№АртикулНазвание
-
112711-41F00 CAMSHAFT, FRONTCAMSHAFT, FRONT
-
212713-41F00 CAMSHAFT, REARCAMSHAFT, REAR
-
312741-41F00 SPROCKET, CAMSHAFT FRONT (NT:46)SPROCKET, CAMSHAFT FRONT (NT:46)
-
412741-37400 SPROCKET, CAMSHAFT REAR (NT:42)SPROCKET, CAMSHAFT REAR (NT:42)
-
512747-44001 WASHERWASHER
-
604221-05109 PINPIN
-
709100-06169 BOLT (6X12.5)BOLT (6X12.5)
-
812840-38A11 ARM, VALVE ROCKER INTAKEARM, VALVE ROCKER INTAKE
-
912842-38A00 ...SCREW...SCREW
-
1012843-32400 ...NUT...NUT
-
1112850-38A10 ARM, VALVE ROCKER EXHAUSTARM, VALVE ROCKER EXHAUST
-
1212842-38A00 ...SCREW...SCREW
-
1312843-32400 ...NUT...NUT
-
1412861-39G00 SHAFT, VALVE ROCKER ARM INTAKSHAFT, VALVE ROCKER ARM INTAK
-
1512871-39G00 SHAFT, VALVE ROCKER ARM EXHAUSTSHAFT, VALVE ROCKER ARM EXHAUST
-
1609164-12018 WASHERWASHER
-
1709168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1812911-38A03 VALVE, INTAKEVALVE, INTAKE
-
1912912-38A03 VALVE, EXHAUSTVALVE, EXHAUST
-
2012932-24400 COTTER, VALVECOTTER, VALVE
-
2112931-33201 RETAINER, SPRINGRETAINER, SPRING
-
2212920-38A00 SPRING SET, VALVESPRING SET, VALVE
-
2312933-33201 SEAT, SPRINGSEAT, SPRING
-
2409289-05015 OIL SEAL (5.5X11X8.2)OIL SEAL (5.5X11X8.2)
