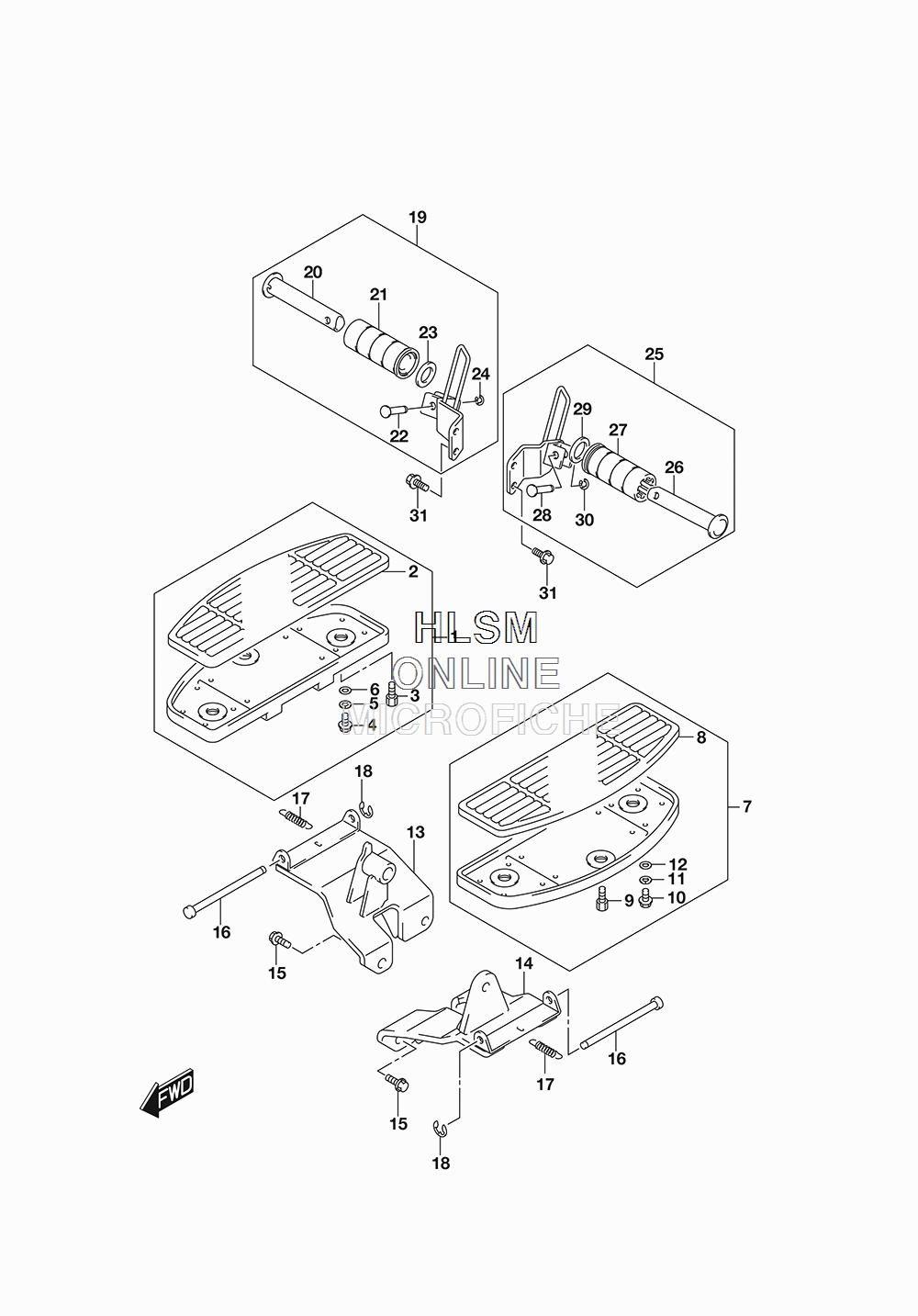

FOOTREST для Suzuki VL800T C50T - 2018 года выпуска
-
№АртикулНазвание
-
143501-10F11 FOOTREST ASSY, FRONT (RH)FOOTREST ASSY, FRONT (RH)
-
243550-10F10 ...RUBBER...RUBBER
-
343576-07D01 ...BOLT, BANK SENSOR...BOLT, BANK SENSOR
-
401550-0610A ...BOLT...BOLT
-
509160-06158 ...WASHER (6.5X22X1.6)...WASHER (6.5X22X1.6)
-
609320-10036 ...CUSHION...CUSHION
-
743502-10F11 FOOTREST ASSY, FRONT (LH)FOOTREST ASSY, FRONT (LH)
-
843550-10F10 ...RUBBER...RUBBER
-
943576-07D01 ...BOLT, BANK SENSOR...BOLT, BANK SENSOR
-
1001550-0610A ...BOLT...BOLT
-
1109160-06158 ...WASHER (6.5X22X1.6)...WASHER (6.5X22X1.6)
-
1209320-10036 ...CUSHION...CUSHION
-
1343510-41F30 BRACKET, FRONT FOOTREST (RH)BRACKET, FRONT FOOTREST (RH)
-
1443520-41F30 BRACKET, FRONT FOOTREST (LH)BRACKET, FRONT FOOTREST (LH)
-
1501580-1030B BOLTBOLT
-
1643539-10F00 PINPIN
-
1709443-11033 SPRINGSPRING
-
1808332-1106A E RINGE RING
-
1943600-41F60 FOOTREST ASSY, PILLION (RH)FOOTREST ASSY, PILLION (RH)
-
2043610-39G10 ...BAR...BAR
-
2143612-39G00 ...RUBBER...RUBBER
-
2243636-25D00 ...PIN...PIN
-
2309160-19024 ...WASHER (19.5X32X2)...WASHER (19.5X32X2)
-
2408332-1104B ...E RING...E RING
-
2543700-41F60 FOOTREST ASSY, PILLION (LH)FOOTREST ASSY, PILLION (LH)
-
2643610-39G10 ...BAR...BAR
-
2743612-39G00 ...RUBBER...RUBBER
-
2843636-25D00 ...PIN...PIN
-
2909160-19024 ...WASHER (19.5X32X2)...WASHER (19.5X32X2)
-
3008332-1104B ...E RING...E RING
-
3109103-08412 BOLT (8X16)BOLT (8X16)
