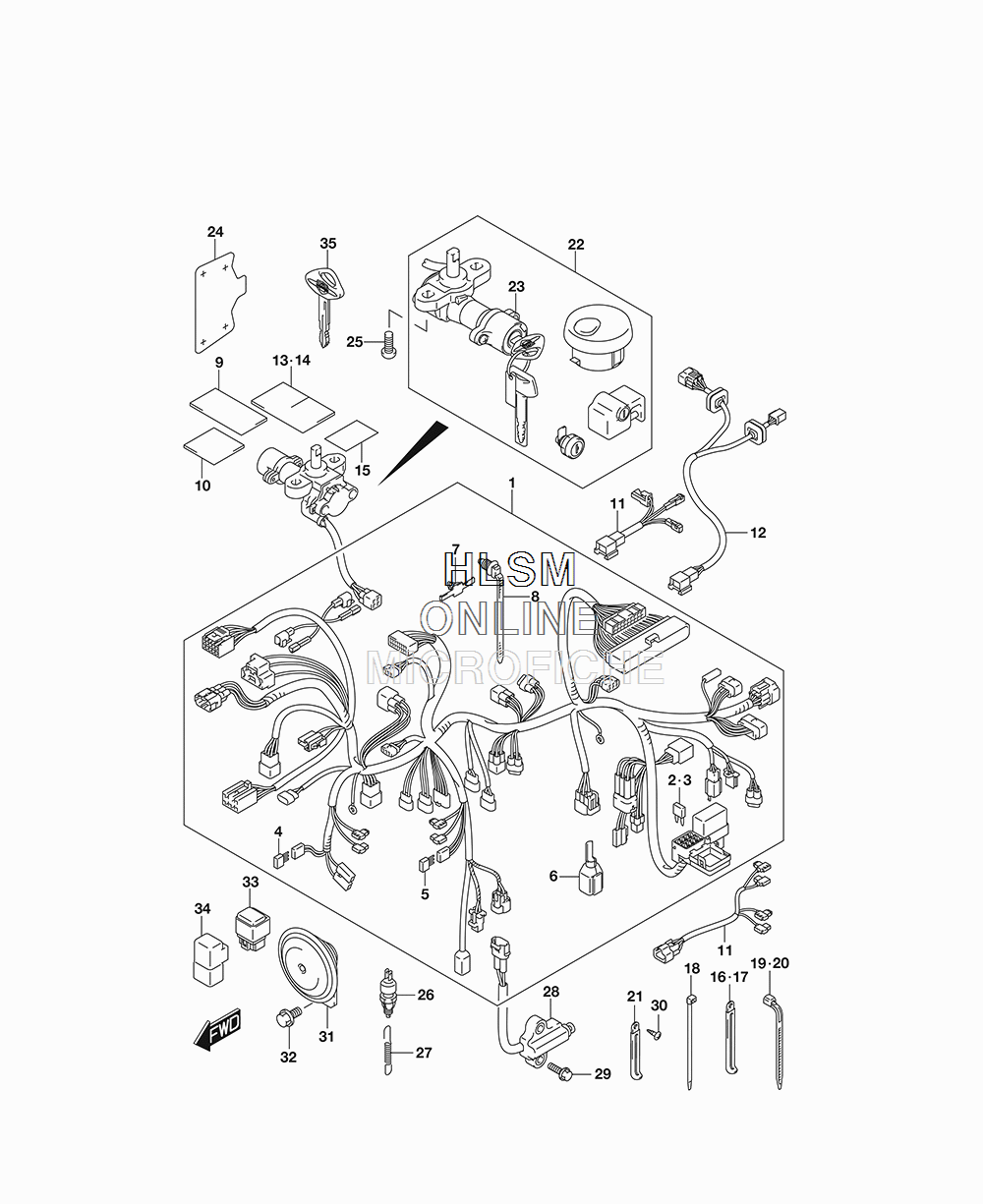

WIRING HARNESS (CANADA) для Suzuki VL800T C50T - 2018 года выпуска
-
№АртикулНазвание
-
136610-43H60 HARNESS, WIRINGHARNESS, WIRING
-
209481-10501 ...FUSE (10A)...FUSE (10A)
-
309481-20501 ...FUSE (20A)...FUSE (20A)
-
432800-16A00 ...RECTIFIER ASSY...RECTIFIER ASSY
-
536611-38A00 ...DIODE...DIODE
-
636717-41F00 ...BOOT...BOOT
-
709407-05410 ...CLAMP...CLAMP
-
809407-17403 ...CLAMP (L:170)...CLAMP (L:170)
-
936611-16G00 TAPE WIRING (28X50X0.13)TAPE WIRING (28X50X0.13)
-
1036611-41F00 TAPE WIRING (30X50X3)TAPE WIRING (30X50X3)
-
1136856-41F00 WIRE, REAR COMBINATION NO.2WIRE, REAR COMBINATION NO.2
-
1236858-41F00 WIRE, REAR COMBINATIONWIRE, REAR COMBINATION
-
1336920-33C00 PROTECTOR, HARNESS (30X50X3)PROTECTOR, HARNESS (30X50X3)
-
1436920-33C00 PROTECTOR, HARNESS (30X50X3)PROTECTOR, HARNESS (30X50X3)
-
1594474-17H00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
1609404-06433 CLAMP (L:80)CLAMP (L:80)
-
1709404-06435 CLAMP (L:135)CLAMP (L:135)
-
1809407-14407 CLAMP (L:145)CLAMP (L:145)
-
1909407-18402 CLAMP (L:165)CLAMP (L:165)
-
2009407-19401 CLAMP (L:190)CLAMP (L:190)
-
2109404-06429 CLAMP (L:45)CLAMP (L:45)
-
2237102-41870 LOCK SETLOCK SET
-
2337100-41F70 ...LOCK ASSY, STEERING...LOCK ASSY, STEERING
-
2437187-41F10 PROTECTOR, IGNITION SWITCHPROTECTOR, IGNITION SWITCH
-
2509139-08016 BOLT (8X20)BOLT (8X20)
-
2637740-24A00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2709443-06073 SPRINGSPRING
-
2837840-41F00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2901550-0620A BOLT (6X20)BOLT (6X20)
-
3003541-0512A SCREWSCREW
-
3138500-41F30 HORN ASSYHORN ASSY
-
3201550-0816A BOLTBOLT
-
3338740-24A00 RELAY ASSY, HEAD LAMPRELAY ASSY, HEAD LAMP
-
3438740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
3537146-41FA0 KEY, BLANK "BOULEVARD" (OPT)KEY, BLANK "BOULEVARD" (OPT)
