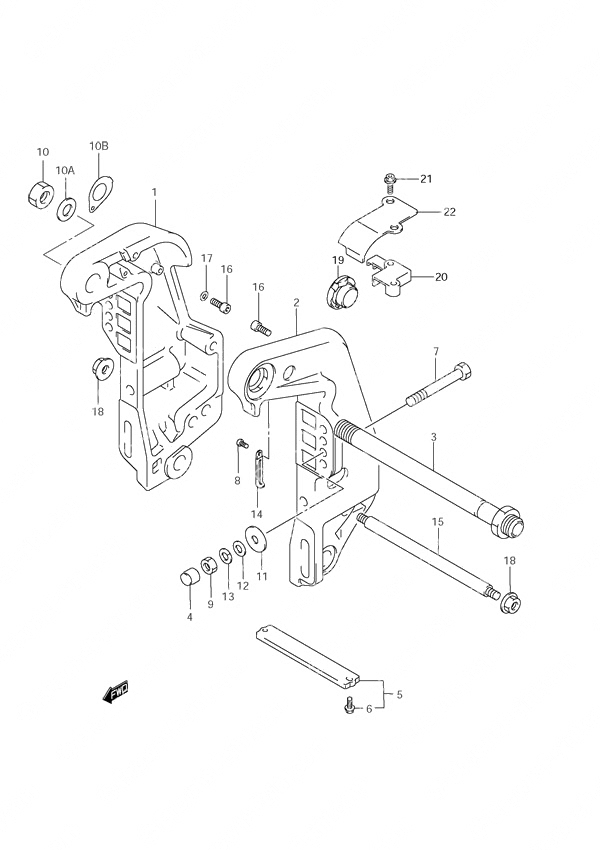

Fig. 35 - Clamp Bracket для Suzuki DF 60 - 2001 года выпуска
-
№АртикулНазвание
-
1-141111-90J01-0EP Starboard Clamp Bracket (NLA)
S/N 151001 to 151143Starboard Clamp Bracket (NLA)
S/N 151001 to 151143 -
1-241111-90J12-0EP Starboard Clamp Bracket (NLA)
S/N 151144 to 15XXXXStarboard Clamp Bracket (NLA)
S/N 151144 to 15XXXX -
2-141121-90J01-0EP Port Clamp Bracket (NLA)
S/N 151001 to 151143Port Clamp Bracket (NLA)
S/N 151001 to 151143 -
2-241121-90J13-0EP Port Clamp Bracket (NLA)
S/N 151144 to 15XXXXPort Clamp Bracket (NLA)
S/N 151144 to 15XXXX -
341130-95541-000 Clamp Bracket ShaftClamp Bracket Shaft
-
441153-94500-000 Transom Bolt CapTransom Bolt Cap
-
555320-94900-000 Protection Anode SetProtection Anode Set
-
609116-06121-000 • Bolt (6x25)• Bolt (6x25)
-
7-109100-12045-000 Bolt (12x115) (NLA)
Used w/Ref# 9-2Bolt (12x115) (NLA)
Used w/Ref# 9-2 -
7-209100-12090-000 Transom Bolt (12x150)
Optional
Used w/Ref# 9-2Transom Bolt (12x150)
Optional
Used w/Ref# 9-2 -
809125-06063-000 Screw (6x10)Screw (6x10)
-
9-109140-12028-000 NutNut
-
9-209159-12014-000 Nut (12x17)Nut (12x17)
-
1009159-22006-000 NutNut
-
1109160-12044-000 Washer (12.5x35x3.2)Washer (12.5x35x3.2)
-
1209160-12066-000 Washer (12.5x22x2.5)Washer (12.5x22x2.5)
-
1309162-12005-000 Lock WasherLock Washer
-
1429404-93J11-000 Clamp (L:65)Clamp (L:65)
-
1545421-90J00-000 Tilt Lock Pin
OptionalTilt Lock Pin
Optional -
1609106-10065-000 Bolt (10x20)Bolt (10x20)
-
1709160-10082-000 Washer (10.5x19x2.0)Washer (10.5x19x2.0)
-
1809159-14020-000 Nut (14mm)
OptionalNut (14mm)
Optional
