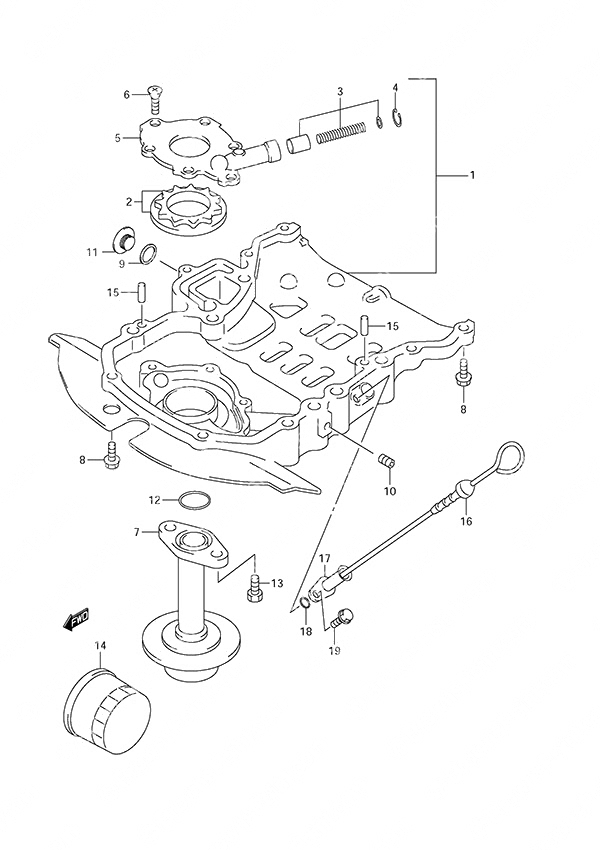

Fig. 18 - Oil Pump для Suzuki DF 40 - 2002 года выпуска
-
№АртикулНазвание
-
116100-87J11-000 Oil Pump Case AssemblyOil Pump Case Assembly
-
216130-70B01-000 • Oil Pump Rotor Set• Oil Pump Rotor Set
-
316150-60A20-000 • Oil Pump Relief Valve Set• Oil Pump Relief Valve Set
-
408331-4115A-000 • Circlip• Circlip
-
516161-87J00-000 • Oil Pump Rotor Plate (NLA)• Oil Pump Rotor Plate (NLA)
-
602112-0616A-000 • Screw• Screw
-
716520-87J00-000 Oil Pump Strainer (NLA)Oil Pump Strainer (NLA)
-
829116-93J10-000 Bolt (8x35)Bolt (8x35)
-
909160-18031-000 Exhaust Plug GasketExhaust Plug Gasket
-
1011118-98J01-000 PlugPlug
-
1109248-18006-000 Exhaust PlugExhaust Plug
-
1209280-16005-000 O-RingO-Ring
-
1301570-0616A-000 BoltBolt
-
1416510-87J01-000 Oil FilterOil Filter
-
1504221-08149-000 PinPin
-
1616910-87J00-000 Oil Level GaugeOil Level Gauge
-
1716930-87J01-000 Oil Level Gauge Guide (NLA)Oil Level Gauge Guide (NLA)
-
1809280-09008-000 O-RingO-Ring
-
1901550-06127-000 Bolt (6x12)Bolt (6x12)
