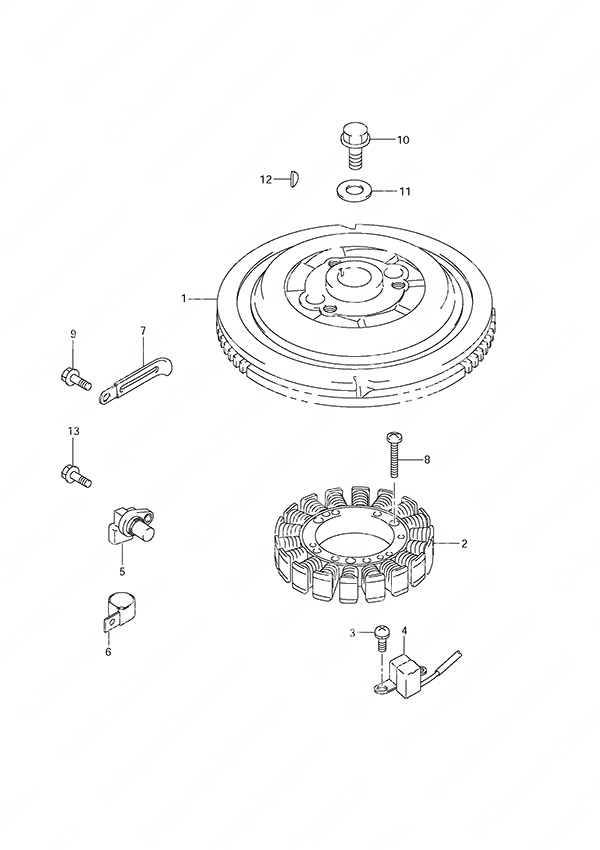

Fig. 28 - Magneto для Suzuki DF 40 - 2002 года выпуска
-
№АртикулНазвание
-
132102-87J11-000 Flywheel (NLA)Flywheel (NLA)
-
232120-87J10-000 Battery Charge CoilBattery Charge Coil
-
302112-0512A-000 ScrewScrew
-
432160-87J00-000 CKP/Ignition Timing CoilCKP/Ignition Timing Coil
-
533220-76G02-000 Cam Position SensorCam Position Sensor
-
609403-14204-000 Clamp (NLA)Clamp (NLA)
-
729404-93J11-000 Clamp (L:65)Clamp (L:65)
-
802112-0630A-000 ScrewScrew
-
901550-06127-000 Bolt (6x12)Bolt (6x12)
-
1009103-16001-000 Flywheel Bolt (16x40)Flywheel Bolt (16x40)
-
1109160-16046-000 Washer (16.5x36x4.5) (NLA)Washer (16.5x36x4.5) (NLA)
-
1208341-31059-000 Woodruff Key 5mmWoodruff Key 5mm
-
1301550-06167-000 Bolt (6x16)Bolt (6x16)
