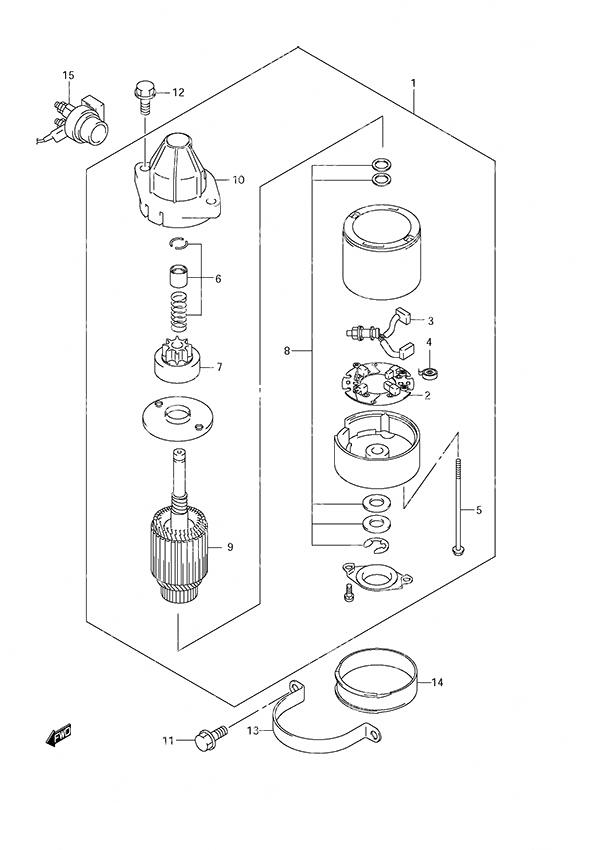

Fig. 25 - Starting Motor для Suzuki DF 40 - 2002 года выпуска
-
№АртикулНазвание
-
131100-87J11-000 Starter Motor AssemblyStarter Motor Assembly
-
231173-99E00-000 • Brush Holder
Includes Brush (-)• Brush Holder
Includes Brush (-) -
331131-99E00-000 • Brush (+)• Brush (+)
-
431135-99E00-000 • Spring• Spring
-
531281-93340-000 • Through Bolt (NLA)• Through Bolt (NLA)
-
631312-87J10-000 • Pinion Stopper Set• Pinion Stopper Set
-
731320-87J10-000 • Pinion Assembly (NLA)• Pinion Assembly (NLA)
-
831360-87J10-000 • Washer Set (NLA)• Washer Set (NLA)
-
931310-87J10-000 • Armature (NLA)• Armature (NLA)
-
1031151-87J11-000 • Gear Case• Gear Case
-
1101550-08207-000 Bolt (8x20)Bolt (8x20)
-
1201550-08257-000 BoltBolt
-
1331912-94600-000 Starting Motor Band (NLA)Starting Motor Band (NLA)
-
1431918-94600-000 Lower Damper (NLA)Lower Damper (NLA)
-
1531800-94401-000 Starter RelayStarter Relay
