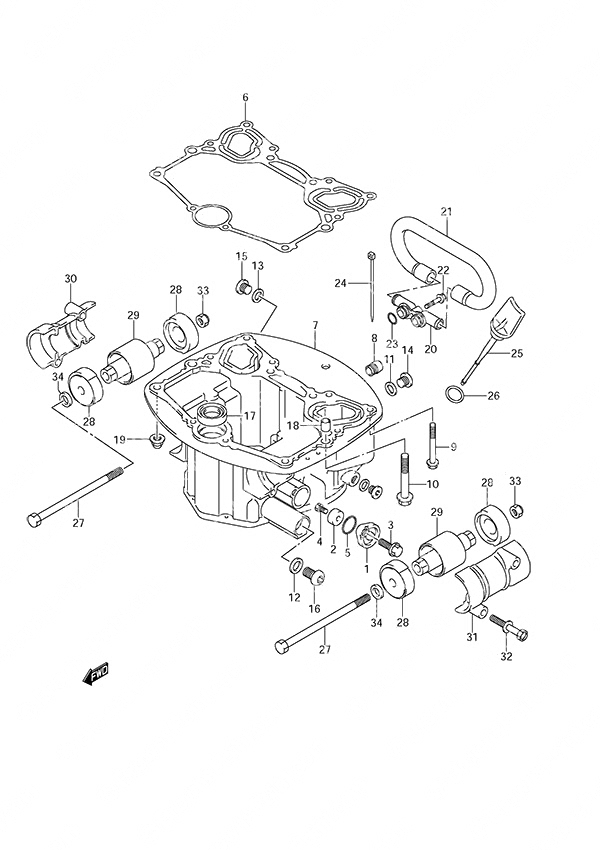

Fig. 14 - Oil Pan для Suzuki DF 25 V-Twin - 2007 года выпуска
-
№АртикулНазвание
-
111261-93J00-000 Protection Anode CoverProtection Anode Cover
-
2-155321-87J01-000 Aluminum AnodeAluminum Anode
-
2-255321-87J11-000 Magnesium Anode
Opt: Fresh Water Use OnlyMagnesium Anode
Opt: Fresh Water Use Only -
329103-93J30-000 Bolt (8x25)Bolt (8x25)
-
409103-06281-000 Bolt (6x14)Bolt (6x14)
-
509280-22019-000 O-RingO-Ring
-
611489-95J01-000 Oil Pan GasketOil Pan Gasket
-
711501-95J02-0EP Oil Pan (NLA)Oil Pan (NLA)
-
843112-94L01-000 Exhaust PipeExhaust Pipe
-
909116-08126-000 Bolt (8x65)Bolt (8x65)
-
1009116-10137-000 Bolt (10x70)Bolt (10x70)
-
1109168-12011-000 Water Plug GasketWater Plug Gasket
-
1209168-12012-000 Oil Drain Plug GasketOil Drain Plug Gasket
-
1309168-12017-000 Gasket (12x17x1)Gasket (12x17x1)
-
1409248-12007-000 Oil Drain PlugOil Drain Plug
-
1509248-12007-000 Oil Drain PlugOil Drain Plug
-
1609248-12009-000 Oil Drain PlugOil Drain Plug
-
1709282-15L01-000 Oil SealOil Seal
-
1804211-13149-000 PinPin
-
1908313-20087-000 NutNut
-
2011540-95J00-000 Exhaust PipeExhaust Pipe
-
2111543-95J00-000 Exhaust Hose (NLA)Exhaust Hose (NLA)
-
2209103-06196-000 Bolt (6x30) (NLA)Bolt (6x30) (NLA)
-
2309280-15003-000 O-RingO-Ring
-
2409407-14407-000 Clamp (L:145)Clamp (L:145)
-
2511381-95J00-000 Oil Level Gauge (NLA)Oil Level Gauge (NLA)
-
2609280-16013-000 Oil Level Gauge O-RingOil Level Gauge O-Ring
-
2754112-95J01-000 Upper Mount Bolt (NLA)Upper Mount Bolt (NLA)
-
2854120-95J00-000 Upper Thrust Mount (NLA)Upper Thrust Mount (NLA)
-
2954130-95J00-000 Upper MountUpper Mount
-
3054148-95J00-0EP Stbd Upper Mount Cover (NLA)Stbd Upper Mount Cover (NLA)
-
3154149-95J00-0EP Port Upper Mount Cover (NLA)Port Upper Mount Cover (NLA)
-
3209116-08131-000 Bolt (8x45)Bolt (8x45)
-
3309159-10050-000 NutNut
-
3409160-10140-000 Washer (10.5x18x3)Washer (10.5x18x3)
