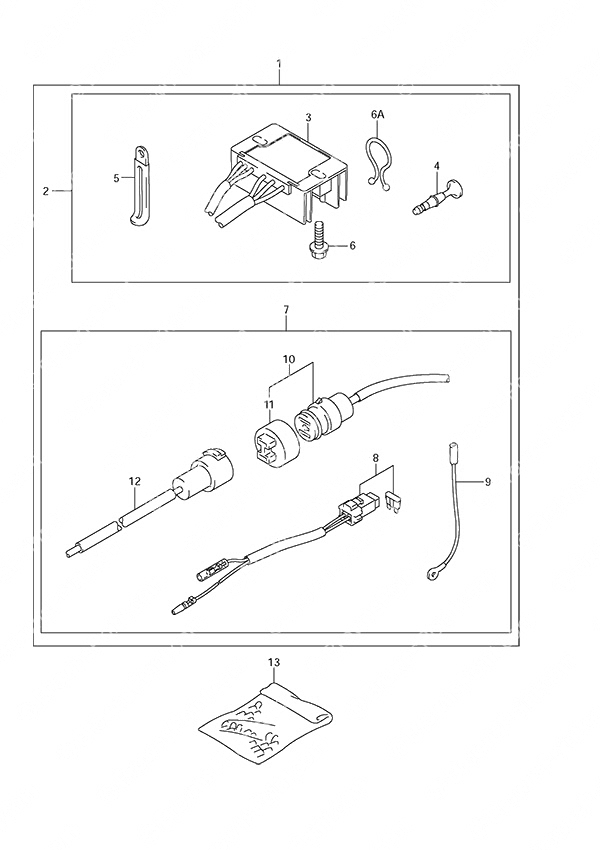

Fig. 42 - Opt: Electrical для Suzuki DF 25 V-Twin - 2007 года выпуска
-
№АртикулНазвание
-
132000-95J01-000 Battery Charging KitBattery Charging Kit
-
232801-95J00-000 • Rectifier/Regulator Set (NLA)• Rectifier/Regulator Set (NLA)
-
332800-95J01-000 •• Rectifier & Regulator Assembly•• Rectifier & Regulator Assembly
-
436615-96300-000 •• Resin Terminal•• Resin Terminal
-
529404-93J11-000 •• Clamp (L:65)•• Clamp (L:65)
-
601550-06257-000 •• Bolt•• Bolt
-
6A09408-00024-000 •• Clamp
For Ref# 2-2•• Clamp
For Ref# 2-2 -
739600-95J00-000 • Receptacle Set (NLA)• Receptacle Set (NLA)
-
836740-95J00-000 •• Fuse Case Assembly (NLA)•• Fuse Case Assembly (NLA)
-
937801-98300-000 •• Lead (NLA)•• Lead (NLA)
-
1039601-95D00-000 •• Lighting Receptacle Assembly•• Lighting Receptacle Assembly
-
1136634-93910-000 •• • Connector Cap•• • Connector Cap
-
1239602-93900-000 •• Lamp Cord Plug Assembly•• Lamp Cord Plug Assembly
-
1336990-87D00-000 Terminal & Sleeve SetTerminal & Sleeve Set
