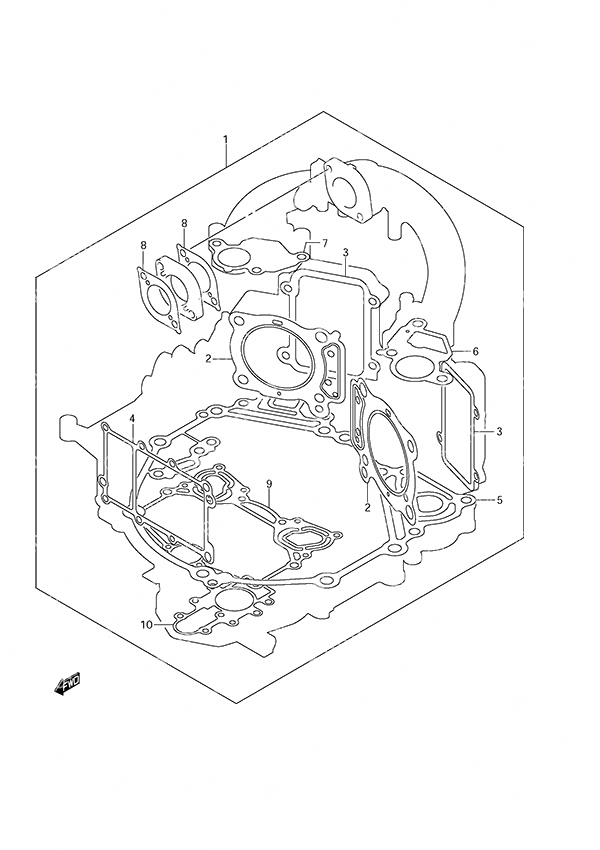

Fig. 46 - Opt: Gasket Set для Suzuki DF 25 V-Twin - 2007 года выпуска
-
№АртикулНазвание
-
211141-95J00-000 • Cylinder Head Gasket• Cylinder Head Gasket
-
311189-95J00-000 • Cylinder Head Cover Gasket• Cylinder Head Cover Gasket
-
411219-95J01-000 • Cylinder Block Cover Gasket• Cylinder Block Cover Gasket
-
511351-95J01-000 • Crankcase Gasket• Crankcase Gasket
-
613119-95J00-000 • Port Intake Manifold Gasket• Port Intake Manifold Gasket
-
713122-95J00-000 • Stbd Intake Manifold Gasket• Stbd Intake Manifold Gasket
-
813125-95J00-000 • Carburetor Gasket• Carburetor Gasket
-
911489-95J01-000 • Oil Pan Gasket• Oil Pan Gasket
-
1056132-95J00-000 • Drive Shaft Housing Gasket• Drive Shaft Housing Gasket
-
1199011-95J01-03A Owners Manual DF 25 V-Twin - 2007Owners Manual DF 25 V-Twin - 2007
-
111410-95811-000 Engine Gasket SetEngine Gasket Set
