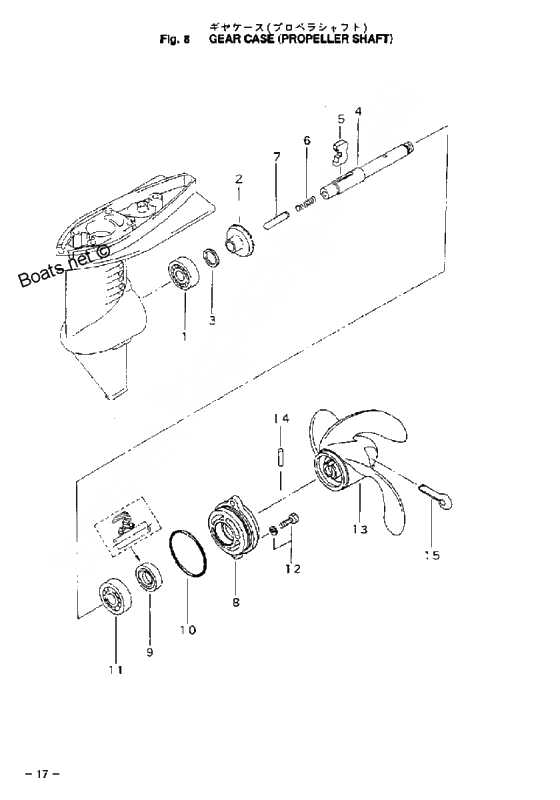

Gear case (propeller shaft) для Tohatsu M3.5B - 2002 года выпуска
-
№АртикулНазвание
-
19601-0-6004 Ball BearingBall Bearing
-
2369-64010-1 Bevel gear a assy (with busing)Bevel gear a assy (with busing)
-
3369-64014-0 Shim 21-28-0.1Shim 21-28-0.1
-
3369-64015-0 Shim 21-28-0.15Shim 21-28-0.15
-
43F0-64211-0 Propeller ShaftPropeller Shaft
-
53F0-64215-0 ClutchClutch
-
63F0-64221-0 Spring ClutchSpring Clutch
-
73F0-64223-0 Push Rod ClutchPush Rod Clutch
-
83F0S60101-1 Housing,propeller shaftHousing,propeller shaft
-
9309-60111-0 Oil Seal 12-24-8Oil Seal 12-24-8
-
10345-65015-0 O-RingO-Ring
-
119601-0-6001 Ball BearingBall Bearing
-
133F0-64101-0 Prop 3 blade resin (7.4 dia. x 7 pitch) plastic
for Transom S & L: STDProp 3 blade resin (7.4 dia. x 7 pitch) plastic
for Transom S & L: STD -
133F0-64102-0 Propeller 6 p alum-2.5a/3.5a/3.5b
OptionPropeller 6 p alum-2.5a/3.5a/3.5b
Option -
3F0B64512-0 Propeller 6 p alum-2.5a/3.5a/3.5bPropeller 6 p alum-2.5a/3.5a/3.5b
-
13309-64106-0 Prop 3 blade resin (7.4 dia. x 5.7 pitch)
OptionProp 3 blade resin (7.4 dia. x 5.7 pitch)
Option -
14309-64122-2 New partNew part
-
14309-64126-0 Shear pin b, 4-24 (for aluminiumShear pin b, 4-24 (for aluminium
-
15951503-0435 New partNew part
