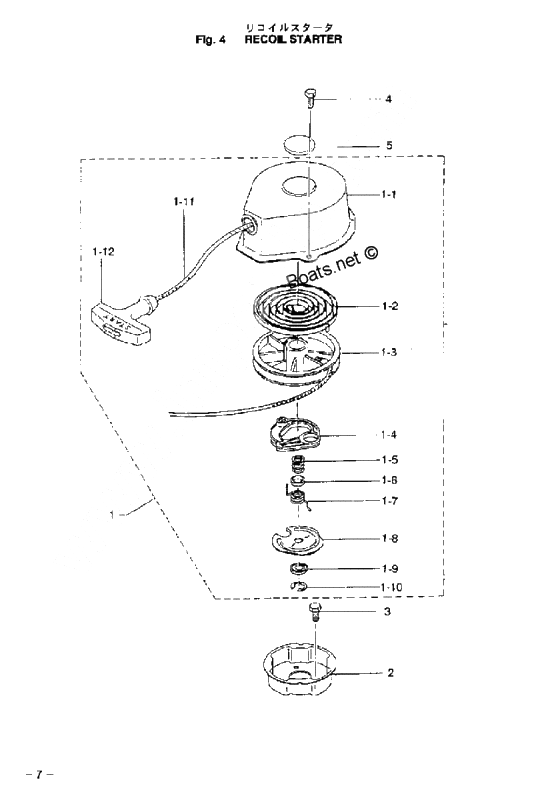

Recoil starter для Tohatsu M3.5B - 2002 года выпуска
-
№АртикулНазвание
-
1312-05000-0 Recoil starter ass'yRecoil starter ass'y
-
1-1312-05001-0 Starter CaseStarter Case
-
1-10307-05011-0 E-RingE-Ring
-
1-11307-05013-0 Starter RopeStarter Rope
-
1-12307-05019-0 Starter HandleStarter Handle
-
1-2307-05004-0 Spring WasherSpring Washer
-
1-3307-05104-0 ReelReel
-
1-4307-05003-0 RatchetRatchet
-
1-5307-05007-0 Spring WasherSpring Washer
-
1-6307-05021-0 Spring coverSpring cover
-
1-7307-05012-0 Return SpringReturn Spring
-
1-8307-05006-0 Friction PlateFriction Plate
-
1-9307-05027-0 Thrust washerThrust washer
-
2309-05901-1 Starter pulleyStarter pulley
-
3910121-0612 BoltBolt
-
4910421-0612 BoltBolt
-
5309-05028-0 Rewinf,starter padRewinf,starter pad
