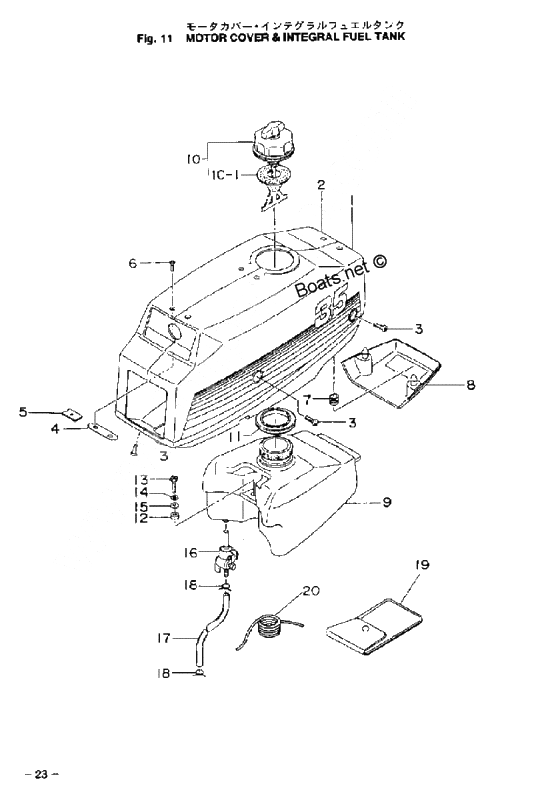

Motor cover & integral fuel tank для Tohatsu M3.5B - 2002 года выпуска
-
№АртикулНазвание
-
1369-62103-0 Винт струбциныВинт струбцины
-
1309-62111-2 Stern bracket
Blue, -11516Stern bracket
Blue, -11516 -
1309S62111-4 Stern bracket
Gray, Not Interchangeable, 11517-Stern bracket
Gray, Not Interchangeable, 11517- -
1369-06820-0 Safety switch assySafety switch assy
-
1309S67004-5 Motor cover, left (w/decal)
UniqueMotor cover, left (w/decal)
Unique -
1309-70021-3 Gasket, Fuel Tank CapGasket, Fuel Tank Cap
-
1353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
2353-72540-0 Spark testerSpark tester
-
23F0S67003-5 Motor cover, right (w/decal)
Gray, Not Interchangeable, 11517-Motor cover, right (w/decal)
Gray, Not Interchangeable, 11517- -
2307-62102-1 Handle, clamp screw
Blue, -11516Handle, clamp screw
Blue, -11516 -
2307S62102-1 Handle, clamp screw
Gray, Not Interchangeable, 11517-Handle, clamp screw
Gray, Not Interchangeable, 11517- -
2309-62115-1 Bolt, stern bracketBolt, stern bracket
-
23F0S67003-6 Motor cover right (w/decal)
UniqueMotor cover right (w/decal)
Unique -
3921503-0612 Stud BoltStud Bolt
-
3386-72323-0 Touch-up paint (metalic cobalt blue)Touch-up paint (metalic cobalt blue)
-
3910103-0612 New partNew part
-
33C8-62104-0 Rivet 3-22Rivet 3-22
-
4309-67006-0 Set plate motor coverSet plate motor cover
-
4921503-0616 Stud BoltStud Bolt
-
4307-62116-0 Washer, stern bracketWasher, stern bracket
-
5309-62212-1 Thrust supporter
Blue, -11516Thrust supporter
Blue, -11516 -
5309-62212-2 Thrust supporter
Gray, Not Interchangeable, 11517-Thrust supporter
Gray, Not Interchangeable, 11517- -
53F0-64111-0 Test PropellerTest Propeller
-
5309-67007-0 Nut motor cover set plateNut motor cover set plate
-
5309-67006-0 Set plate motor coverSet plate motor cover
-
6309-62118-0 Distance piece bracketDistance piece bracket
-
6921603-0510 Stud BoltStud Bolt
-
6309-67007-0 Nut motor cover set plateNut motor cover set plate
-
7930103-0600 NutNut
-
7307-67005-0 Grommet plug cap coverGrommet plug cap cover
-
7921603-0510 Stud BoltStud Bolt
-
8307-67005-0 Grommet plug cap coverGrommet plug cap cover
-
8940-13060-0 WasherWasher
-
8309S06927-1 Cover plug cap
SGCover plug cap
SG -
9309-06927-1 Cover, plug cap
Blue, -11516Cover, plug cap
Blue, -11516 -
9309-62121-0 Thrust RodThrust Rod
-
9309-70010-0 Fuel tankFuel tank
-
10309-70020-1 Fuel tank capFuel tank cap
-
10309-70010-0 Fuel tankFuel tank
-
10-1309-70021-3 Gasket, Fuel Tank CapGasket, Fuel Tank Cap
-
11369-62100-0 Clamp screw assy
Blue, -11516Clamp screw assy
Blue, -11516 -
11309-70036-0 Seal rubber fuel tankSeal rubber fuel tank
-
11309-70020-1 Fuel tank capFuel tank cap
-
12309-70036-0 Seal rubber fuel tankSeal rubber fuel tank
-
12309-70015-0 Spacer 7.2-10-6Spacer 7.2-10-6
-
12332-62101-0 Pad clamp screwPad clamp screw
-
13309-62391-0 Swivel bracket a
Blue, -11516Swivel bracket a
Blue, -11516 -
13309-70015-0 Spacer 7.2-10-6Spacer 7.2-10-6
-
13N09-62391-0 Swivel bracket assy a
Gray, Not Interchangeable, 11517-Swivel bracket assy a
Gray, Not Interchangeable, 11517- -
13910421-0620 BoltBolt
-
14910-4D062-0 BoltBolt
-
14309-62392-0 Swivel bracket b
Blue, -11516Swivel bracket b
Blue, -11516 -
14N09-62392-0 Swivel bracket assy b
Gray, Not Interchangeable, 11517-Swivel bracket assy b
Gray, Not Interchangeable, 11517- -
14941322-0600 Spring WasherSpring Washer
-
15309-70016-0 WasherWasher
-
15941-3U060-0 Spring WasherSpring Washer
-
16309-70011-0 New partNew part
-
16309-70016-0 WasherWasher
-
16309-62321-1 Pivot bushingPivot bushing
-
17309-70011-0 New partNew part
-
17309-62442-0 Steering adjust screw
Blue, -11516Steering adjust screw
Blue, -11516 -
17309S62442-1 Steering adjust screw
Gray, Not Interchangeable, 11517-Steering adjust screw
Gray, Not Interchangeable, 11517- -
18309-62441-1 Friction PieceFriction Piece
-
18338-02215-0 ClipClip
-
189810-5-0250 Fuel pipeFuel pipe
-
19338-02215-0 ClipClip
-
19309-62446-0 Steering adjust springSteering adjust spring
-
19309-72100-0 Tool assyTool assy
-
20309-64122-2 New partNew part
-
20312-72201-0 Safety RopeSafety Rope
-
21951503-0435 New partNew part
-
21309-62464-0 Tilt StopperTilt Stopper
-
22309-72100-0 Tool assyTool assy
-
22309-62463-0 Knob Tilt StopperKnob Tilt Stopper
