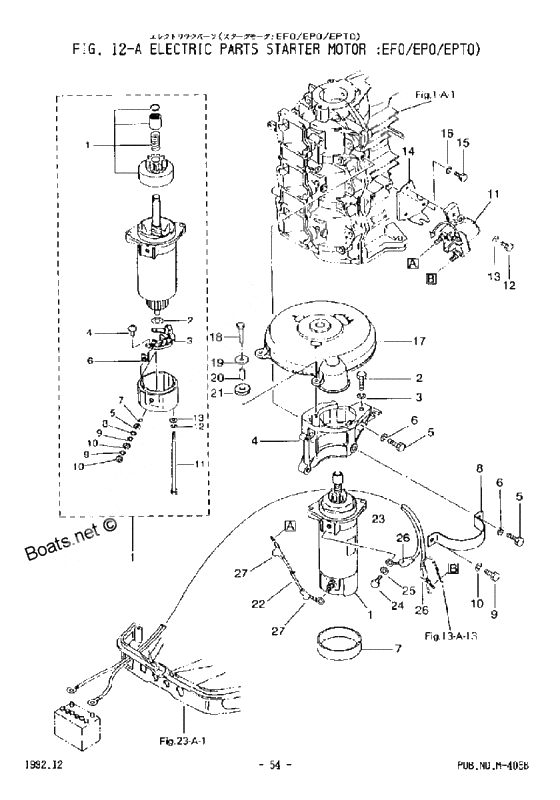

Electric parts starter motor efo-fpo-epto для Tohatsu M40D - 2002 года выпуска
-
№АртикулНазвание
-
00910114-0625 Bolt
NS40D,NS50D EPO/EPTO ONLYBolt
NS40D,NS50D EPO/EPTO ONLY -
00910103-6820 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
00910103-6612 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
003C8-76010-1 Starter Motor Ass'y
NS40D,NS50DStarter Motor Ass'y
NS40D,NS50D -
00332-66308-0 Washer, fuel tank
NS40D,NS50D EPO/EPTO ONLYWasher, fuel tank
NS40D,NS50D EPO/EPTO ONLY -
00346-76040-0 Starter Solenoid
NS40D,NS50DStarter Solenoid
NS40D,NS50D -
003A3-76145-0 Cap Starter Terminal
NS40D,NS50DCap Starter Terminal
NS40D,NS50D -
00910114-0825 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
00353-76079-0 Collar 6.2-9-9.3
NS40D,NS50D EPO/EPTO ONLYCollar 6.2-9-9.3
NS40D,NS50D EPO/EPTO ONLY -
00910103-0616 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
003B7-76145-0 Terminal Cap
NS40D,NS50DTerminal Cap
NS40D,NS50D -
00941303-0800 Spring Washer
NS40D,NS50DSpring Washer
NS40D,NS50D -
003B7-06305-0 Mount Rubber, 9-16-4.3
NS40D,NS50D EPO/EPTO ONLYMount Rubber, 9-16-4.3
NS40D,NS50D EPO/EPTO ONLY -
003C8-71035-0 Plate fuel filter
NS40D,NS50DPlate fuel filter
NS40D,NS50D -
003C8-05101-0 Bracket, Starter Motor
NS40D,NS50DBracket, Starter Motor
NS40D,NS50D -
003C8-76141-0 STARTER CORD
NS40D,NS50DSTARTER CORD
NS40D,NS50D -
00910103-0614 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
003C8-76007-0 Rubber Starter Motor
NS40D,NS50DRubber Starter Motor
NS40D,NS50D -
003A3-76120-0 Battery Cord
NS40D,NS50DBattery Cord
NS40D,NS50D -
003C8-06301-0 Cover ring gear
NS40D,NS50D EPO/EPTO ONLYCover ring gear
NS40D,NS50D EPO/EPTO ONLY -
003C8-76009-0 Band Starter Motor
NS40D,NS50DBand Starter Motor
NS40D,NS50D -
003C8-76120-0 Battery Cord
NS40D,NS50DBattery Cord
NS40D,NS50D -
013C8-76015-0 Pinion Ass'y
NS40D,NS50DPinion Ass'y
NS40D,NS50D -
023C8-75015-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
033C8-75014-0 Brush Holder Ass'y
NS40D,NS50DBrush Holder Ass'y
NS40D,NS50D -
04921521-6410 Stud Bolt
NS40D,NS50DStud Bolt
NS40D,NS50D -
053C8-75016-0 Bushing
NS40D,NS50DBushing
NS40D,NS50D -
063C8-75017-0 Bushing
NS40D,NS50DBushing
NS40D,NS50D -
073C8-75018-0 O-Ring
NS40D,NS50DO-Ring
NS40D,NS50D -
08940-13060-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
09941303-0600 New part
NS40D,NS50DNew part
NS40D,NS50D -
10930203-0600 Nut
NS40D,NS50DNut
NS40D,NS50D -
113C8-75019-0 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
12941303-0600 New part
NS40D,NS50DNew part
NS40D,NS50D -
13940103-0500 Washer
NS40D,NS50DWasher
NS40D,NS50D
