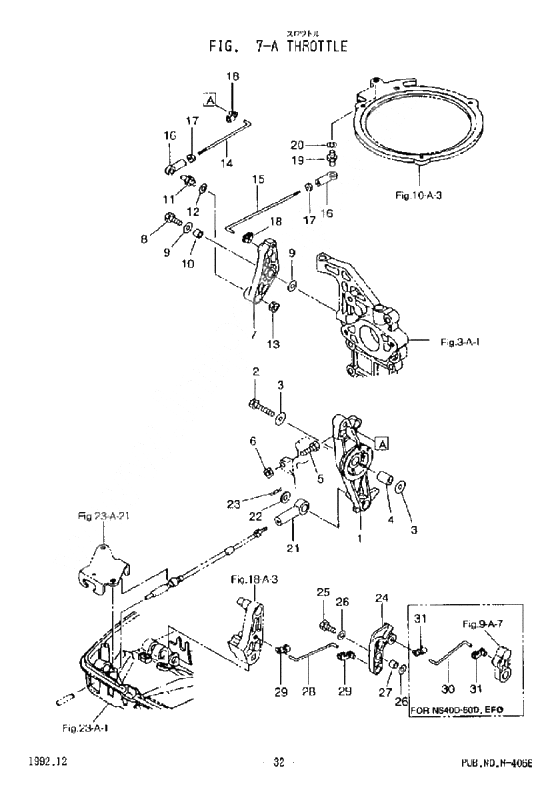

Throttle для Tohatsu M40D - 2002 года выпуска
-
№АртикулНазвание
-
003C8-63716-0 L-link 5-88
NS40D,NS50DL-link 5-88
NS40D,NS50D -
003E3-63718-0 Throttle Cam
NS40DThrottle Cam
NS40D -
00353-83719-0 Washer
NS40D,NS50D FOR EPO. EPTOWasher
NS40D,NS50D FOR EPO. EPTO -
003C8-63711-0 Advancer Arm
NS40D,NS50DAdvancer Arm
NS40D,NS50D -
003C8-63715-0 L-link 5-118
NS40DL-link 5-118
NS40D -
00910103-0620 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
00951603-0800 R-Pin
NS40D,NS50D FOR EPO. EPTOR-Pin
NS40D,NS50D FOR EPO. EPTO -
00910-13063-5 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
003E3-63715-0 L-link 5-112
NS50DL-link 5-112
NS50D -
00332-66308-0 Washer, fuel tank
NS40D,NS50DWasher, fuel tank
NS40D,NS50D -
003C8-05213-0 Arm Throttle Stop
NS40D,NS50DArm Throttle Stop
NS40D,NS50D -
00346-67115-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
003B7-05243-0 New part
NS40D,NS50DNew part
NS40D,NS50D -
00353-76079-0 Collar 6.2-9-9.3
NS40D,NS50DCollar 6.2-9-9.3
NS40D,NS50D -
00910114-0625 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
003C8-63732-0 Collar 6.2-12-17
NS40D,NS50DCollar 6.2-12-17
NS40D,NS50D -
003C8-63733-0 Rod Snap 5-3
NS40D,NS50DRod Snap 5-3
NS40D,NS50D -
00346-05228-0 New part
NS40D,NS50DNew part
NS40D,NS50D -
003C8-05221-0 S-link 3.5-56
NS40D,NS50DS-link 3.5-56
NS40D,NS50D -
00930103-0600 Nut
NS40D,NS50DNut
NS40D,NS50D -
00941303-0600 New part
NS40D,NS50DNew part
NS40D,NS50D -
00940-13060-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
003C8-05223-0 Rod Snap B 3.5-4
NS40D,NS50DRod Snap B 3.5-4
NS40D,NS50D -
003C8-63718-0 Throttle Cam
NS40DThrottle Cam
NS40D -
003B7-83715-0 Cable Joint
NS40D,NS50D FOR EPO. EPTOCable Joint
NS40D,NS50D FOR EPO. EPTO
