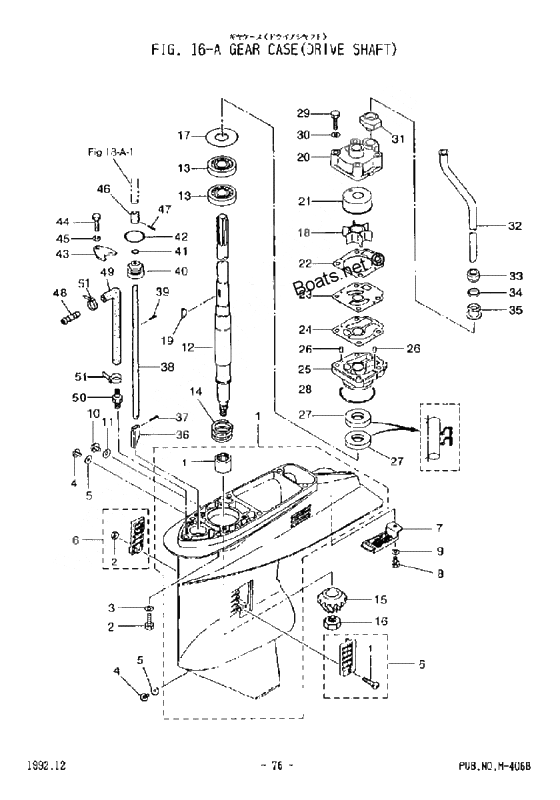

Gear case (drive shaft) для Tohatsu M40D - 2002 года выпуска
-
№АртикулНазвание
-
003C8-60204-0 Sub Water Strainer
NS40D,NS50DSub Water Strainer
NS40D,NS50D -
00951407-0312 Spring Washer
NS40D,NS50DSpring Washer
NS40D,NS50D -
00332-65022-0 Key, pump impeller
NS40D,NS50DKey, pump impeller
NS40D,NS50D -
009808-4-0680 Pipe a, speedometer (s)
NS40D,NS50D FOR EPTO FOR TRANSUM SPipe a, speedometer (s)
NS40D,NS50D FOR EPTO FOR TRANSUM S -
00940-13080-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
003C8-65110-0 Water Pipe L
NS40D,NS50DWater Pipe L
NS40D,NS50D -
003C8-64303-0 Drive Shaft UL
NS40D,NS50DDrive Shaft UL
NS40D,NS50D -
00353-66024-0 Stopper
NS40D,NS50DStopper
NS40D,NS50D -
00334-65012-0 Стопор
NS40D,NS50DСтопор
NS40D,NS50D -
003C8-60000-0 Gear case ass'y
NS40D,NS50D FOR TRANSUM S-BLUEGear case ass'y
NS40D,NS50D FOR TRANSUM S-BLUE -
00910103-0616 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
003C8-66012-0 Cam rod s
NS40D,NS50DCam rod s
NS40D,NS50D -
003C8-65016-0 Pump case upper
NS40D,NS50DPump case upper
NS40D,NS50D -
009808-4-0800 Rubber pipe (1 ea.=1 meter)
NS40D,NS50D FOR EPTO FOR TRANSUM LRubber pipe (1 ea.=1 meter)
NS40D,NS50D FOR EPTO FOR TRANSUM L -
98AB-4-1000 Rubber pipe (1 ea.=1 meter)Rubber pipe (1 ea.=1 meter)
-
00332-60005-0 Oil plug
NS40D,NS50DOil plug
NS40D,NS50D -
003C8-65120-0 Water Pipe UL
NS40D,NS50DWater Pipe UL
NS40D,NS50D -
003C8-60213-0 Ball Bearing 6304
NS40D,NS50DBall Bearing 6304
NS40D,NS50D -
00910121-0612 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
003C8-60223-0 Packing 17-33-6
NS40D,NS50DPacking 17-33-6
NS40D,NS50D -
003C8S60000-0 Gear case ass'y
NS40D,NS50D FOR TRANSUM S-GRAYGear case ass'y
NS40D,NS50D FOR TRANSUM S-GRAY -
00940-13060-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
003C8-66013-0 Cam Rod L
NS40D,NS50DCam Rod L
NS40D,NS50D -
003C8-65011-0 Liner, Water Pump Case
NS40D,NS50DLiner, Water Pump Case
NS40D,NS50D -
009808-4-0920 Rubber pipe (1 ea.=1 meter)
NS40D,NS50D FOR EPTO FOR TRANSUM XLRubber pipe (1 ea.=1 meter)
NS40D,NS50D FOR EPTO FOR TRANSUM XL -
98AB-4-1000 Rubber pipe (1 ea.=1 meter)Rubber pipe (1 ea.=1 meter)
-
00332-60006-0 Gasket (8.1x15.1)
NS40D,NS50DGasket (8.1x15.1)
NS40D,NS50D -
00345-65206-0 Upper Seal Rubber Water Pipe
NS40D,NS50DUpper Seal Rubber Water Pipe
NS40D,NS50D -
003C8-64327-0 Spring Drive Shaft
NS40D,NS50DSpring Drive Shaft
NS40D,NS50D -
00941303-0600 New part
NS40D,NS50DNew part
NS40D,NS50D -
00345-65015-0 O-Ring
NS40D,NS50DO-Ring
NS40D,NS50D -
003C8-60090-0 Gear case ass'y
NS40D,NS50D-BLUE-W/PIPE F/TRANSUMGear case ass'y
NS40D,NS50D-BLUE-W/PIPE F/TRANSUM -
003B7-60015-0 Water Plug
NS40D,NS50DWater Plug
NS40D,NS50D -
3B7-60015-1 Water PlugWater Plug
-
003C8-66014-0 Cam Rod UL
NS40D,NS50DCam Rod UL
NS40D,NS50D -
003C8-65018-0 Gasket, pump case
NS40D,NS50DGasket, pump case
NS40D,NS50D -
003C7-60018-0 Золотник
NS40D,NS50D FOR EPTOЗолотник
NS40D,NS50D FOR EPTO -
003C8-60235-0 Washer strainer set
NS40D,NS50DWasher strainer set
NS40D,NS50D -
00345-65205-0 Collar, 18-20-4.5
NS40D,NS50DCollar, 18-20-4.5
NS40D,NS50D -
003C8-64020-0 Bevel Gear B
NS40D,NS50DBevel Gear B
NS40D,NS50D -
003C8-66241-0 Joint Shift Rod
NS40D,NS50DJoint Shift Rod
NS40D,NS50D -
00910-13085-5 Bolt b
NS40D,NS50DBolt b
NS40D,NS50D -
003C8S60090-0 Gear case ass'y
NS40D,NS50D-GRAY-W/PIPE F/TRANSUMGear case ass'y
NS40D,NS50D-GRAY-W/PIPE F/TRANSUM -
003B7-60016-0 O-Ring
NS40D,NS50DO-Ring
NS40D,NS50D -
003C8-66031-1 Bushing Cam Rod
NS40D,NS50DBushing Cam Rod
NS40D,NS50D -
003C8-65025-0 GUIDE PLATE,PUMP
NS40D,NS50DGUIDE PLATE,PUMP
NS40D,NS50D -
00353-84398-0 Band Lead Wire
NS40D,NS50D FOR EPTOBand Lead Wire
NS40D,NS50D FOR EPTO -
00346-65204-0 Lock Rubber Water Pipe
NS40D,NS50DLock Rubber Water Pipe
NS40D,NS50D -
00345-64023-0 New part
NS40D,NS50D AR T=0.1,0.3,0.5New part
NS40D,NS50D AR T=0.1,0.3,0.5 -
00951-43031-2 Screw
NS40D,NS50DScrew
NS40D,NS50D -
003C8-65014-0 Lower Seal Rubber Water Pipe
NS40D,NS50DLower Seal Rubber Water Pipe
NS40D,NS50D -
003C8-64301-0 Drive Shaft S
NS40D,NS50DDrive Shaft S
NS40D,NS50D -
00332-66021-0 O-Ring
NS40D,NS50DO-Ring
NS40D,NS50D -
003C8-65029-0 Gasket, pump guide plate
NS40D,NS50DGasket, pump guide plate
NS40D,NS50D -
003C8-66011-0 Clutch Cam
NS40D,NS50DClutch Cam
NS40D,NS50D -
003C8-65021-0 Inpeller, water pump
NS40D,NS50DInpeller, water pump
NS40D,NS50D -
003C7-60017-0 Nipple 6-1/8
NS40D,NS50D FOR EPTONipple 6-1/8
NS40D,NS50D FOR EPTO -
00916103-0835 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
003C8-65100-0 Water pipe s
NS40D,NS50DWater pipe s
NS40D,NS50D -
003C8-64302-0 Drive shaft l
NS40D,NS50DDrive shaft l
NS40D,NS50D -
003C8-66032-0 O-Ring
NS40D,NS50DO-Ring
NS40D,NS50D -
003C8-65017-0 Pump Case Lower
NS40D,NS50DPump Case Lower
NS40D,NS50D -
01921503-0438 Stud Bolt
NS40D,NS50DStud Bolt
NS40D,NS50D -
01345-60211-0 Needle Bearing 22-30-30
NS40D,NS50DNeedle Bearing 22-30-30
NS40D,NS50D -
02930403-0400 Nylon Nut
NS40D,NS50DNylon Nut
NS40D,NS50D
