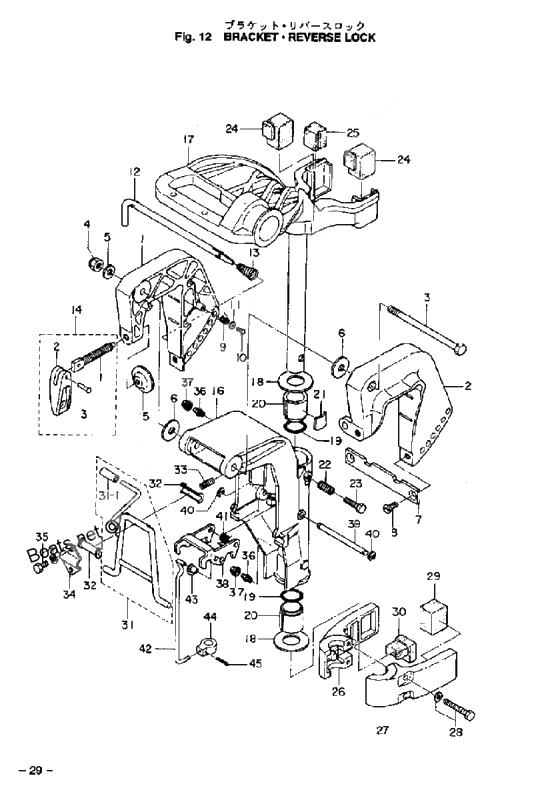

Bracket & reverse lock для Tohatsu M6B - 2002 года выпуска
-
№АртикулНазвание
-
1369S62112-3 Stern bracket rStern bracket r
-
2369S62113-2 Stern bracket lStern bracket l
-
3309-62115-1 Bolt, stern bracketBolt, stern bracket
-
5940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
6307-62116-0 Washer, stern bracketWasher, stern bracket
-
73B2-62118-0 Distance Plate, BracketDistance Plate, Bracket
-
8921603-0612 Stud BoltStud Bolt
-
9369-62146-1 Spring Stern BracketSpring Stern Bracket
-
11369-62147-0 WasherWasher
-
12350-62121-0 Thrust RodThrust Rod
-
13369-62122-1 Spring, thrust rodSpring, thrust rod
-
14369S62100-1 Clamp Screw Ass'yClamp Screw Ass'y
-
14-1369-62103-0 Винт струбциныВинт струбцины
-
14-2307S62102-1 Handle, clamp screwHandle, clamp screw
-
14-33C8-62104-0 Rivet 3-22Rivet 3-22
-
15332-62101-0 Pad clamp screwPad clamp screw
-
163B2S62310-0 Поворотный кронштейнПоворотный кронштейн
-
173B2S62010-0 Steering shaft ass'ySteering shaft ass'y
-
183B2-62422-0 Thrust Plate
тИЕ22 - тИЕ44 - 2mmThrust Plate
тИЕ22 - тИЕ44 - 2mm -
193B2-62415-0 O-RingO-Ring
-
203B2-62417-0 Bushing,steering shaftBushing,steering shaft
-
21345-62441-0 Friction PlateFriction Plate
-
22346-62421-0 Spring, friction plateSpring, friction plate
-
23910103-0830 New partNew part
-
243B2-61301-0 Mount rubber, upperMount rubber, upper
-
253B2-61337-0 Damper RubberDamper Rubber
-
263B2S61402-0 Mount bracket rMount bracket r
-
273B2S61401-0 Mount bracket lMount bracket l
-
293B2-61302-0 Mount rubber lower,sideMount rubber lower,side
-
303B2-61336-0 Mount rubber lower, frontMount rubber lower, front
-
313B2S62431-3 Tilt Stopper Ass'y
6B #, 8B #Tilt Stopper Ass'y
6B #, 8B # -
31-1369-62433-1 Grip Tilt StopperGrip Tilt Stopper
-
32393-62437-0 Bushing Tilt Stopper
6B #, 8B #Bushing Tilt Stopper
6B #, 8B # -
33369-66112-1 Spring Shift Lever StopperSpring Shift Lever Stopper
-
34369-62439-0 Set plate, tilt stopperSet plate, tilt stopper
-
35910103-6612 BoltBolt
-
36344-67177-0 МасленкаМасленка
-
37344-67178-0 Cap grease nippleCap grease nipple
-
383B2-66322-0 Reverse lock bReverse lock b
-
393B2-66321-0 Shaft Reverse LockShaft Reverse Lock
-
40945303-0500 E-RingE-Ring
-
413B2-66315-0 Spring reverse lockSpring reverse lock
-
423B2-66305-0 Link reverse lockLink reverse lock
-
43345-05224-0 Rod snap,5-2.5Rod snap,5-2.5
-
443B2-66302-0 Joint reverse lockJoint reverse lock
