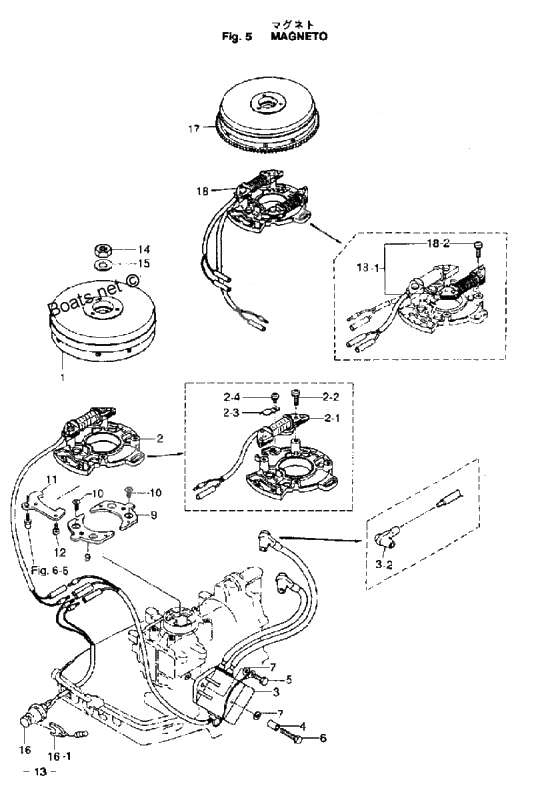

Magneto для Tohatsu M6B - 2002 года выпуска
-
№АртикулНазвание
-
13B2-06101-0 Flywheel cup
for MF TypeFlywheel cup
for MF Type -
23B2-06102-1 Coil plate ass'y
8B #40401- for MF TypeCoil plate ass'y
8B #40401- for MF Type -
2-13B2-06120-0 Exciter coilExciter coil
-
2-2921521-6625 Stud BoltStud Bolt
-
2-33B2-06135-0 Holder magneto cordHolder magneto cord
-
2-4921521-6406 Stud BoltStud Bolt
-
33B2-06170-0 C.d. unit (with resistance)C.d. unit (with resistance)
-
3-23C7-06921-0 Prug cap (with waterproof registance)Prug cap (with waterproof registance)
-
43B2-06162-0 Spacer 6.2-9-27Spacer 6.2-9-27
-
5910114-0620 BoltBolt
-
6910114-0645 BoltBolt
-
7940103-0600 WasherWasher
-
93B2-63724-0 Set plate lowerSet plate lower
-
10921603-0612 Stud Bolt
or 921621-0612Stud Bolt
or 921621-0612 -
113B2-05233-1 Stopper coil plate
8B #40401Stopper coil plate
8B #40401 -
12921503-6510 Stud BoltStud Bolt
-
14369-00132-0 Nut MagnetoNut Magneto
-
15940121-1200 WasherWasher
-
16398-06830-0 Safety Switch Ass'ySafety Switch Ass'y
-
16-1353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
173B2-06194-1 Flywheel cup
8B #41351- for EF/EP TypeFlywheel cup
8B #41351- for EF/EP Type -
183B2-06103-2 Coil plate ass'y (w/alternator)
8B #40401- for EF/EP TypeCoil plate ass'y (w/alternator)
8B #40401- for EF/EP Type -
18-13B2-06123-1 Alternator setAlternator set
