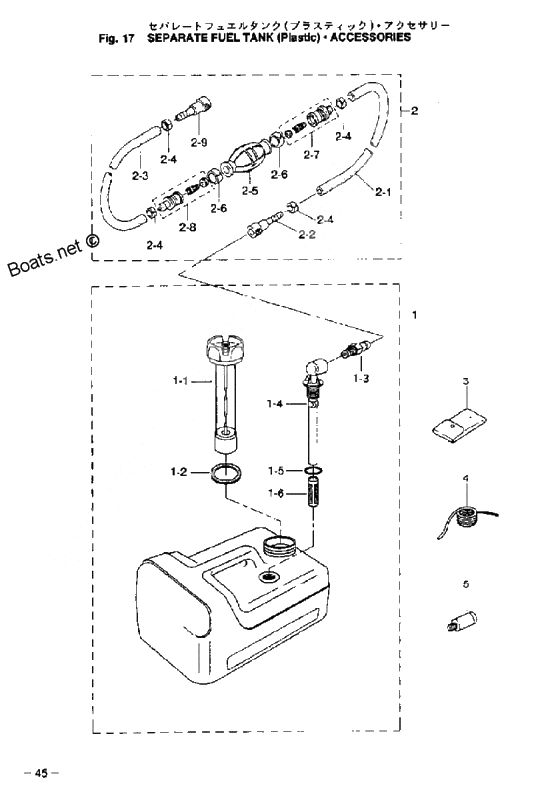

Fuel tank (remote) для Tohatsu M6B - 2002 года выпуска
-
№АртикулНазвание
-
13B2-70167-0 New part
UniqueNew part
Unique -
1-13B2-70050-0 Fuel gauge vented cap ass'yFuel gauge vented cap ass'y
-
1-23C7-70021-0 Cap gasketCap gasket
-
1-33E0-70270-0 New partNew part
-
1-43B2-70155-0 Fuel PickupFuel Pickup
-
1-53C7-70199-0 O-RingO-Ring
-
1-63C7-70113-0 FilterFilter
-
23B7-70200-3 New partNew part
-
2-23B2-70281-0 New partNew part
-
2-4332-70201-0 ClampClamp
-
2-53C7-70211-0 Primer BulbPrimer Bulb
-
2-63C7-70217-0 ClampClamp
-
2-73C7-70220-1 Joint A Ass'y InJoint A Ass'y In
-
2-83C7-70224-1 Joint A Ass'y OutJoint A Ass'y Out
-
2-93B2-70250-1 New partNew part
-
3369-72100-0 TOOL ASS'YTOOL ASS'Y
-
4312-72201-0 Safety RopeSafety Rope
-
5336-60007-0 New partNew part
Все узлы модели:
- Bracket & reverse lock
- Carburetor
- Cylinder - crank case assembly
- Drive shaft housing - gear case
- Electric starter
- • Fuel tank (remote)
- Gauges, linkage, & maintenance
- Gear shift
- Inlet - reed valve
- Magneto
- Motor cover
- Piston & crank shaft
- Recoil starter - starter lock
- Remote control
- Steering handle (mf-ef type)
- Throttle mechanism
- Transmission - water pump
