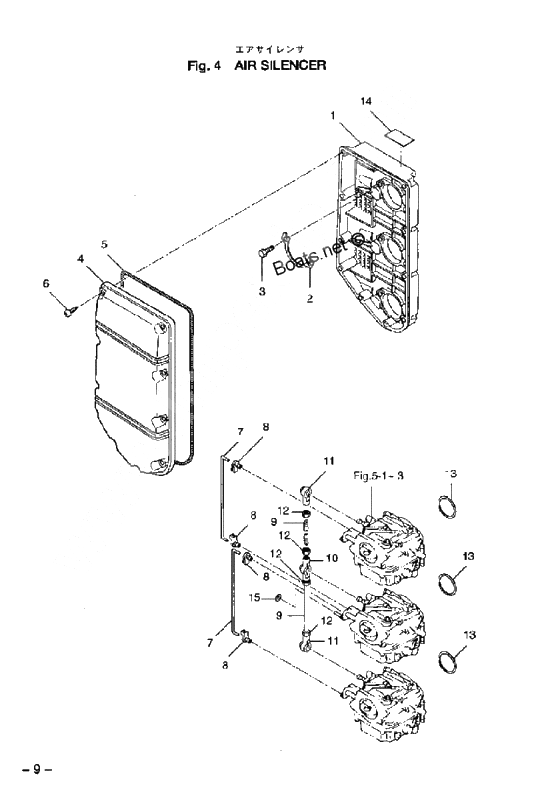

Air silencer для Tohatsu M70B - 2002 года выпуска
-
№АртикулНазвание
-
13F3-02411-0 Air SilencerAir Silencer
-
23C8-02417-0 Lock plate air silencerLock plate air silencer
-
33C8-02420-0 Bolt 5-16 PrecoatedBolt 5-16 Precoated
-
43F3-02415-0 Cover air silencerCover air silencer
-
53F3-02418-0 Seal rubber air silencerSeal rubber air silencer
-
63F3-02423-0 Screw 5-30Screw 5-30
-
73F3-67191-0 C-link 3-97C-link 3-97
-
8346-67196-1 Rod Snap 3-bRod Snap 3-b
-
93F3-63709-0 Rod 5-77Rod 5-77
-
103B7-05229-0 Cap b, ball jointCap b, ball joint
-
133F3-02012-0 O-RingO-Ring
-
143F3-72015-0 Label chokeLabel choke
-
153C7-03271-0 O-RingO-Ring
