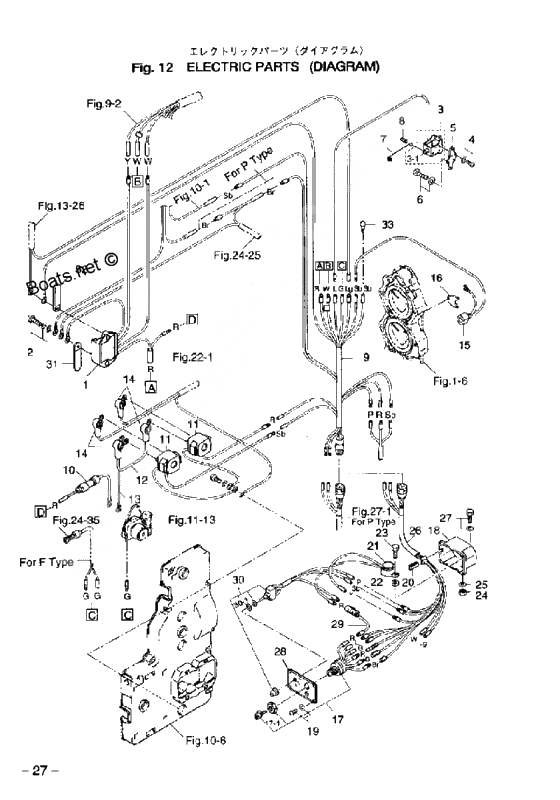

Electric parts (diagram) для Tohatsu M70B - 2002 года выпуска
-
№АртикулНазвание
-
00940-13060-0 Washer
NS60B,NS70BWasher
NS60B,NS70B -
00353-72570-0 New part
NS60B,NS70B-FOR EFTONew part
NS60B,NS70B-FOR EFTO -
003F3-76172-0 Over-heat sensor ass'y
NS60B,NS70BOver-heat sensor ass'y
NS60B,NS70B -
00941303-0500 Spring Washer
NS60B,NS70BSpring Washer
NS60B,NS70B -
003F3-76110-0 Cord ass'y a
NS60B,NS70BCord ass'y a
NS60B,NS70B -
003B7-76032-1 Switch box
NS60B,NS70B-FOR EFTO/EPTO-BLUESwitch box
NS60B,NS70B-FOR EFTO/EPTO-BLUE -
00361-76050-0 Choke Solenoid
NS60B,NS70BChoke Solenoid
NS60B,NS70B -
00353-66024-0 Stopper
NS60B,NS70BStopper
NS60B,NS70B -
003B7-76119-0 Cord ass'y c
NS60B,NS70BCord ass'y c
NS60B,NS70B -
003B7-76062-0 Fuse Wire
NS60B,NS70BFuse Wire
NS60B,NS70B -
00921503-5510 Stud Bolt
NS60B,NS70B-FOR EFTO/EPTOStud Bolt
NS60B,NS70B-FOR EFTO/EPTO -
00910103-6616 Bolt
NS60B,NS70BBolt
NS60B,NS70B -
00309-06972-0 Clamp,6.5-47.5P
NS60B,NS70BClamp,6.5-47.5P
NS60B,NS70B -
00385-76020-1 Main Switch Ass'y
NS60B,NS70B-FOR EFTO/EPTOMain Switch Ass'y
NS60B,NS70B-FOR EFTO/EPTO -
00910114-0625 Bolt
NS60B,NS70B-FOR EFTO/EPTOBolt
NS60B,NS70B-FOR EFTO/EPTO -
003C7-72590-1 Solenoid switch ass'y ptt
NS60B,NS70B-FOR EFTO/EPTOSolenoid switch ass'y ptt
NS60B,NS70B-FOR EFTO/EPTO -
00940-13050-0 Washer
NS60B,NS70B-FOR EFTO/EPTOWasher
NS60B,NS70B-FOR EFTO/EPTO -
003C8-76055-0 Bracket choke solenoid
NS60B,NS70BBracket choke solenoid
NS60B,NS70B -
003C8-76060-0 Rectifier complete
NS60B,NS70BRectifier complete
NS60B,NS70B -
003B7-76201-0 Panel, main switch(for ptt type)
NS60B,NS70B-FOR EFTOPanel, main switch(for ptt type)
NS60B,NS70B-FOR EFTO -
003C8-72582-0 Cord a solenoid switch
NS60B,NS70B-FOR EFTO/EPTOCord a solenoid switch
NS60B,NS70B-FOR EFTO/EPTO -
003B7-76171-0 Over-heat buzzer b
NS60B,NS70B-FOR EFTO/EPTOOver-heat buzzer b
NS60B,NS70B-FOR EFTO/EPTO -
00910103-0616 Bolt
NS60B,NS70BBolt
NS60B,NS70B -
00921503-7625 Stud Bolt
NS60B,NS70BStud Bolt
NS60B,NS70B -
003B7-76200-0 Panel, main switch
NS60B,NS70B-EFOPanel, main switch
NS60B,NS70B-EFO -
003C7-72582-0 Cord b solenoid switch (l=220)
NS60B,NS70BCord b solenoid switch (l=220)
NS60B,NS70B -
003B7-06305-0 Mount Rubber, 9-16-4.3
NS60B,NS70B-FOR EFTO/EPTOMount Rubber, 9-16-4.3
NS60B,NS70B-FOR EFTO/EPTO -
003F3-76057-0 Hook choke solenoid
NS60B,NS70BHook choke solenoid
NS60B,NS70B -
00941303-0600 New part
NS60B,NS70BNew part
NS60B,NS70B -
00353-72546-0 Assist Cord(Red)
NS60B,NS70B-FOR EFTOAssist Cord(Red)
NS60B,NS70B-FOR EFTO -
003A3-76145-0 Cap Starter Terminal
NS60B,NS70B-FOR EFTO/EPTOCap Starter Terminal
NS60B,NS70B-FOR EFTO/EPTO -
00930103-0500 Nut
NS60B,NS70BNut
NS60B,NS70B -
00951-43031-2 Screw
NS60B,NS70BScrew
NS60B,NS70B -
01151-01642-0 Packing, 12.1-17-0.5
NS60B,NS70B-EFOPacking, 12.1-17-0.5
NS60B,NS70B-EFO -
01353-76203-1 Key main switch (earmark no.301)
NS60B,NS70B-FOR EFTO/EPTO UNIT-SETKey main switch (earmark no.301)
NS60B,NS70B-FOR EFTO/EPTO UNIT-SET -
01353-76203-2 Key main switch (earmark no.302)
NS60B,NS70B-FOR EFTO/EPTO UNIT-SETKey main switch (earmark no.302)
NS60B,NS70B-FOR EFTO/EPTO UNIT-SET -
01353-76203-3 Key Main Switch (earmark No.303)
NS60B,NS70B-FOR EFTO/EPTO UNIT-SETKey Main Switch (earmark No.303)
NS60B,NS70B-FOR EFTO/EPTO UNIT-SET -
13B7-76065-3 Rectifier completeRectifier complete
-
02385-76205-0 Cover main switch key
NS60B,NS70B-FOR EFTO/EPTO UNIT-SETCover main switch key
NS60B,NS70B-FOR EFTO/EPTO UNIT-SET -
2921503-7625 Stud BoltStud Bolt
-
3361-76050-0 Choke SolenoidChoke Solenoid
-
3-1361-76073-0 Plunger,Choke SolenoidPlunger,Choke Solenoid
-
4921503-6406 Stud BoltStud Bolt
-
53C8-76055-0 Bracket choke solenoidBracket choke solenoid
-
6910103-6616 BoltBolt
-
73F3-76057-0 Hook choke solenoidHook choke solenoid
-
8951403-0312 Spring WasherSpring Washer
-
93F3-76110-0 Cord ass'y aCord ass'y a
-
103C7-76062-1 Fuse wire ass'y
FOR PTT TYPEFuse wire ass'y
FOR PTT TYPE -
10353-76062-1 Fuse wire ass'y
FOR G/M TYPEFuse wire ass'y
FOR G/M TYPE -
113C7-72590-1 Solenoid switch ass'y ptt
FOR OLD PTTSolenoid switch ass'y ptt
FOR OLD PTT -
113C8-72580-0 Solenoid switch a, ptt (up)
UP FOR NEW PTTSolenoid switch a, ptt (up)
UP FOR NEW PTT -
113C8-72581-0 Solenoid switch b, ptt (dn)
DN FOR NEW PTTSolenoid switch b, ptt (dn)
DN FOR NEW PTT -
113C8-72583-1 Cord B Solenoid Switch (L=130)
L=130 FOR NEW PTTCord B Solenoid Switch (L=130)
L=130 FOR NEW PTT -
123C8-72582-0 Cord a solenoid switch
FOR OLD PTTCord a solenoid switch
FOR OLD PTT -
133C7-72582-0 Cord b solenoid switch (l=220)
FOR OLD PTTCord b solenoid switch (l=220)
FOR OLD PTT -
143A3-76145-0 Cap Starter Terminal
FOR PTTCap Starter Terminal
FOR PTT -
153F3-76172-0 Over-heat sensor ass'yOver-heat sensor ass'y
-
16353-66024-0 StopperStopper
-
17353-76020-3 Main Switch Ass'y
FOR F TYPEMain Switch Ass'y
FOR F TYPE -
17-13F3-76217-0 Key, main switch
FOR F TYPEKey, main switch
FOR F TYPE -
17-13F3-76218-0 Key, Main Switch (Earmark)
FOR F TYPEKey, Main Switch (Earmark)
FOR F TYPE -
17-13F3-76219-0 Key, Main Switch (Earmark)
FOR F TYPEKey, Main Switch (Earmark)
FOR F TYPE -
183B7-76032-0 Switch box
FOR F TYPESwitch box
FOR F TYPE -
19921503-5510 Stud Bolt
FOR F TYPEStud Bolt
FOR F TYPE -
203B7-76035-0 Grommet, Switch Box
FOR F TYPEGrommet, Switch Box
FOR F TYPE -
213B7-76171-0 Over-heat buzzer b
FOR F TYPEOver-heat buzzer b
FOR F TYPE -
223B7-06305-0 Mount Rubber, 9-16-4.3
FOR F TYPEMount Rubber, 9-16-4.3
FOR F TYPE -
23910103-0525 Bolt
FOR F TYPEBolt
FOR F TYPE -
24930103-0500 Nut
FOR F TYPENut
FOR F TYPE -
25941303-0500 Spring Washer
FOR F TYPESpring Washer
FOR F TYPE -
263B7-76119-0 Cord ass'y c
FOR F TYPECord ass'y c
FOR F TYPE -
27910103-6625 Bolt
FOR F TYPEBolt
FOR F TYPE -
283B7-76201-0 Panel, main switch(for ptt type)
FOR F, PTT TYPEPanel, main switch(for ptt type)
FOR F, PTT TYPE -
283B7-76200-0 Panel, main switch
FOR F TYPEPanel, main switch
FOR F TYPE -
29353-72546-0 Assist Cord(Red)
FOR F, PTT TYPEAssist Cord(Red)
FOR F, PTT TYPE -
31309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
32353-06972-0 ClampClamp
-
333A3-76037-0 Plug B Cable TerminalPlug B Cable Terminal
